Additional 1st Floor Ceiling Heights:
Master Bedroom: 10' Step
Great Room: 2 Story
Each plan set is drawn at 1/4"=1' scale and includes the following drawings:
Front Rendering: A rendering of the front elevation along with general construction notes.
Elevations: Shows the front, sides, and rear, including wall and window heights, exterior materials, soffit heights, roof pitches, etc.

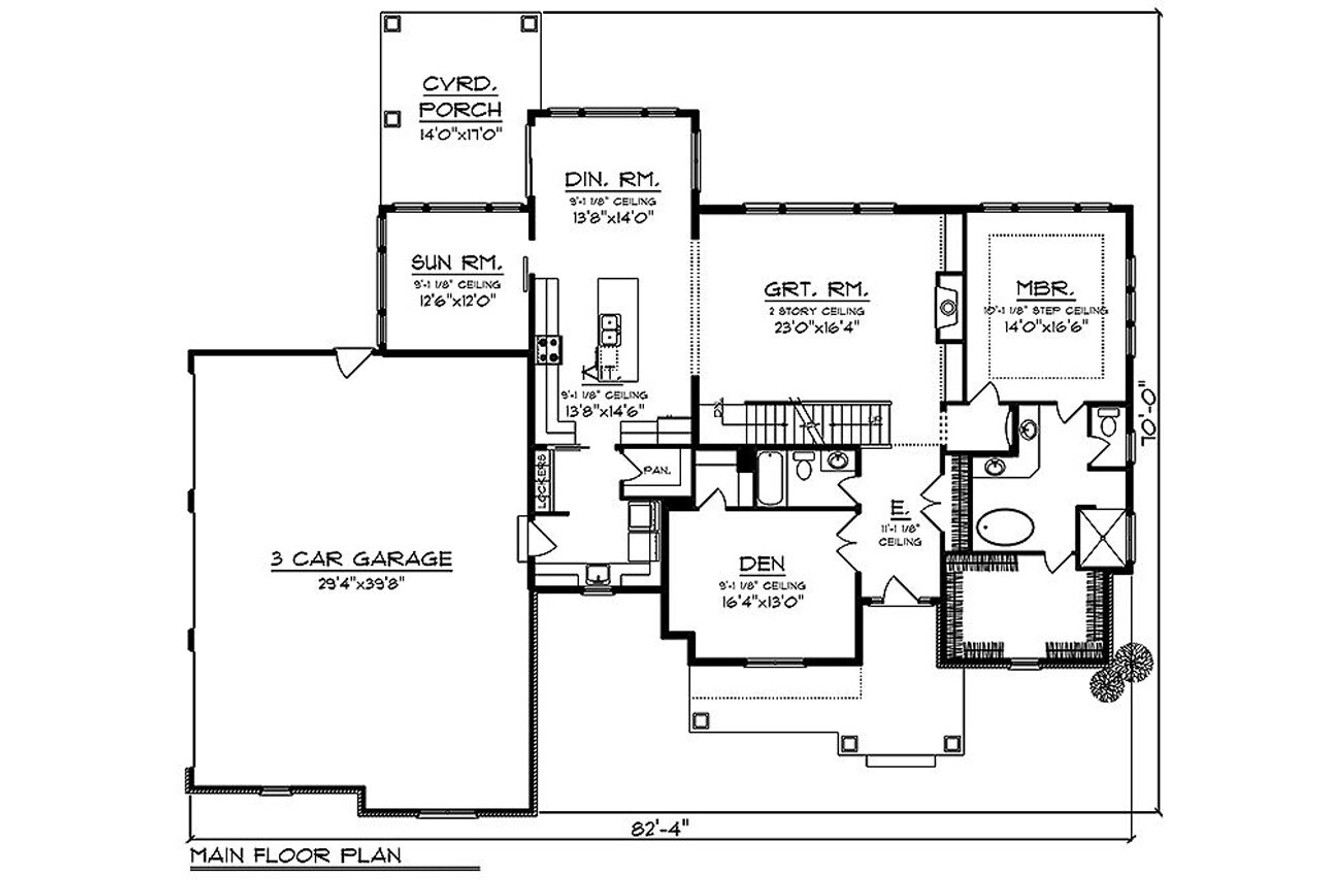

Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, roof, wall, and floor structure from above (if any), ceiling heights, etc.

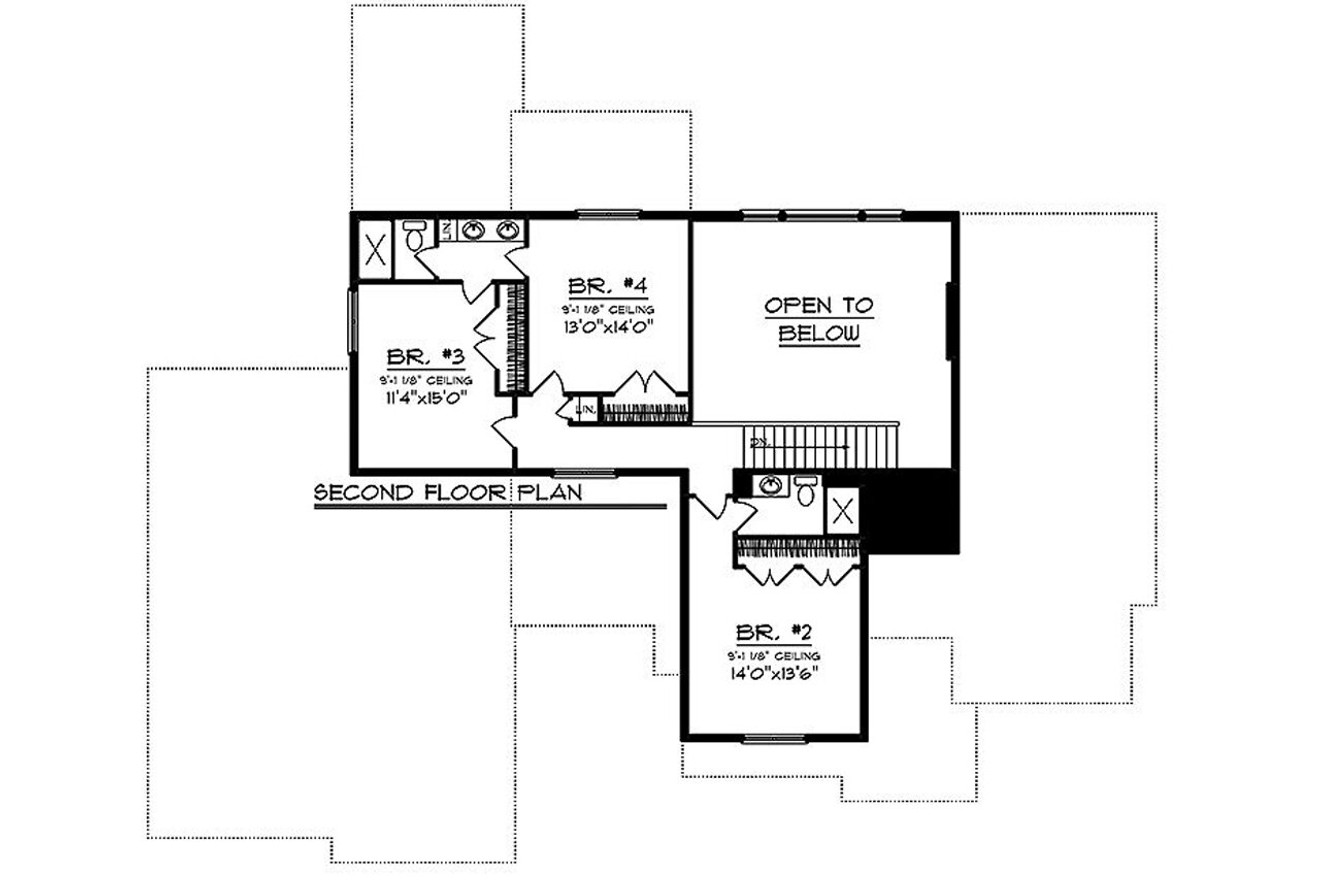

Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor roof structure as well.
Foundation Plan: Shows the location of all concrete walls and footings, beams supporting the floor structure and structure above, and foundation details. If there is a basement, a basement plan is included which shows all basement details.
Roof Plan: Shows roof outlines, lines of bearing walls below, roof framing details, etc.
Section & Details: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation. Stairway, kitchen elevations, and wall section details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
Electrical Plan: A schematic layout of all lighting, switches and electrical outlets drawn at 1/8" = 1'. Electrical general notes are provided as well.
