Working drawing packages usually comprises of the following drawing components:
Cover sheet with rendering and art floor plans.
General notes and specifications.
Site plan at 1/8″=1′-0″ or 1/4″= 1′-0″.
Foundation plan at 1/4″=1′-0″. (Some plans have foundation options, client to specify at time of order.)
Main floor plan at 1/4″=1′-0″.
Second floor plan at 1/4″=1′-0″, if applicable.
Structural floor / roof information indicated either on the floor plans or separate framing plans for complicated designs.
Electrical floor plans.
Minimum of two cross sections at 1/4″=1′-0″.
Details as required.
All four elevations at 1/4″=1′-0″.
Generic detail sheet.
Plans are engineered by a structural engineer, but not stamped or sealed.
Ground snow load 40 psf. (or composite roof live load 32 psf, dead load 10 psf for total roof design load 42 psf)Floor live load 40 psf.
Balcony live load 60 psf and dead load 10 psf for total design load of 70 psf.
Assumed soil bearing capacity 1560 psf.
Electrical fixtures / switches / smoke alarms by location only on floor plans.
Plumbing fixtures by location only on floor plans.
Windows are called out as generic nominal sizes on floor plans, opening directions indicated on elevations.
Items not included with plans:
Interior cabinet elevations.
Situations beyond the scope of these drawings and issues which can be handled locally:
Unusual site conditions, High wind speeds. Seismic, shear walls, holddowns, nailing patterns and Local Energy Code compliance.
New to plan buying?

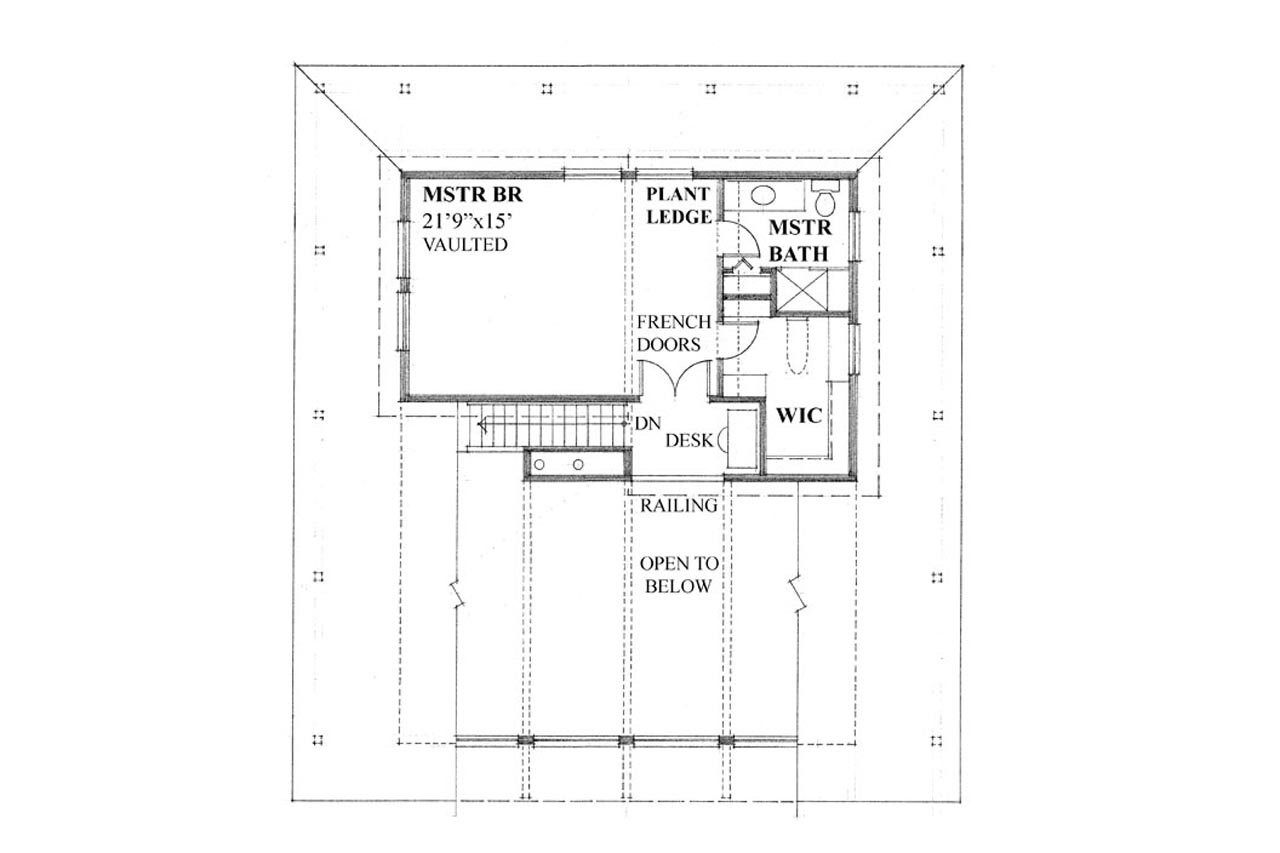

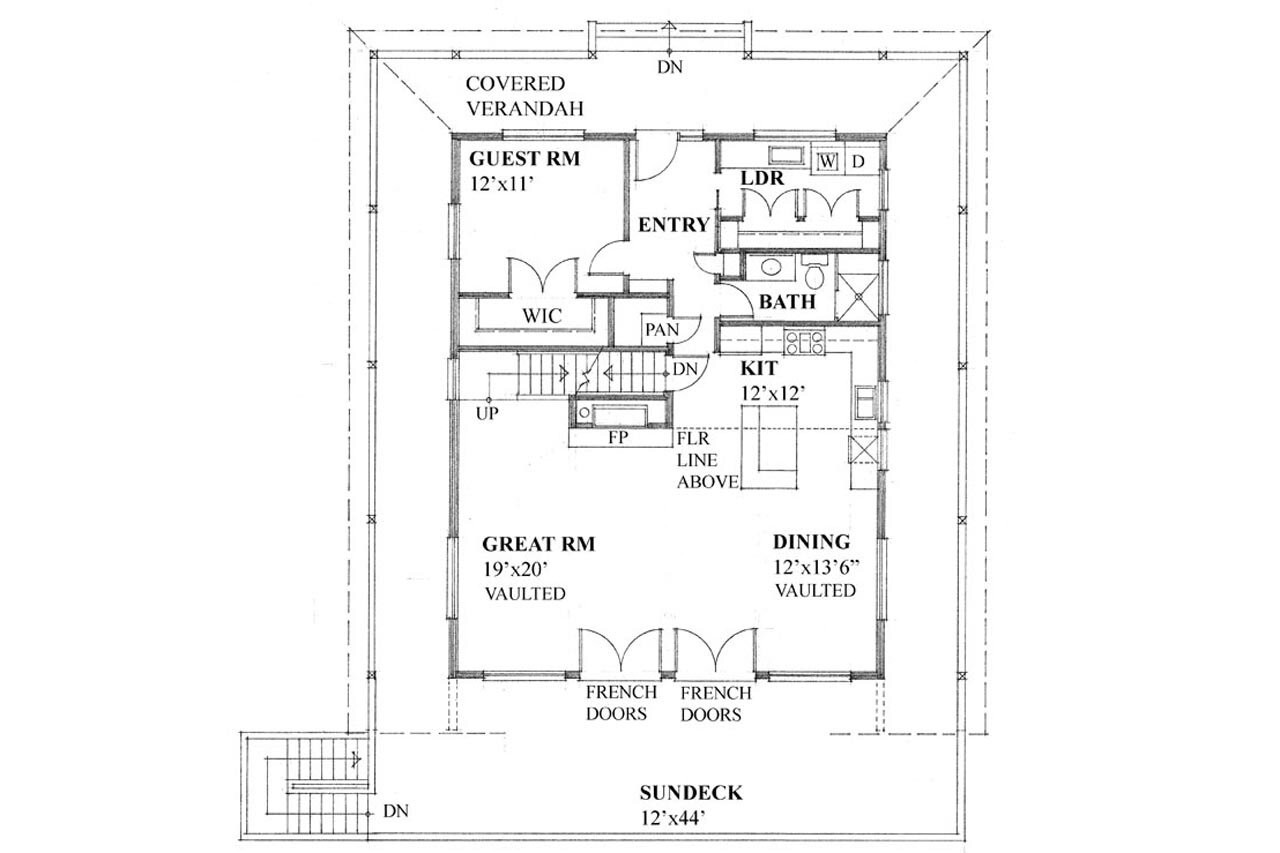

This country cottage has plenty of space for friends and family to gather. It has four bedrooms, two in the basement sharing a three-piece bathroom and games room. A guest bedroom on the main level with a walk-in closet. And finally, the vaulted Master Bedroom suite on the totally dedicated upper level with a loft overlooking the Great Room. The Great Room boasts a gas fireplace, exposed ceiling beams and a two-story glass wall opening onto the deck through two sets of French doors. The walk-out basement has a spacious rear facing deck accessed via sliding glass doors through the Games Room which is warmed by a gas fireplace.
At a Glance
