General Notes and specifications, Such As:
a) Designs Loads
d) Structural Steel
g) Other Misc. specs.
Front, Rear and Side Elevations @1/4” scale
Foundation plan (1/4” scale) indicating beam and column sizes along with lower level framing
Reinforced foundation and footing details

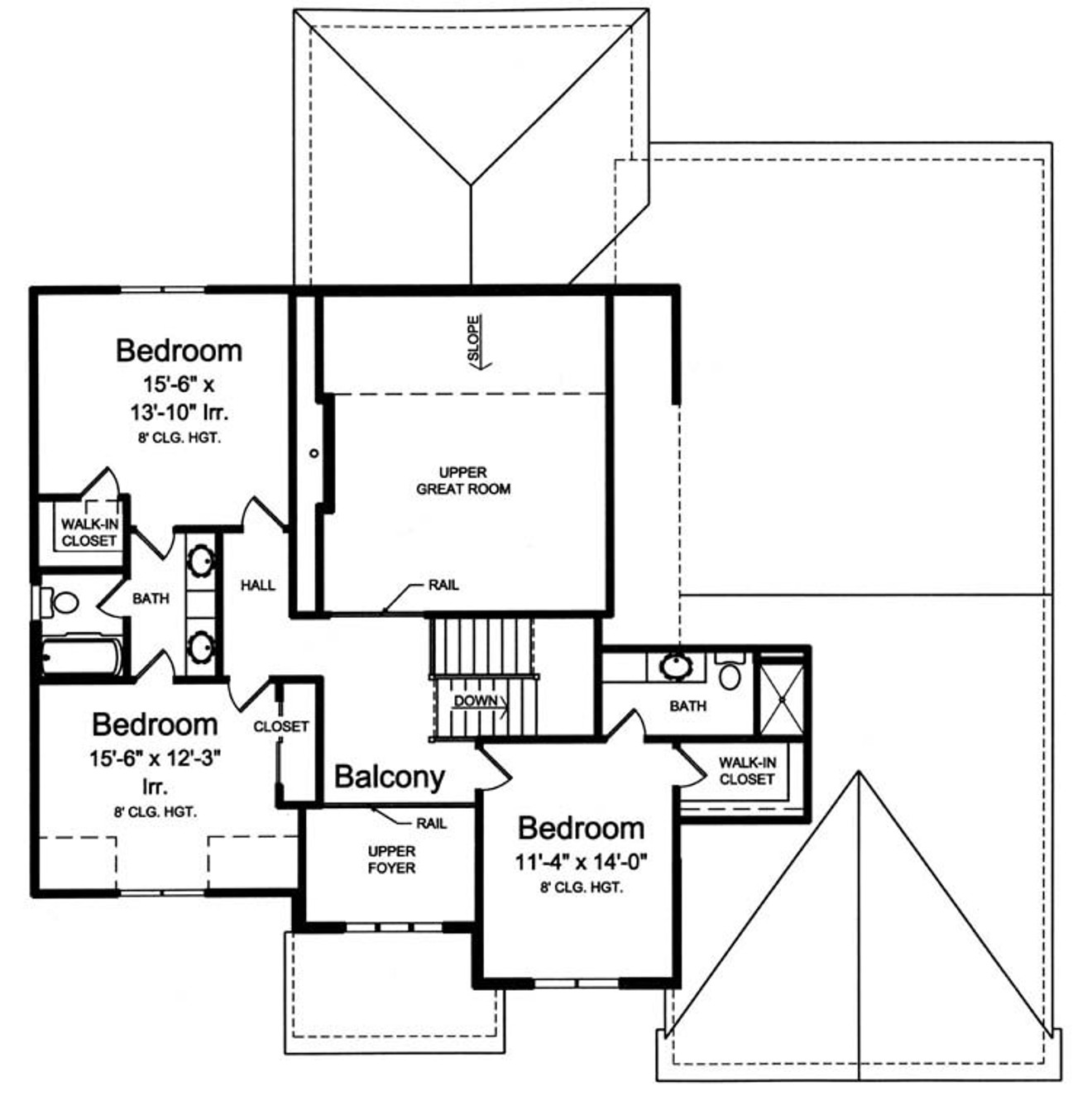

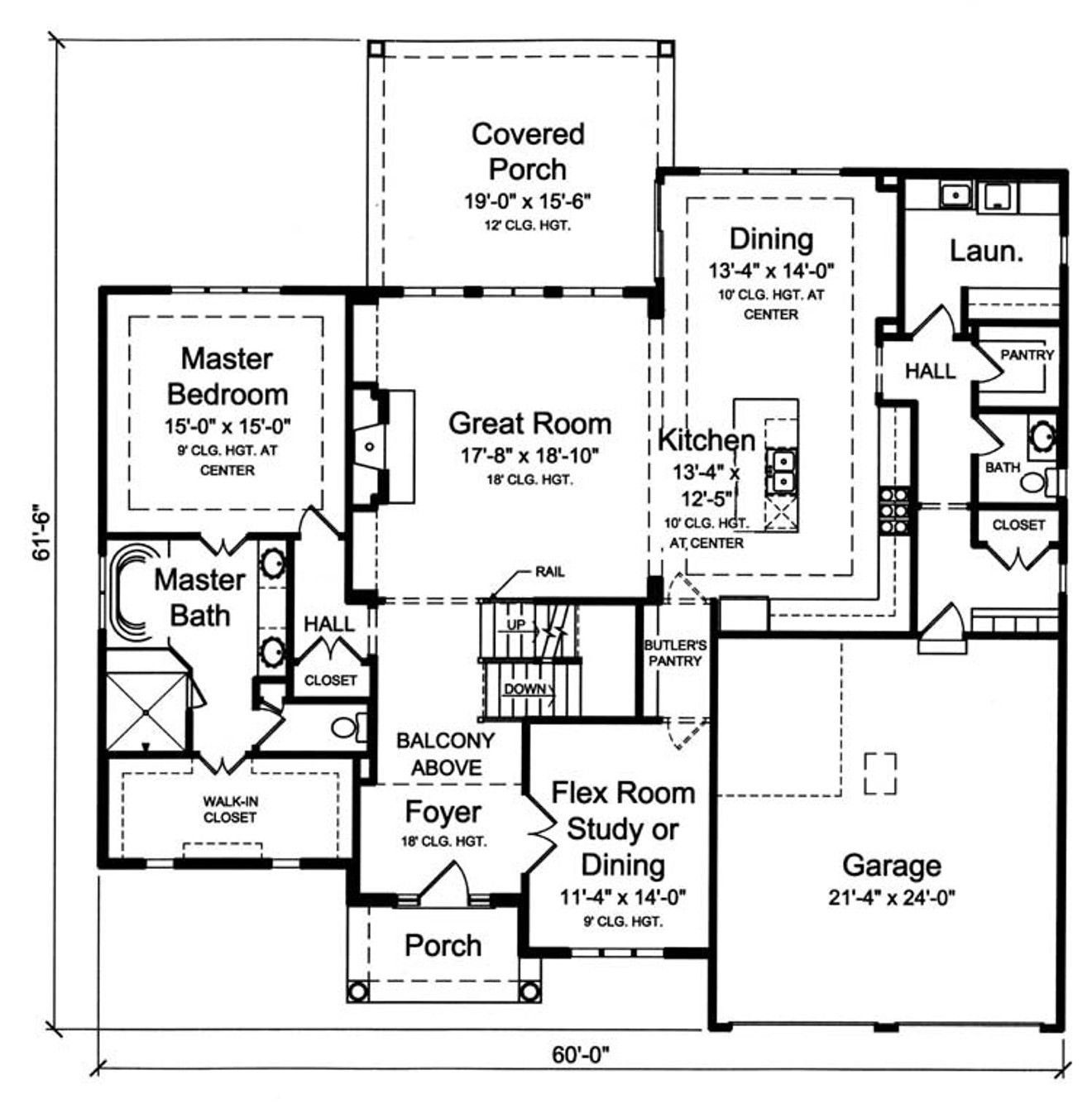

First & Second Floor plan (1/4” scale) includes all necessary framing information, window rough openings, beam sizes and framing details for specialized areas.
Stairs, sections, cabinet layouts, window flashing and miscellaneous details necessary for understanding of construction methods.
Roof plan (1/8”) indicating pitches and wall heights as well as truss profiles indicating hell heights and raised ceiling areas
Wall section indicating standard materials and detailing for typical wall construction.
a) Floor joists
b) Exterior wall framing
c) Wall heights
Roof framing is indicated as manufactured engineered roof trusses. Truss profiles are included.
New to plan buying?
The classic exterior with stone and shake siding offers texture and color to this beautiful facade. At the entry your attention is directed to the Great Room and through to the delightful covered rear Porch. An eight foot island with seating defines the Kitchen and informal dining offers access to the rear porch. Nine foot ceiling heights are standard throughout the main level while the Master Suite has a dropped soffit around the perimeter offering ceiling detail. A whirlpool tub double bowl vanity and large walk-in shower pamper the homeowner. The second floor bridge balcony showcases a spectacular view to the Grear Room and Foyer below and leads to three additional bedrooms each with a private bath entry and spacious closet. A large Laundry Room and Mud Room area are neatly arranged behind the garage for convenience and an orderly and functional family entry.
