A very compact design with an abundance of spacious living for both young and mature families alike. This plan can be built in either a full three-level five bedroom model or the more affordable three bedroom version. A spacious kitchen and family center design allows for many exciting evenings for friends to gather for memorable events.
Plan 18409
Coal Creek II
Photographs may show modifications made to plans. Copyright owned by designer.
- At a glance
- 3060 Square Feet
- 5 Bedrooms
- 3 Full Baths
- 2 Floors
- 2 Car Garage
- More about the plan
- Pricing
- Basic Details
- Building Details
- Interior Details
- Garage Details
- See All Details
Plan details
Basic Details
Building Details
Interior Details
Garage
What's Included in a Plan Set?
Cover sheet with general construction specifications and instructions for customer’s structural engineer instructions
Floor plans at ¼" scale
All exterior elevations at ¼" scale
Roof plan at ¼" scale
Building sections at ¼" scale
Completed foundation plan at ¼" scale
Completed floor framing plan at ¼" scale
Completed roof framing at ¼ “scale
Building height designations at ¼" scale
Door and window schedules
Electrical layout and legend
Designations for all floor, wall and ceiling surfaces
Details for all ceiling treatments
Typical wall section with material and insulation designated
Typical details for timber, beam and connectors
Typical details for Simpson connector to all framing conditions
All square footage calculations
Energy compliant thermal envelope designations
New to Plan Buying?
Coal Creek II - 18409
Ken Pieper
$0.00
- SKU:
- 109 - 3060 Coal Creek II
- Plan Number:
- 18409
- Pricing Set Title:
- 3001 to 3500 Sq Ft
- Designer Plan Title:
- 3060 Coal Creek II
- Date Added:
- 08/06/2018
- Date Modified:
- 10/01/2024
- Designer:
- dianne@kenpieper.com
- Plan Name:
- Coal Creek II
- Structure Type:
- Single Family
- Best Seller (Rank #):
- 10000
- Square Footage: Total Living:
- 3060
- Square Footage: Basement:
- 960
- Square Footage: Garage:
- 570
- Square Footage: 1st Floor:
- 1441

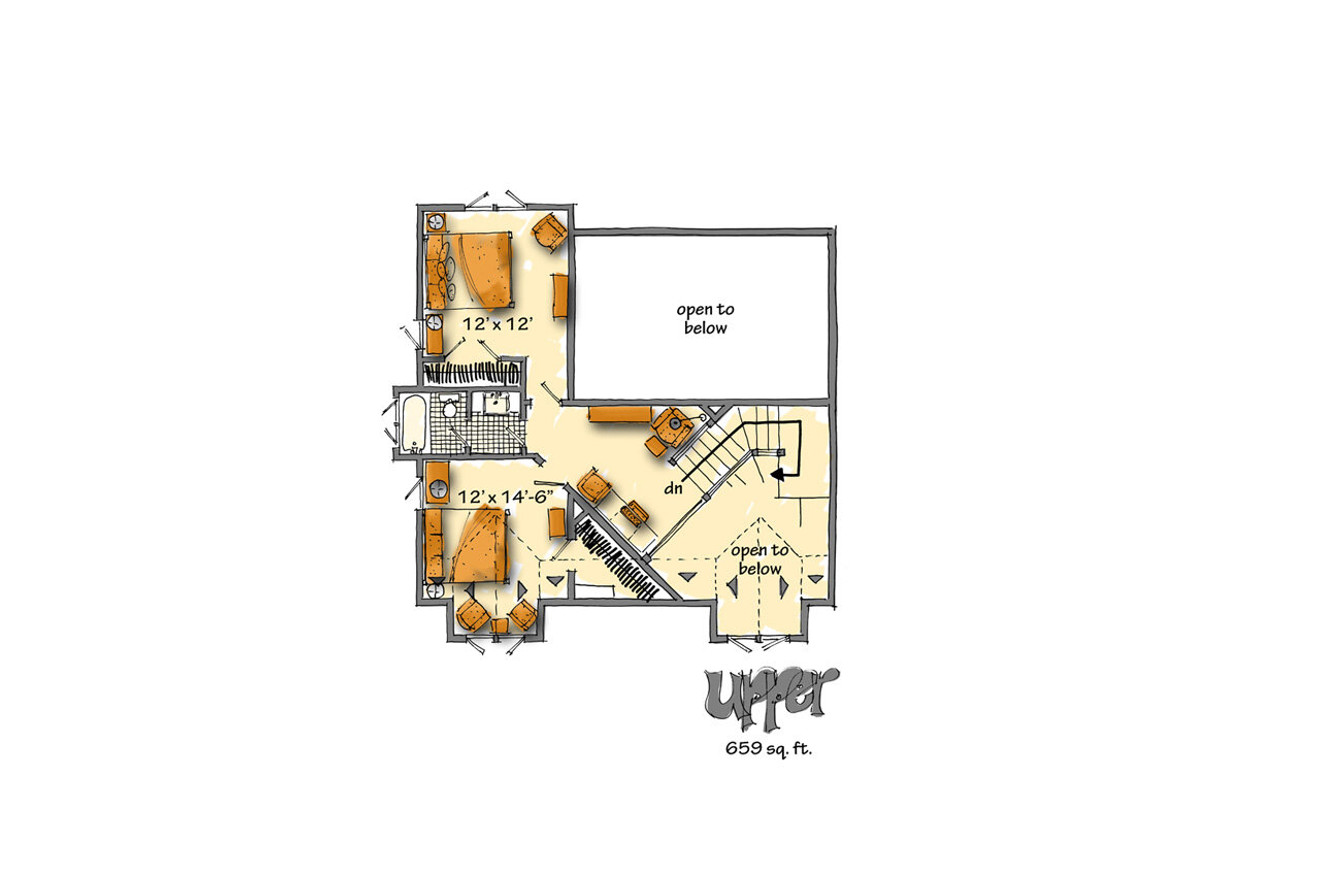

- Square Footage: 2nd Floor:
- 659
- Square Footage: Total Under Roof:
- 3951
- Square Footage: Unfinished Basement:
- 78
- Square Footage: Covered Porches:
- 243
- Floors:
- 2
- FLOORS_filter:
- 2
- Bedrooms:
- 5
- BEDROOMS_filter:
- 5+
- Baths Full:
- 3
- FULL BATHROOMS_filter:
- 3
- Baths Half:
- 1
- HALF BATHROOMS_filter:
- 1
- Ridge Height:
- 40'
- Overall Exterior Depth:
- 49
- Overall Exterior Width:
- 59.6
- Main Floor Ceiling Height:
- 9'
- Second Floor Ceiling Height:
- 8'
- Available Foundations:
- Daylight/Walk-out Basement
- Default Foundation:
- Daylight/Walk-out Basement
- Available Walls:
- 2x6 Wood Frame
- Default Wall:
- 2x6 Wood Frame
- Ext Wall Material:
- Stone/Siding
- Lot Type:
- View Lot
- Lot Slope:
- Downhill Sloping Lot
- Roof Framing:
- Combination Stick/Truss
- Roof Pitch:
- 12/12
- Primary Style:
- Country
- Secondary Styles:
- Bungalow
- Secondary Styles:
- Craftsman
- Master Suite Features:
- Main Floor Master Suite
- Master Suite Features:
- Private Toilet
- Master Suite Features:
- Separate From Other Bedrooms
- Master Suite Features:
- Shower Only
- Master Suite Features:
- Walk In Closet
- Interior Features:
- Family Room
- Interior Features:
- Fireplace/Wood Stove
- Interior Features:
- Great Room
- Interior Features:
- Loft
- Interior Features:
- Walk-Out/Daylight Basement
- Kitchen Features:
- Breakfast Nook/Dining Area
- Kitchen Features:
- Eating Bar or Peninsula
- Kitchen Features:
- Kitchen Island
- Kitchen Features:
- Large Kitchen
- Kitchen Features:
- Walk-In or Wall Pantry
- Utility Room Features:
- Close to Kitchen or Garage
- Utility Room Features:
- Main Floor Utility Room
- Utility Room Features:
- Mudroom or Mudhall
- Garage Type:
- Attached
- Garage Orientation:
- Front Entry
- Garage Bays Min:
- 2
- Garage Bays Max:
- 2
- GARAGE BAYS_filter:
- 2
- Exterior & Porch Features:
- Covered Patio
- Exterior & Porch Features:
- Covered Porch
- Exterior & Porch Features:
- Deck
- Family Plan:
- 3060 Coal Creek
- Styles:
- Country House Plans
- Styles:
- Bungalow House Plans
- Styles:
- Craftsman House Plans
- Collections:
- 2 Story House Plans
- Collections:
- 5 or More Bedroom House Plans
- Collections:
- View Lot House Plans
- Collections:
- Sloped Lot House Plans
- Product Rank:
- 4911
- Plan SKU:
- 3060 Coal Creek II
- Max Price:
- 2500.00
- Min Price:
- 2275.00
