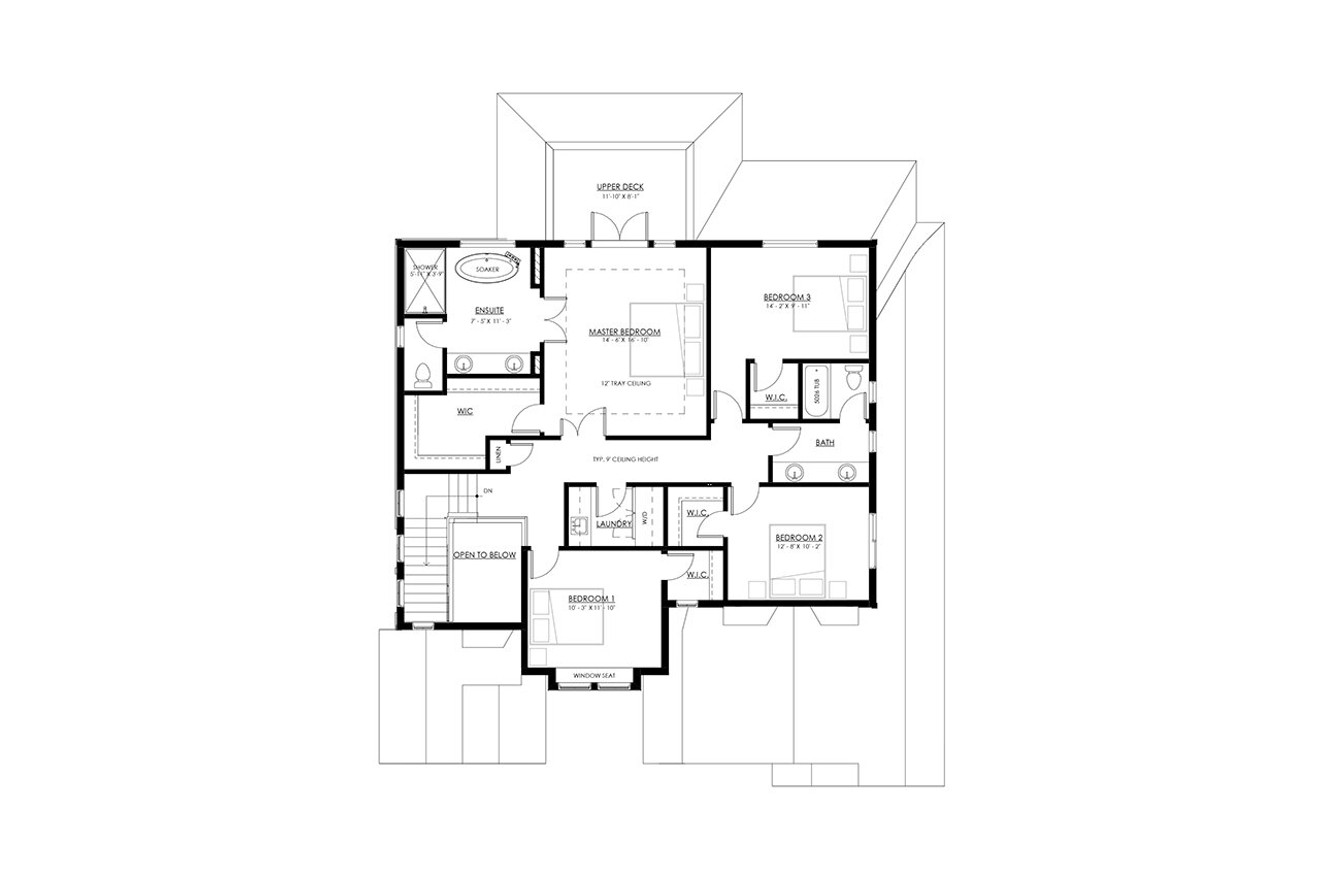

  • Secondary Image - Cape Cod House Plan - Sag Harbor 45954 - 2nd Floor Plan Icon_ionic-ios-expand

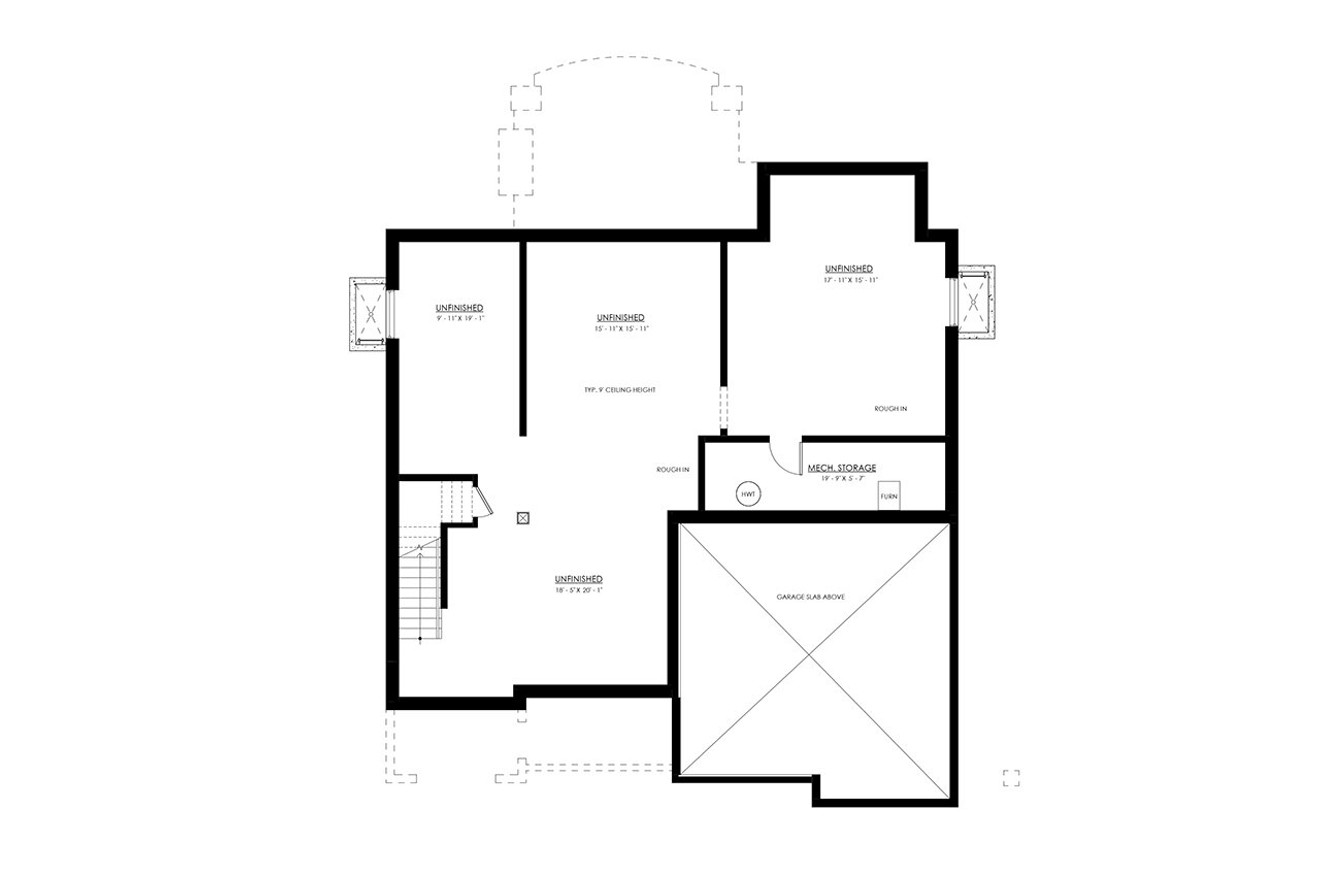

  • Cape Cod House Plan - Sag Harbor 45954 - Optional Floor Plan Icon_ionic-ios-expand

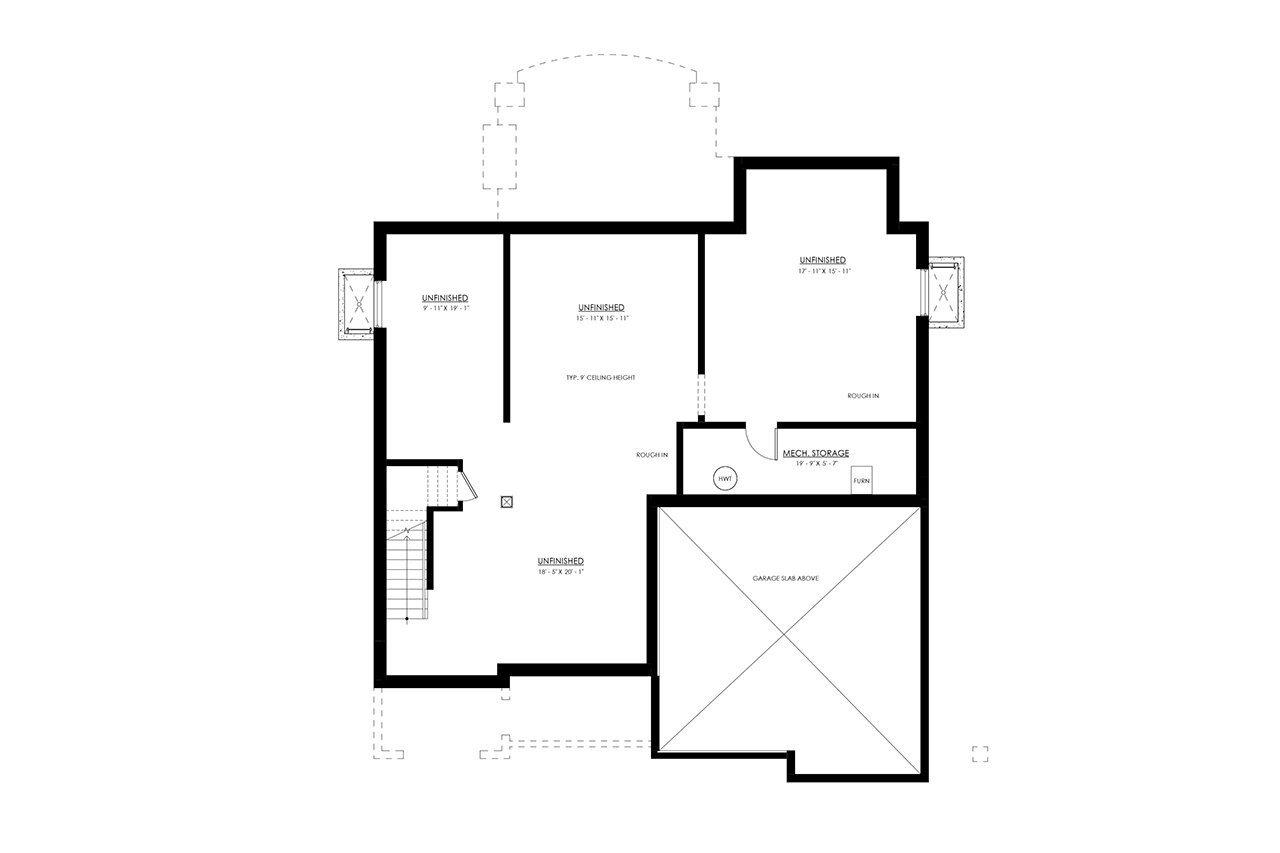

  • Cape Cod House Plan - Sag Harbor 45954 - Optional Floor Plan Icon_ionic-ios-expand
  • Cape Cod House Plan - Sag Harbor 45954 - Front Exterior
  • Cape Cod House Plan - Sag Harbor 45954 - Front Exterior
  • Cape Cod House Plan - Sag Harbor 45954 - Front Exterior
  • Cape Cod House Plan - Sag Harbor 45954 - Rear Exterior
  • Cape Cod House Plan - Sag Harbor 45954 - Rear Exterior
  • Cape Cod House Plan - Sag Harbor 45954 - Left Exterior
  • Cape Cod House Plan - Sag Harbor 45954 - Right Exterior
  • Cape Cod House Plan - Sag Harbor 45954 - 1st Floor Plan
  • Secondary Image - Cape Cod House Plan - Sag Harbor 45954 - 2nd Floor Plan
  • Cape Cod House Plan - Sag Harbor 45954 - Optional Floor Plan
  • Cape Cod House Plan - Sag Harbor 45954 - Optional Floor Plan
  • At a glance
  • Square Footage: Total Living 2910 Square Feet
  • Bedrooms 4 Bedrooms
  • Baths Full 2 Full Baths
  • Floors 2 Floors
  • Garage Bays Min 2 Car Garage

Floor plan

Cape Cod House Plan - Sag Harbor 45954 - 1st Floor Plan Icon_ionic-ios-expand
Secondary Image - Cape Cod House Plan - Sag Harbor 45954 - 2nd Floor Plan Icon_ionic-ios-expand
Cape Cod House Plan - Sag Harbor 45954 - Optional Floor Plan Icon_ionic-ios-expand
Cape Cod House Plan - Sag Harbor 45954 - Optional Floor Plan Icon_ionic-ios-expand

Contact HPC Experts

Have questions? Help from our plan experts
is just a click away.

To help us answer your questions promptly, please copy and paste the following information in the fields below.

Plan Number: 45954
Plan Name: Sag Harbor
Your submission has been received!
item-icon

Free modification quote

Call Us 866-688-6970 or fill out our form.

Get Started
item-icon

Cost to build report

How Much Will This Plan Cost To Build?

Find Out
GetQuote

Free modification quote

Are you looking for additional plan options?

Get a Quote

Have questions? Prefer to order by phone? Give us a call: 1-866-688-6970

Adding to Cart The item has been added

Plan details

Basic Details

Building Details

Interior Details

Garage

What's Included in a Plan Set?

Each plan set is drawn at 1/4"=1' scale and includes the following drawings:
Artist's Rendering: An artist's drawing of the home, usually viewed from the front, and general
construction notes.
Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches,
etc.
Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the
location of appliances, plumbing fixtures, proposed beams, ceiling heights, etc.
Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes
second floor proposed beams, ceiling heights, etc.
Foundation Plan: Shows the location of all concrete footings, proposed floor beams, first floor
framing, and foundation details. If there is a basement, a basement plan is included which shows
all basement details.
Roof Plan: Shows roof outlines, slopes, overhang distances, etc.
Section & Details: Shows a cross-section of the home. Shows support members, exterior and
interior materials, insulation, and foundation. Specific details such as fireplaces, stairways,
decks, etc. are drawn at 1" = 1' scale, and appear as needed throughout the prints.

What is NOT INCLUDED in the plans:
Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Plumbing & Electrical plans
Mechanical Drawings (location of heating and air equipment and duct work)
- your subcontractors handle this
Framing layouts with beam sizes and locations
Material lists
Renderings, photography, or marketing imagery
Energy calculations - handled locally when required
Building Code
Because of the wide range of requirements throughout states and municipalities, it is possible that the plans may not have all the information required by your building department.
If this is the case, we recommend hiring a local design professional or engineer who can assist bringing the plans up to your local building code.
Engineering
Some states require that a licensed architect or engineer review and stamp the plans. If this is the case where you will be building, a local professional will be able to assist you.

New to Plan Buying?

What You Need to Know About Purchasing Plans



You are about to embark on an exciting process, enjoy it!



Here is what you need to know about purchasing house plans from HPC:

 • Each designer and architect plans are created with their own unique style and content. Please be sure to read the "What's included in a Plan Set" tab, and if you don't see what you are looking for, be sure to give us a call.
 • The designs are not engineered. Check with the building department where the structure is being constructed to find out if an engineer's review is required. We can help facilitate engineering for your plan if you are unable to find a local professional who can assist you.
 • Your building department may also require a site plan of your lot be included with your submittal for a building permit. A local design

professional in your area should be able to help you with this as well as evaluating your chosen plan to make sure it meets the local building requirements for weather and seismic conditions.
 • Please read and understand your licensing agreement. This will clearly define what you can and can not do with your construction documents.
 • Electronic formats of packages sales (PDF & CAD Files) are final. Printed construction documents may be exchanged with an exchange fee within 30 days of purchase.
 • Unless purchasing an additional build license (one time additional or multi-build additional) you may build the structure one time. Ownership of the construction documents can not be transferred or sold.
 • Unless purchasing a printable package, you may not make additional copies of the plan without the permission of the designer.

Plan Packages Explained



Ready to purchase plans and unsure which construction package to choose? We hope the following can help you decide. Please note: Plan packages vary and may not be available on all plans.



1 Set Study Package


This is a single set of prints will allow you to completely review the plan, get accurate quotes for construction costs, and contemplate custom design changes you may wish to make. Study sets are marked Not For Construction and without the license necessary to legally build the home. Don't worry though, we allow a 100% upgrade credit towards a buildable licensed construction package within one year of your 1 Set Study Package purchase.



5 and 8 Set Print Packages


These are licensed print packages of the construction documents printed and shipped to you.



PDF Print Package


This PDF package is a non-modifiable, print only PDF file that saves time, gas, money, and paper! Many contractors and building jurisdictions are working with digital formats of the construction documents. The PDF print package allows for you or your contractor to distribute the construction documents to sub-contractors, use electronic submittals to apply for the building permit, and print the sets you need when you need them.



Plans Now

Don't wait - get your plans NOW! This digital plan package is a downloadable Print PDF Package (non-modifiable, print only). Includes a single build license - electronically signed and emailed to you immediately after placing your order - with permissions to make copies of the plan locally as needed.



PDF Master


An unlocked modifiable PDF file. Same conveniences as the PDF print package with the added benefit which allows your local professional to make engineering mark-ups or design changes using compatible software.



CAD Electronic Files


By using CAD compatible software that use .dwg or .dxf file formats enables you or a local professional to modify the construction documents and integrate those changes throughout the entire plan. Once the modifications or engineering is incorporated into your design, you can reproduce as many copies of the plan needed to build the structure.





Still unsure which package to choose? You may want to discuss this with your builder or give us a call.

How to Evaluate a Plan



When looking at plans, most often it's the exterior profile that will first grab your attention. You love the exterior, it's exactly what you envisioned, but what about the inside of the design? It's important to spend some time and digest the design's interior elements. Here are a few considerations to think about when evaluating if this is the right plan for you.



  First off, think about how you live in your home.
 • Do you or your family prefer to have one or two places to gather all together, or do you prefer to have more private places within your home.
 • Consider how you move through the home in your day to day life. Visually walk through the front door, what do you walk through or by? Do the same from your back door and garage entrances.
 • Is your family life more formal or casual and do the living spaces of the design complement your lifestyle?
 • Will your existing furniture fit within the spaces?
 • If you have a family, do you want the master suite close to the secondary bedrooms or separated?
  Do you entertain? Are there elements within the floor plan that allow for entertaining with ease?
  How do you take care of laundry? Would you prefer the laundry room to be close by the kitchen, garage, or close to the bedrooms?
  Storage space? Is there enough?
 • Consider your access to the outside? Do you want to extend your indoor living to the outside? Is there adequate porches or patios for how you want to enjoy your yard? Where will you place your grill or patio furniture?
 • The view? What are you going to see when you look out your windows? Need more privacy or need more accessibility to a view?
 • Make sure your garage will accommodate your cars, RV, or boat. Adequate storage? Do you want or need a door to the exterior beyond the opening garage doors? Utility sink? Space for an additional refrigerator or freezer?
  Consider things about your current home/residence that you don't like. By pin pointing these areas of your current home that you don't care for, you can make sure they are addressed in the next.


After reviewing giving it careful consideration you may find that the plan would be perfect with a few design changes. HPC can certainly help you with that with our customization services.

The Customization Process



So you've found that almost perfect design, and find yourself saying, "if only". Whether it's changing the size of a room, adding space or features, or moving things around, we can help you take that almost perfect design and make it perfect for you.



It's exciting to create a plan to fit your exact needs and wants whether it's your home, garage or even a potential investment property.



When you locate your plan, select the "Get Started" button located on the plan detail page. Here you will be able to share with us the changes to the interior and/or the exterior of the design. You can even upload a sketch if you have one. Complete the necessary contact information and select "Submit Request".



HPC will then forward your request to a designer to evaluate your changes and provide a quote within two business days. HPC is a "true quote" plan website. That means HPC will not mark-up the modification quote, we want to help keep costs down for you!

Sag Harbor - 45954

Su Casa Design

$1,395.00
(No reviews yet) Write a Review
SKU:
221 - Sag Harbor
Plan Number:
45954
Date Added:
08/12/2024
Date Modified:
04/14/2025
Designer:
eric@sucasadesign.ca, tammy@sucasadesign.ca, devin@sucasadesign.ca, amanda@sucasadesign.ca, info@sucasadesign.ca
Designer Plan Title:
Sag Harbor
Plan SKU:
Sag Harbor
Plan Name:
Sag Harbor
Max Price:
2395.00
Min Price:
1395.00
Pricing Set Title:
H1 - House 1 - Essential & Barndominium
Structure Type:
Single Family
Square Footage: Total Living:
2910
Square Footage: 1st Floor:
1566
Square Footage: 2nd Floor:
1344
Square Footage: Basement:
1391
Square Footage: Garage:
521
Square Footage: Porch:
69
Square Footage: Deck:
226
Square Footage: Upper Deck:
117
Floors:
2
FLOORS_filter:
2
Bedrooms:
4
BEDROOMS_filter:
4
Baths Full:
2
FULL BATHROOMS_filter:
2
Baths Half:
1
HALF BATHROOMS_filter:
1
Ridge Height:
31'6"
Overall Exterior Depth:
59
Overall Exterior Width:
47
Main Floor Ceiling Height:
9'
Second Floor Ceiling Height:
9'
Available Foundations:
Crawl Space
Available Foundations:
Concrete Slab
Available Foundations:
Basement
Available Foundations:
Daylight/Walk-out Basement
Default Foundation:
Crawl Space
Available Walls:
2x6 Wood Frame
Default Wall:
2x6 Wood Frame
Ext Wall Material:
Shingles, Lap siding, Stone
Lot Type:
Rear View
Lot Type:
View Lot
Lot Slope:
Level Lot
Roof Framing:
Truss
Roof Pitch:
7/12
Primary Style:
Cape Cod
Secondary Styles:
Shingle-Style
Secondary Styles:
Tudor
Collections:
Luxury House Plans
Master Suite Features:
Exterior Access
Master Suite Features:
Luxurious Master Bathroom
Master Suite Features:
Private Toilet
Master Suite Features:
Second Floor Master Suite
Master Suite Features:
Separate Tub & Shower
Master Suite Features:
Walk-In Shower
Master Suite Features:
Walk In Closet
Interior Features:
Beverage Bar
Interior Features:
Casual or Open Style Living Room
Interior Features:
Den, Office, Library, or Study
Interior Features:
Fireplace/Wood Stove
Interior Features:
Formal Dining Room
Interior Features:
Great Room
Interior Features:
Hobby Room
Interior Features:
Recreation Room/Game Room
Interior Features:
Storage
Interior Features:
Wine Cellar
Kitchen Features:
Breakfast Nook/Dining Area
Kitchen Features:
Eating Bar or Peninsula
Kitchen Features:
Kitchen Island
Kitchen Features:
Large Kitchen
Kitchen Features:
Walk-In or Wall Pantry
Utility Room Features:
Close to Bedrooms
Utility Room Features:
Second Floor Utility Room
Utility Room Features:
Mudroom or Mudhall
Garage Type:
Attached
Garage Orientation:
Front Entry
Garage Bays Min:
2
Garage Bays Max:
2
GARAGE BAYS_filter:
2
Exterior & Porch Features:
Courtyard
Exterior & Porch Features:
Covered Patio
Exterior & Porch Features:
Covered Porch
Exterior & Porch Features:
Deck
Exterior & Porch Features:
Balcony
Search Keywords:
Butler's Pantry, Outdoor Fireplace
Styles:
Cape Cod House Plans
Styles:
Shingle-Style House Plans
Styles:
Tudor House Plans
Collections:
2 Story House Plans
Collections:
4 Bedroom House Plans
Collections:
View Lot House Plans
Product Rank:
1954
Regions:
Canadian House Plans/British Columbia Home Plans

The Sag Harbor house plan is a stunning embodiment of timeless Cape Cod charm combined with the elegance of Shingle-style architecture. This two-story home offers an idyllic retreat, blending traditional design elements with modern conveniences to create a living space that is both welcoming and sophisticated.

As you approach the Sag Harbor home, the exterior greets you with a harmonious blend of shingles and stone accents, reminiscent of the classic coastal homes found along the New England shoreline. The shingled façade exudes a sense of history and character, while the stone accents add a touch of rustic elegance, grounding the home in its natural surroundings. The covered front porch, with its inviting seating area, offers a warm welcome, setting the tone for the comfort and charm that lies within.

Stepping through the front door, you are greeted by a foyer that immediately conveys a sense of grandeur and style. To the right, the formal dining room beckons, a space that is perfect for hosting dinner parties and family gatherings with large windows that flood the space with natural light, and a layout that encourages both intimate dinners and festive celebrations.

As you move further into the home, the foyer opens up to the heart of Sag Harbor: the open-concept great room. This expansive living area is designed for both relaxation and entertaining, with a stately fireplace serving as the focal point. The great room's design invites you to gather with family and friends, whether it's for a cozy evening by the fire or a lively get-together. Large windows and glass doors provide a seamless connection to the outdoors, leading to the covered patio where an outdoor fireplace awaits. This space is perfect for enjoying the beauty of every season, from cool autumn evenings to warm summer nights.

Adjacent to the great room is the kitchen, a chef’s dream that combines functionality with style. The kitchen features modern appliances, ample counter space, and a layout that makes meal preparation a pleasure. A butler's pantry adds a touch of luxury, providing additional storage and a convenient staging area for serving meals in the dining room. The breakfast area, surrounded by windows, offers a more casual dining option, perfect for enjoying morning coffee while taking in the view of the courtyard or the surrounding landscape.

The main floor of Sag Harbor also includes a study, a serene space perfect for work or quiet reflection. Whether you need a home office or simply a place to retreat with a good book, this room provides the privacy and tranquility you need. Nearby, a well-appointed half bath adds convenience for guests and residents alike.

Practicality is key in the Sag Harbor design, as evidenced by the thoughtful placement of the mudroom, which is directly accessible from the two-car front-entry garage. This space helps keep the home organized and clutter-free, offering ample storage for coats, shoes, and outdoor gear.

The second level of Sag Harbor is dedicated to restful living, with the master bedroom as the crown jewel. This luxurious retreat features a tray ceiling that adds a sense of height and elegance to the room. Exterior access to a private deck allows you to step outside and enjoy the fresh air in complete privacy, whether it’s to watch the sunrise or unwind under the stars. The master bathroom is a spa-like sanctuary, with a separate soaking tub, a walk-in shower, and a spacious walk-in closet that ensures ample storage for your wardrobe and accessories.

Three additional bedrooms on this level provide comfortable accommodations for family members or guests, each designed with care and attention to detail. These bedrooms share access to a full-size bathroom, which features dual vanities and a shower-tub combination, ensuring that morning routines are smooth and efficient. The convenience of an upstairs laundry room adds to the home’s practicality, making everyday chores easier to manage.

For those seeking additional living space, the Sag Harbor house plan offers the option for a finished basement. This lower level could include a recreation room with a wet bar, perfect for entertaining or enjoying a movie night. An additional bedroom and bathroom provide flexibility for hosting guests, while a craft room and wine storage area add unique touches that cater to your hobbies and passions.

Sag Harbor is more than just a house; it’s a home that captures the essence of Cape Cod living with a modern twist. Its classic design elements, combined with contemporary amenities, create a space that is both elegant and inviting. Whether you’re enjoying a quiet evening by the fire, hosting a dinner party, or simply relaxing in the comfort of your master suite, Sag Harbor offers a lifestyle that is as luxurious as it is comfortable.

Basement ceiling height is 9' Secondary roof pitch is 12/12

1 Set Package

One printed set of construction drawings. Includes a single build license.

1 Set Study Package

A single review set of the construction drawings marked Not For Construction and do not include a license to build. Upgrade to a licensed construction package or sign on for modifications within 1 year of purchase and received a 100% upgrade credit.

3 Sets

Three printed sets of construction drawings. Includes a single build license.

3 Set Package

Three printed sets of construction drawings. Includes a single-build license.

4 Sets

Four printed sets of construction drawings. Includes a single build license.

3 Sets + PDF Print

Three printed sets of construction drawings plus a Print PDF (non-modifiable). Includes a single build license.

4 Set Package

Four printed sets of construction drawings. Includes a single build license.

5 Set + Print PDF

Five printed sets of construction drawings plus a Print PDF (non-modifiable, print only). Includes a single build license.

5 Sets + Print PDF

Five printed sets of construction drawings plus a Print PDF (non-modifiable, print only). Includes a single build license.

5 Set Package

Five printed sets of construction drawings. Includes a single build license.

5 Set with PDF

Five printed sets of construction drawings plus a PDF copy of the construction drawings.

5 Sets with PDF

Five printed sets of construction drawings plus a PDF copy of the construction drawings.

6 Set Package

Six printed sets of construction drawings. Includes a single build license.

8 Set + Print PDF

Eight printed sets of construction drawings plus a Print PDF (non-modifiable, print only). Includes a single build license.

8 Set Package

Eight printed sets of construction drawings. Includes a single build license.

8 Sets with PDF

Eight printed sets of construction drawings plus a PDF copy of the construction drawings.

CAD + PDF

A digital plan package which includes both CAD (DWG) and PDF Files. Includes a single build license which allow the plans to be modified and reproduced locally.

CAD + PDF Unlimited

A digital plan package which includes both CAD (DWG) and PDF Files and includes an unlimited build license.

CAD Masters

A digital copy of the construction drawings in a DWG file format. Includes a single build license with permissions which allow the plan to be modified and reproduced locally. CAD Masters are emailed saving shipping costs and time.

CAD Package

A digital copy of the construction drawings in a DWG file format. Includes a single build license with permissions which allow the plan to be modified and reproduced locally. CAD Packages are emailed saving shipping costs and time.

CAD w/Multi-Use License

A digital copy of the construction drawings in a DWG file format. Includes a multiple build license with permissions which allow the plan to be modified and reproduced locally. CAD Packages are emailed saving shipping costs and time.

Concept Plan Package

Includes both PDF and DWG files of the Elevations, Floor Plan(s), and Roof Outline which can be used by a local design professional to complete the construction documents to site specific requirements, conditions and building practices. Includes a non-transferable unlimited build license.

Construction Package

Five printed sets of construction drawings that include a material list and a PDF (small size).

Master Builder CAD Set

A digital plan package which includes both the PDF Master and CAD Master (DWG) and includes an unlimited build license.

PDF Bid Set

A digital review set for bidding and personal study in a PDF format. Marked Not For Construction and does not include a license to build. Upgrade to a licensed construction package or proceed with plan customization services and receive a 100% credit (valid within 1 year of purchase).

PDF File

A digital copy of the construction drawings in a PDF format. Includes a single build license with modification permissions so a local professional with compatible software can make changes to the plan. PDF Files are emailed saving shipping costs and time.

PDF Master

A digital copy of the construction drawings in a PDF format. Includes a single build license with modification permissions so a local professional with compatible software can make changes to the plan. PDF Files are emailed saving shipping costs and time.

PDF Print Package

A digital copy of the construction drawings in a PDF format (non-modifiable, print only). Includes a single build license with permissions to make copies of the plan locally as needed. The PDF Print Package is emailed saving shipping costs and time.

PDF Print Package + 1 Set

One printed set of construction drawings plus a PDF Print Package (non-modifiable, print only). Includes a single build license.

PDF Print Package + 2 Sets

Two printed sets of construction drawings plus a PDF Print Package (non-modifiable, print only). Includes a single build license.

PDF Print Package + 3 Sets

Three printed sets of construction drawings plus a PDF Print Package (non-modifiable, print only). Includes a single build license.

PDF Print Package + 4 Sets

Four printed sets of construction drawings plus a PDF Print Package (non-modifiable, print only). Includes a single build license.

PDF Print Package + 5 Sets

Five printed sets of construction drawings plus a PDF Print Package (non-modifiable, print only). Includes a single build license.

PDF Study Set

A digital review set for bidding and personal study in a PDF format. Marked Not For Construction and does not include a license to build. Upgrade to a licensed construction package or proceed with plan customization services and receive a 100% credit (valid within 1 year of purchase).

PDF Unlimited

A digital copy of the construction drawings in a PDF format that includes an unlimited build license.

PDF w/Multi-Use License

A digital copy of the construction drawings in a PDF format. Includes a multiple build license with permissions which allow the plan to be modified and reproduced locally. This package is emailed saving shipping costs and time.

Plan Package

A digital plan package which includes the PDF Master, CAD Master (DWG), and Sketchup Pro Files (.layout). This package is emailed saving shipping costs and time.

Plans Now

Don’t wait – get your plans NOW! This digital plan package is a downloadable Print PDF Package (non-modifiable, print only). Includes a single build license – signed during check out – with permissions to make copies of the plan locally as needed.

Preliminary Set

One printed set of the elevations and floor plan(s) for study and review. Marked Not For Construction and does not include a license to build. Upgrade to a licensed construction package or proceed with plan customization services and receive a 100% credit (valid within 1 year of purchase).

Pricing Package

One printed set of the elevations and floor plan(s) plus a material list.

Reproducible Vellums

One printed set of construction drawings on transparent paper. Includes a single build license with permissions to modify and reproduce the plans. Modifications to this plan package are made by hand.

Review Set

A digital study set of the elevations and floor plan(s) only. The review set is not to scale. Upgrade to a licensed construction package or proceed with plan customization services and receive a 100% credit (valid within 1 year of purchase).

Study Set via Email

A digital review set for bidding and personal study in a PDF format. Marked Not For Construction and does not include a license to build. Upgrade to a licensed construction package or proceed with plan customization services and receive a 100% credit (valid within 1 year of purchase).

Study Set via email

A digital review set for bidding and personal study in a PDF format. Marked Not For Construction and does not include a license to build. Upgrade to a licensed construction package or proceed with plan customization services and receive a 100% credit (valid within 1 year of purchase).

5 Set Package Kit

Bundled savings! Includes 5 Print Sets of construction drawings, a PDF formatted to print 11’x17”, and a material list. Please note that the PDF may not be to scale.
