Entry Ceiling: 12' Stepped
Master Bedroom Ceiling: 10' Stepped
Great Room, Bedroom #2 Ceiling: 11'
Each plan set is drawn at 1/4"=1' scale and includes the following drawings:
Front Rendering: A rendering of the front elevation along with general construction notes.
Elevations: Shows the front, sides, and rear, including wall and window heights, exterior materials, soffit heights, roof pitches, etc.
Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, roof, wall, and floor structure from above (if any), ceiling heights, etc.
Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor roof structure as well.
Foundation Plan: Shows the location of all concrete walls and footings, beams supporting the floor structure and structure above, and foundation details. If there is a basement, a basement plan is included which shows all basement details.
Roof Plan: Shows roof outlines, lines of bearing walls below, roof framing details, etc.
Section & Details: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation. Stairway, kitchen elevations, and wall section details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
Electrical Plan: A schematic layout of all lighting, switches and electrical outlets drawn at 1/8" = 1'. Electrical general notes are provided as well.
New to plan buying?

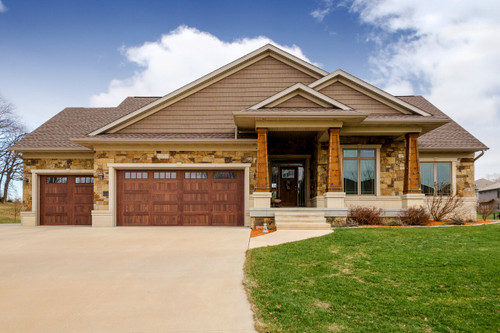

Craftsman details of shingle siding, stone and corbels gives this otherwise traditional style home a unique curb appeal that is sure to draw attention. A step ceiling greets you upon entry where the atrium wall of windows leading to the downstairs draws your attention to the back of the home. Here an open plan design includes a spacious great room with fireplace flanked by built-ins and a kitchen with a breakfast bar that overlooks both it and the adjacent dining area. Three bedrooms, including a master suite, are found to the right of the entry. A spacious walk-in closet, step ceiling, and dual sinks are highlights of the master and the other two bedrooms share the main floor bath off the hallway. Downstairs you’ll find two additional bedrooms, a family room, and a full bath. Finally, a three-stall garage provides extra storage for the kids’ bikes.
