Each plan set is drawn at 1/4"=1' scale and includes the following drawings:
Artist's Rendering: An artist's drawing of the home, usually viewed from the front, and general construction notes.
Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details.
Floor Framing Plan (if any): Shows location and spacing of floor joists and supporting walls or beams.
Roof Framing Plan: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc.
Section & Details: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation. Specific details such as fireplaces, stairways, decks, etc. are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
New to plan buying?
Slender columns and railing frame the idyllic covered front porch of the farmhouse plan Jackson 2. A half flight of stairs up from the street level, the front porch is large enough for a porch swing or other outdoor furniture making it a wonderful place to sit and watch the world pass by.

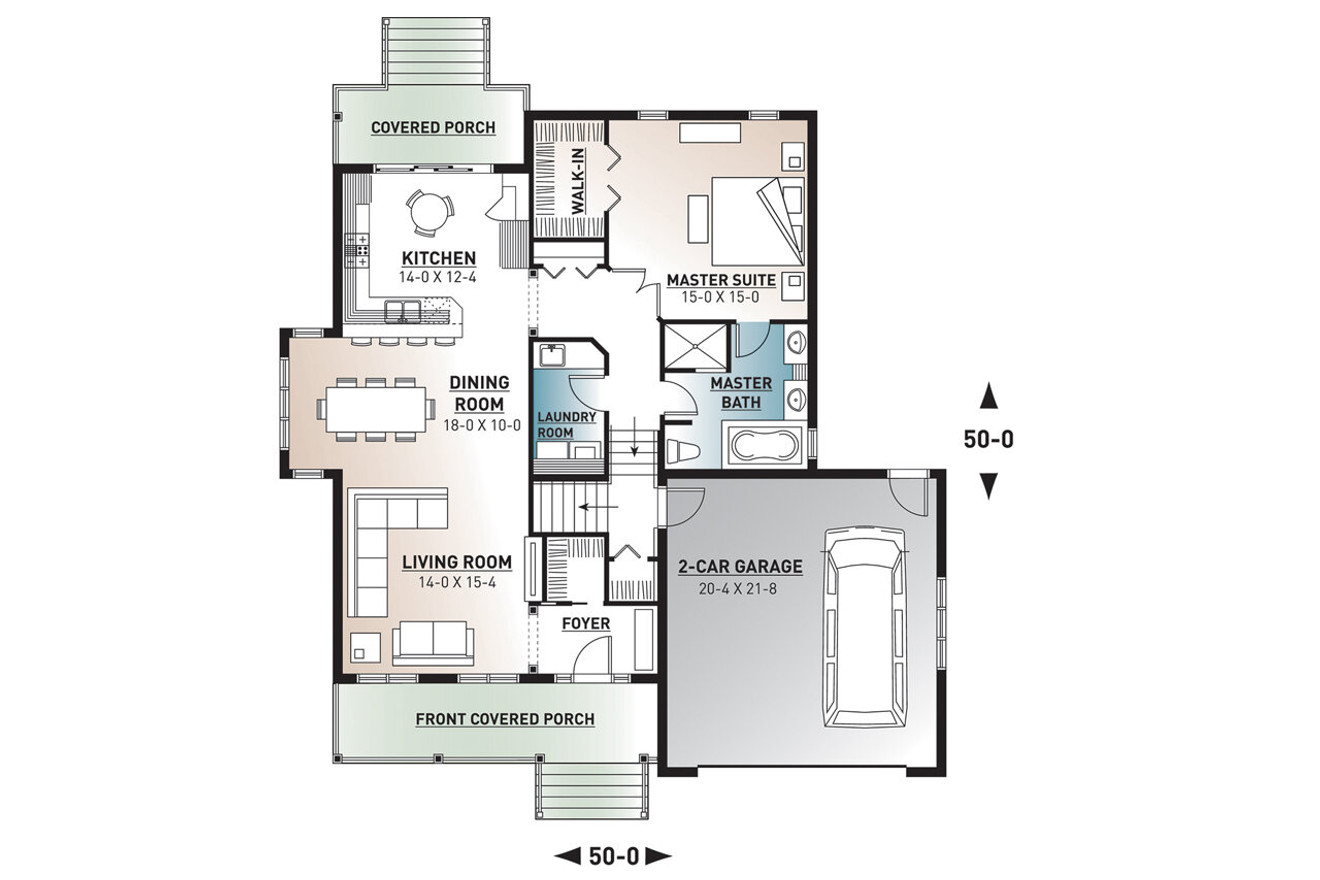

Inside the foyer is cozy. To the right, there is room for a bench if desired. Straight ahead a pocket door hides a walk-in coat closet. To the left, an opening leads to the living room.
The open-concept design of the living room has it completely open to the dining room and kitchen. The double set of windows along the front wall keeps the space bright and cheery. Traveling through to the dining room, the natural light continues. A square bay window has light coming in from three sides in the dining room. A peninsular eating bar provides some visual separation between the dining room and kitchen. The kitchen is filled with modern appliances, ample counter space plus a step-in pantry. The back wall of the kitchen is filled with a large sliding door that leads out to the covered porch.
Off the kitchen is a hallway that leads to the basement stairs and laundry room plus access to the attached two car garage. Also off this hall, is the master suite. A set of French doors open to this spacious retreat. Features include a walk-in closet and a shared bathroom with private entrance. The master bathroom boasts a soaking tub, separate shower and twin sinks.

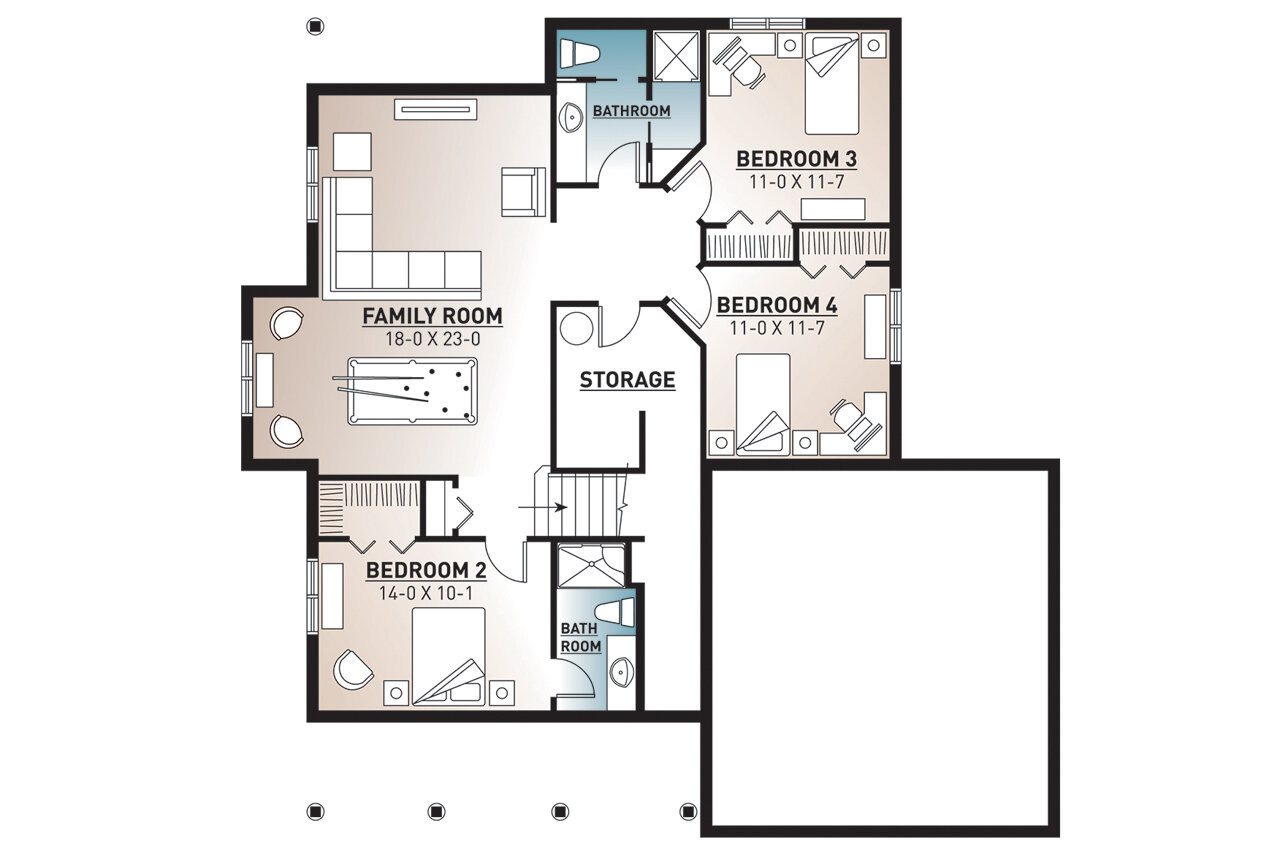

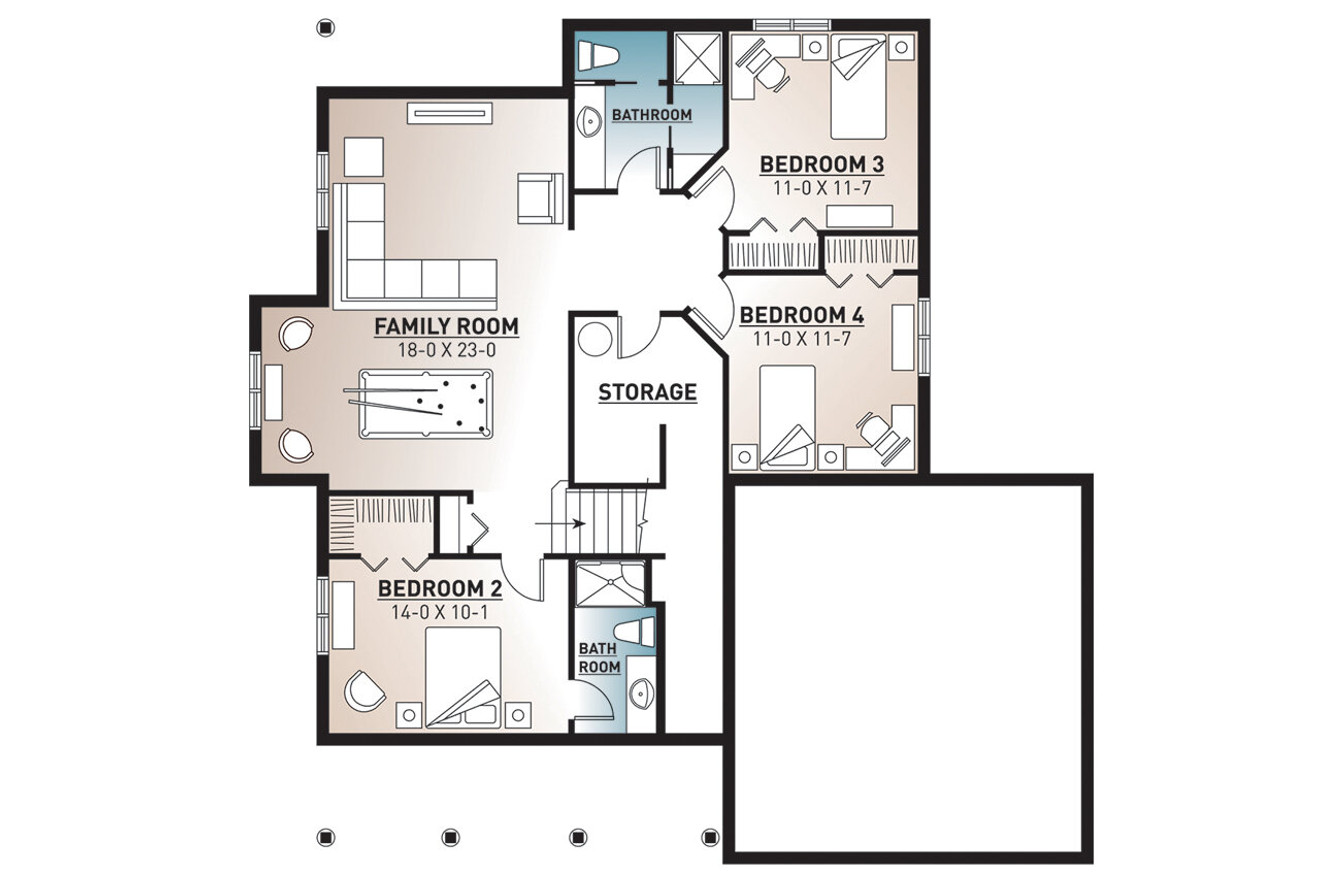

For additional privacy for the master suite, this four bedroom home plan has the remaining three bedrooms on the lower, basement level. In addition to the bedrooms, the basement features a family room and game space plus additional storage.
