Each plan set is drawn at 1/4"=1' scale and includes the following drawings:
Artist's Rendering: An artist's drawing of the home, usually viewed from the front, and general construction notes.
Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.

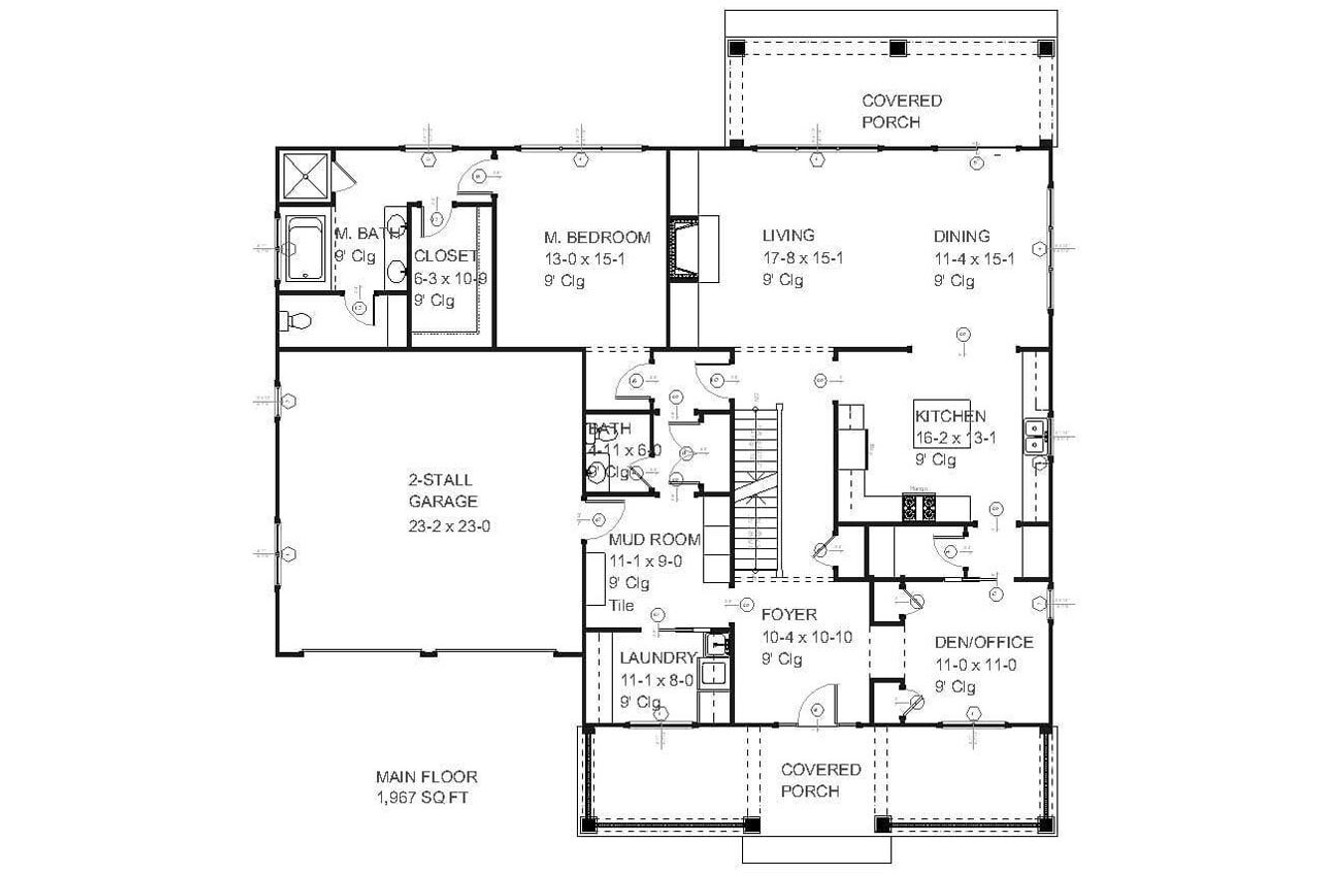

Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
Foundation Plan: Shows the location of all concrete footings and foundation details. If there is a basement, a basement plan is included which shows all basement details.
Floor Framing Plan: To be provided by local engineer or lumber yard.
Roof Framing Plan: Shows roof outlines, pitch, heel heights, and overhang sizes details, etc. Specific truss layouts by local engineer or lumber yard.
Section & Details: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation. Specific details such as fireplaces, stairways, decks, etc. are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
Exterior details for railings, shutters, flower boxes, brackets, columns where applicable on the design.
