The roof pitch is primarily 8:12 but over the two story area it is 5:12.
General Notes and specifications, Such As:
a) Designs Loads
d) Structural Steel
g) Other Misc. specs.
Front, Rear and Side Elevations @1/4” scale

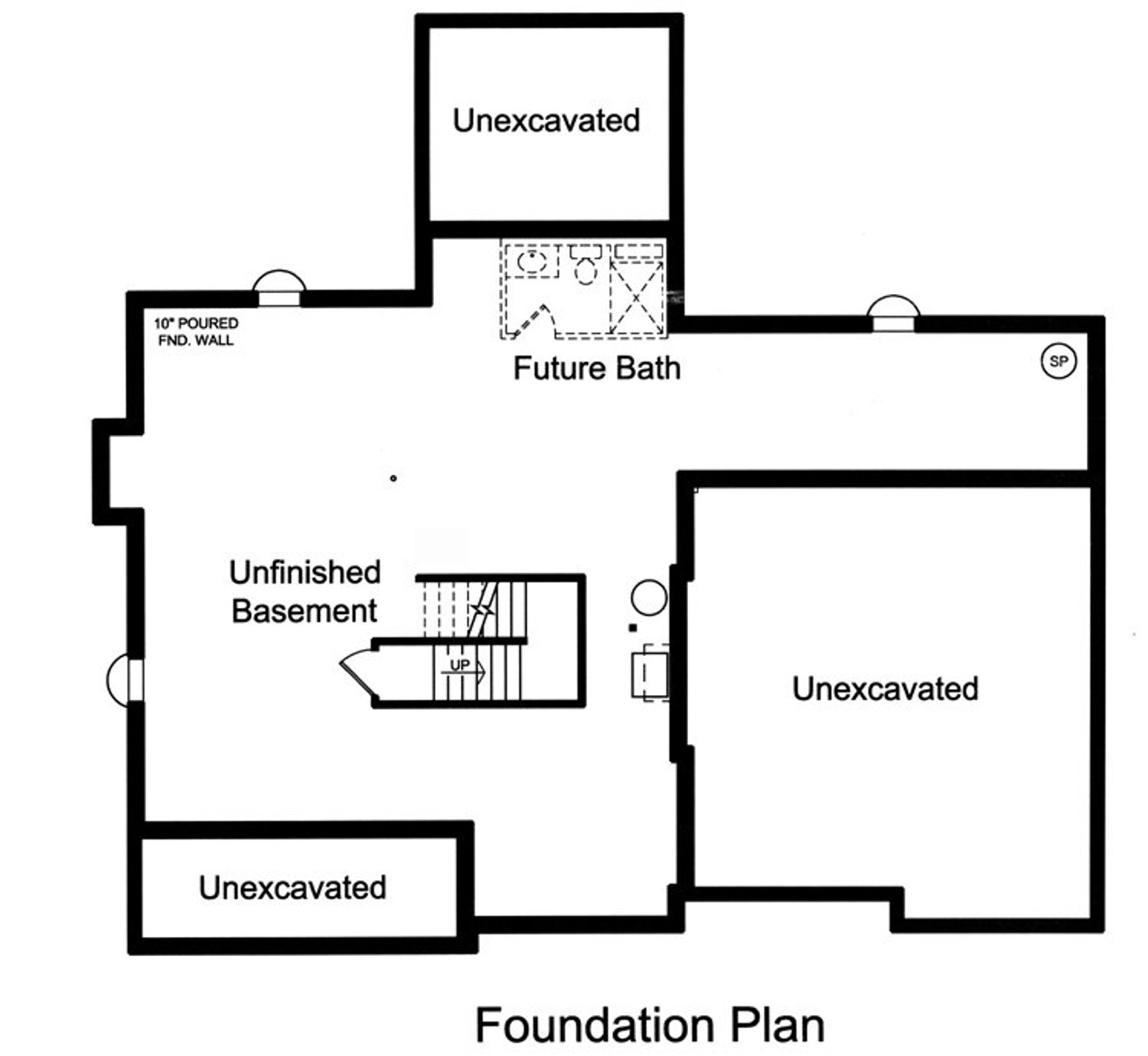

Foundation plan (1/4” scale) indicating beam and column sizes along with lower level framing
Reinforced foundation and footing details

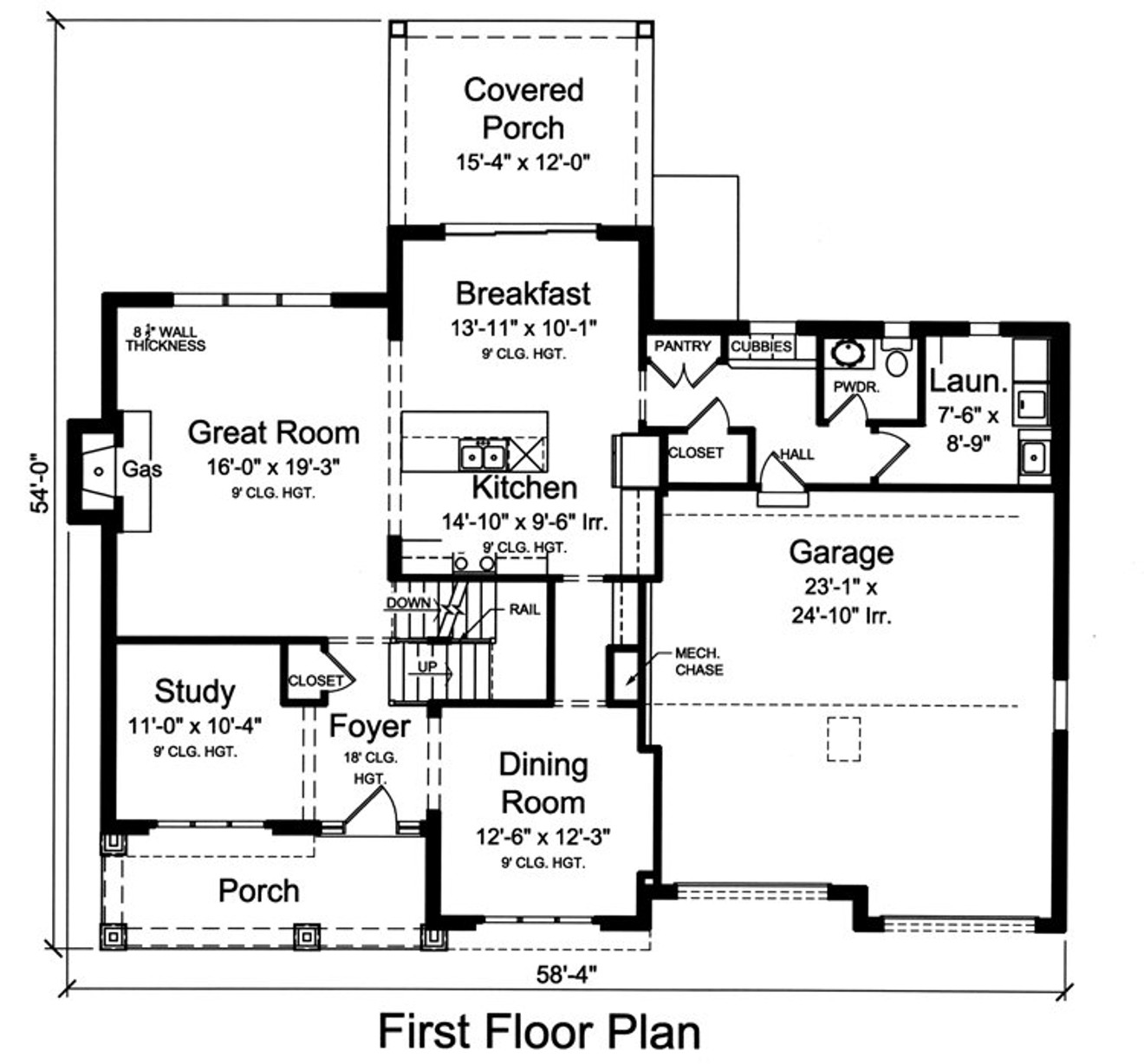

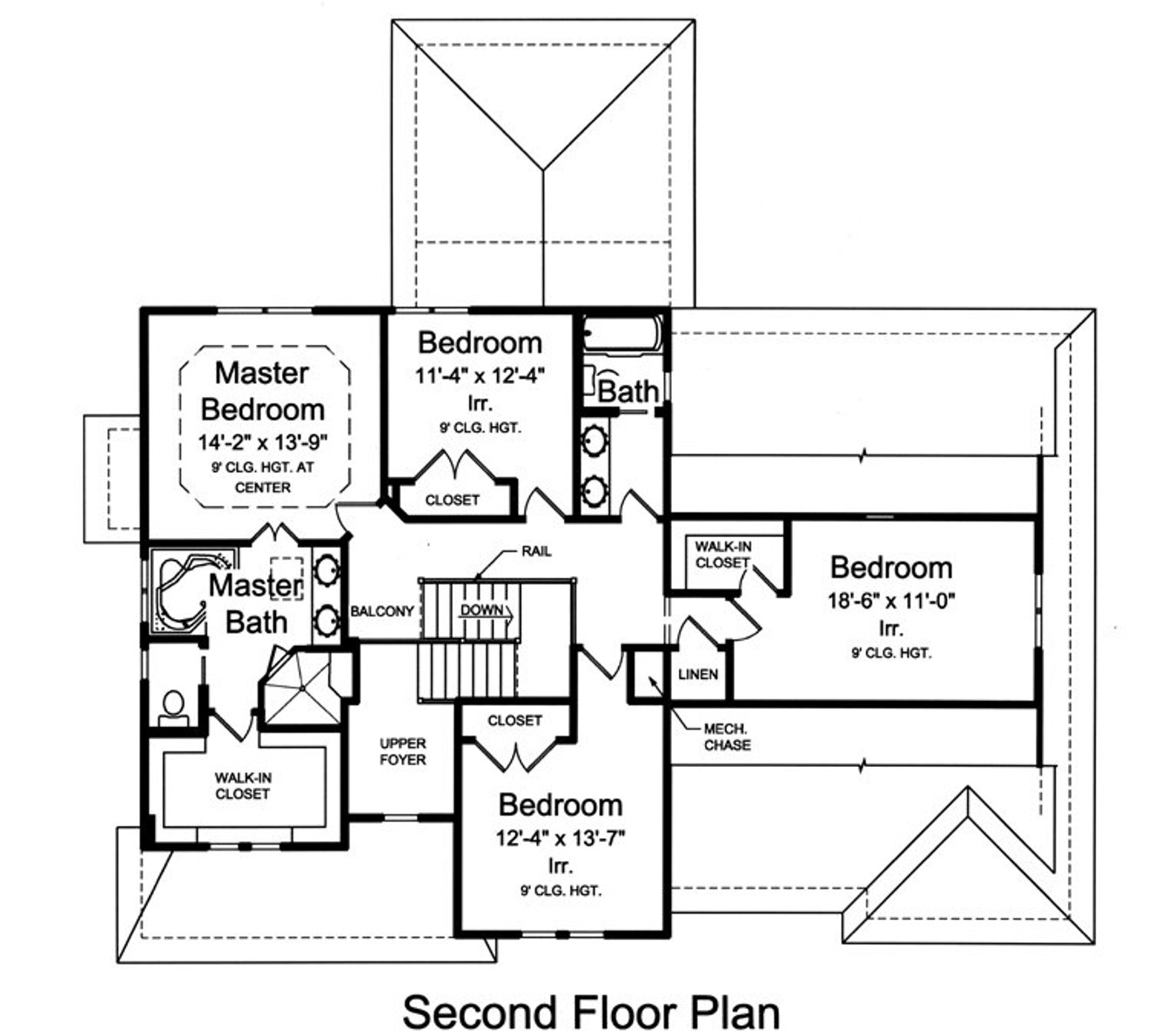

First & Second Floor plan (1/4” scale) includes all necessary framing information, window rough openings, beam sizes and framing details for specialized areas.
Stairs, sections, cabinet layouts, window flashing and miscellaneous details necessary for understanding of construction methods.
Roof plan (1/8”) indicating pitches and wall heights as well as truss profiles indicating hell heights and raised ceiling areas
Wall section indicating standard materials and detailing for typical wall construction.
a) Floor joists
b) Exterior wall framing
c) Wall heights
Roof framing is indicated as manufactured engineered roof trusses. Truss profiles are included.
The front elevation of this beautiful two-story home features a Craaftsman exterior with brick and shake facade and an exciting covered front porch. The spacious Great Room is decorated with a gas fireplace and windows to a rear view. An 8' island with seating defines the Kitchen and Dining Spaces. Triple doors to the covered rear porch allow the outdoors to be part of the living space.The mud room and Laundry are set behind the garage and offer an orderly family entry. The second floor Master Bedroom Suite with raised center ceiling, walk-in closet and bath wtih double bowl vanity, free standing tub and walk-in shower. A Balcony overlooks the Fouer and three additional bedrooms complete this family sized home.
