General Notes and specifications, Such As:
a) Designs Loads
d) Structural Steel
g) Other Misc. specs.
Front, Rear and Side Elevations @1/4” scale
Foundation plan (1/4” scale) indicating beam and column sizes along with lower level framing
Reinforced foundation and footing details

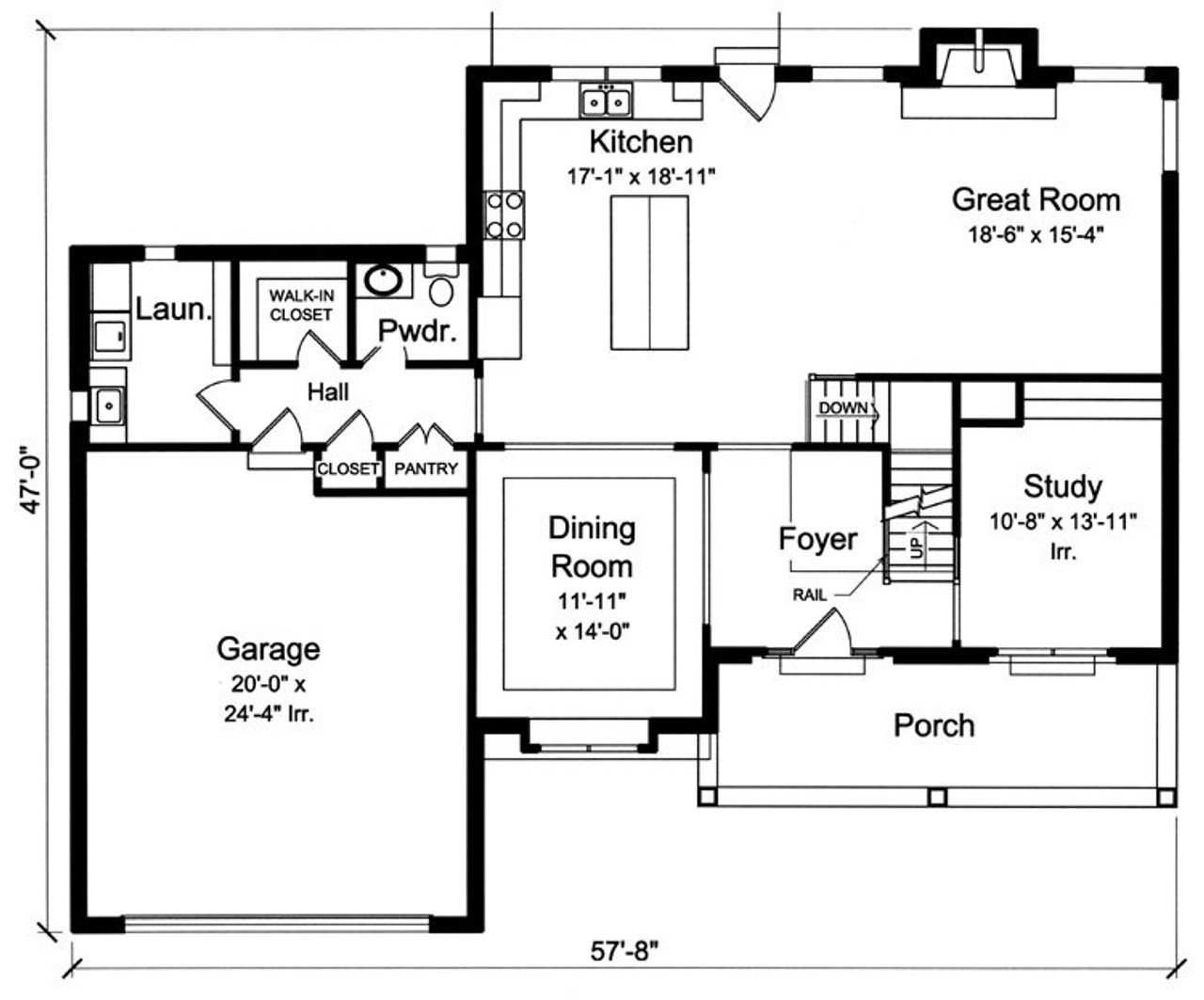

First & Second Floor plan (1/4” scale) includes all necessary framing information, window rough openings, beam sizes and framing details for specialized areas.
Stairs, sections, cabinet layouts, window flashing and miscellaneous details necessary for understanding of construction methods.
Roof plan (1/8”) indicating pitches and wall heights as well as truss profiles indicating hell heights and raised ceiling areas
Wall section indicating standard materials and detailing for typical wall construction.
a) Floor joists
b) Exterior wall framing
c) Wall heights
Roof framing is indicated as manufactured engineered roof trusses. Truss profiles are included.
New to plan buying?

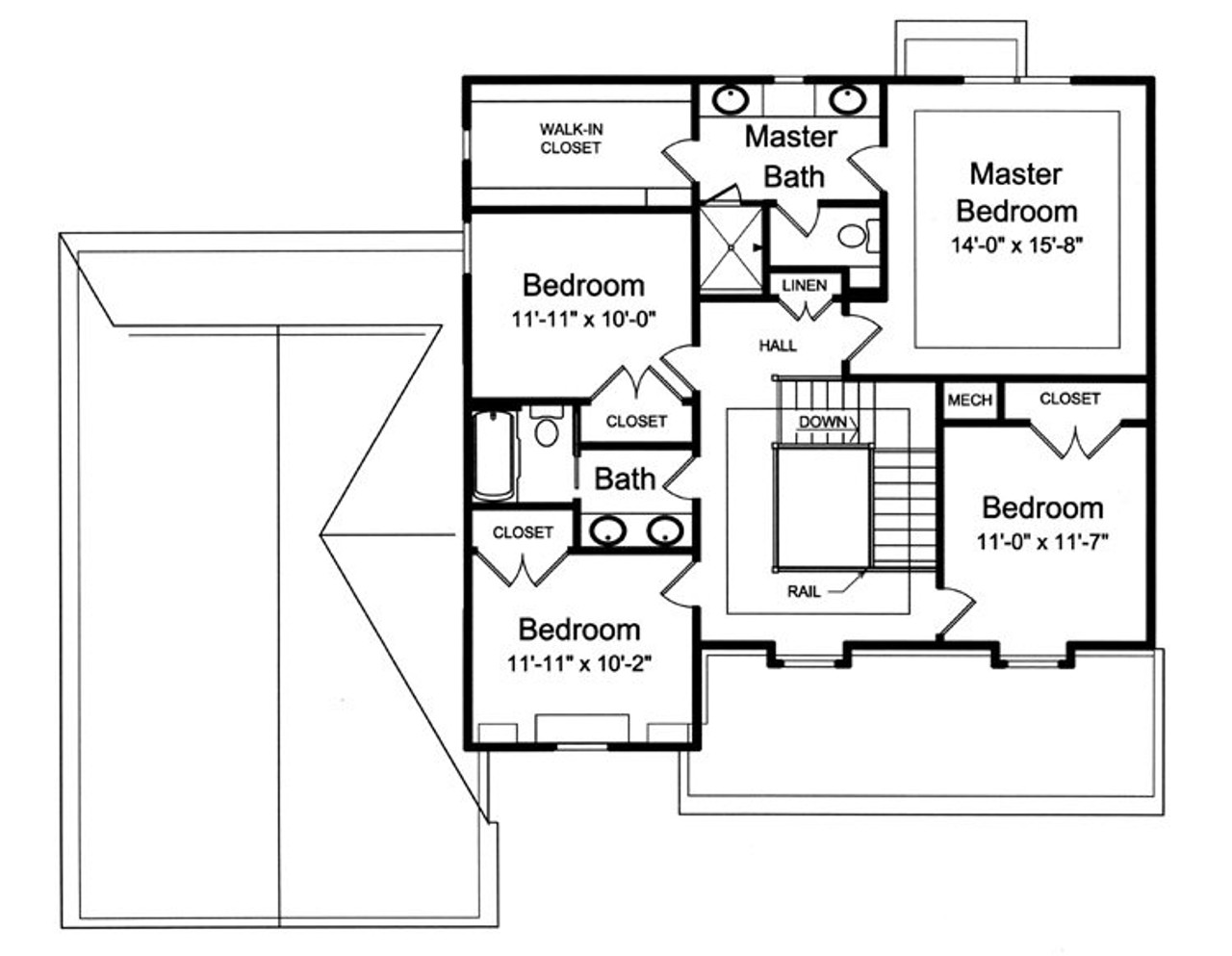

This two story home with covered front porch showcases spacious rooms and an open concept living. Windows on either side of the gas fireplace create a beautiful rear wall in the Great Room and a private Study is set to the front of the home. A large island with seating anchors the Kitchen and a Laundry Room, walk-in closet and 1/2 bath organize a Mud Room area. A large dining area can accessed for a formal or informal dining experience. Stairs from the Foyer lead to the second floor Master Suite with 9' ceiling height and Master Bath with double bowl vanity, large shower and walk-in closet. A balcony overlooks the Foyer and leads to 3 additonal bedrooms.
