* The Floor Plans are views of each floor, looking down from above. They show window and door locations, room dimensions, plumbing fixture locations, etc.
* Exterior Elevations are flat views of the outside of the house, looking at the front, left, rear and right.
* Building Sections show cutaway views of the home structure.
* The Foundation Plan shows the location of footings and concrete slabs.
* Floor & Roof Layouts show the outline of the floor truss systems, and slopes, valleys, ridges and hips on the roof.
* The Wall Section is a detailed view showing how the walls are assembled.
* The Electrical Plan shows the outlets, switches, lights and fans on the floor plan.
* Construction Notes and typical Details.
New to plan buying?

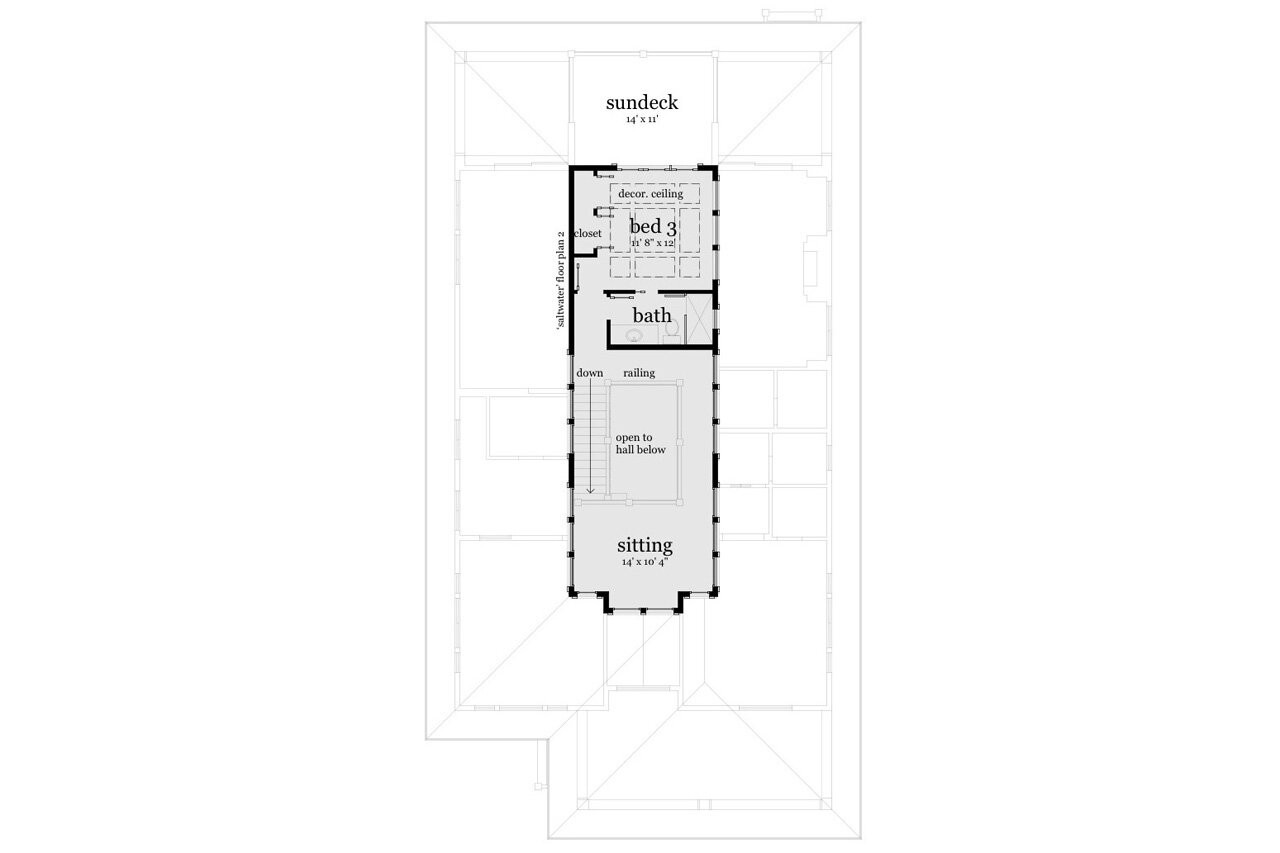

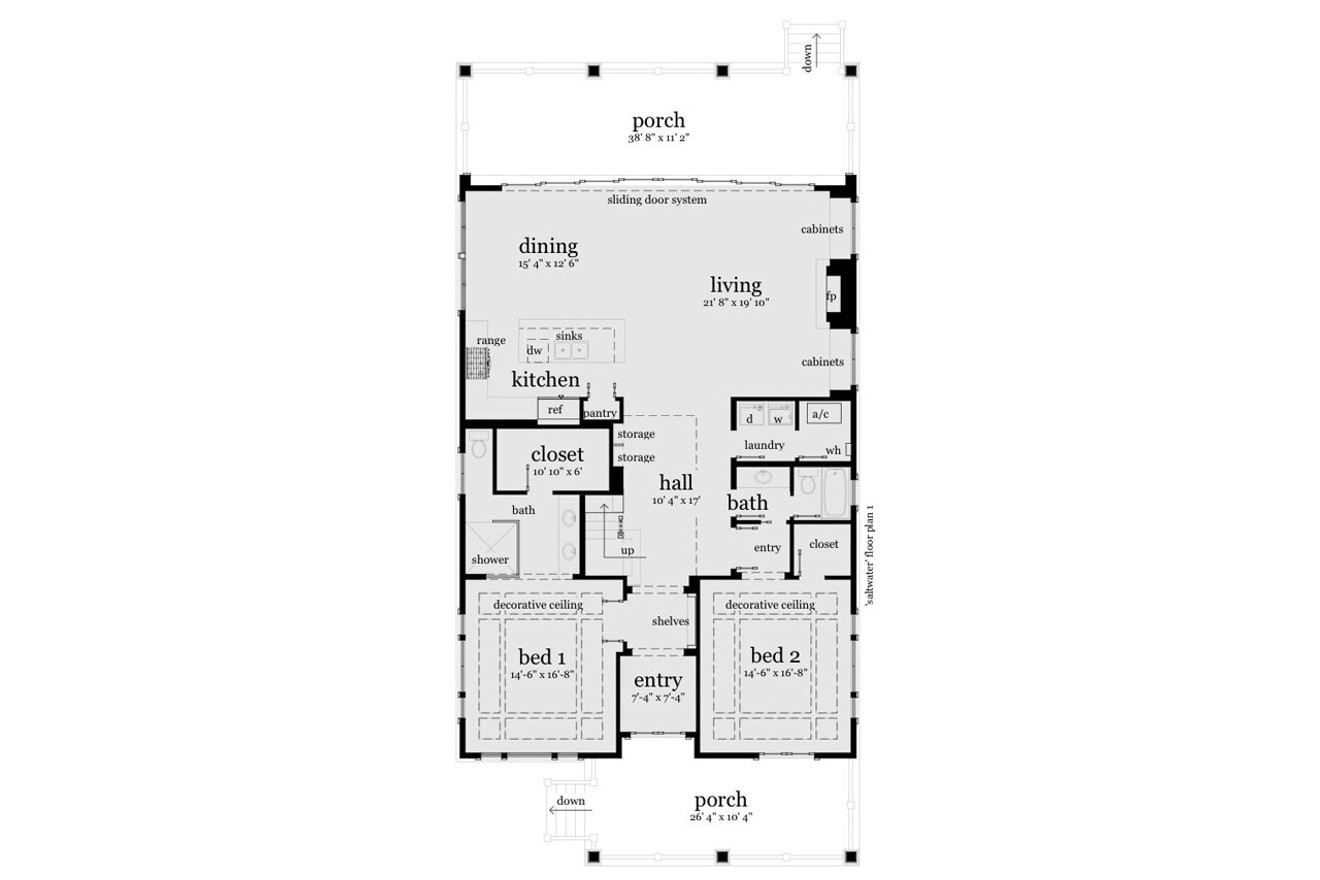

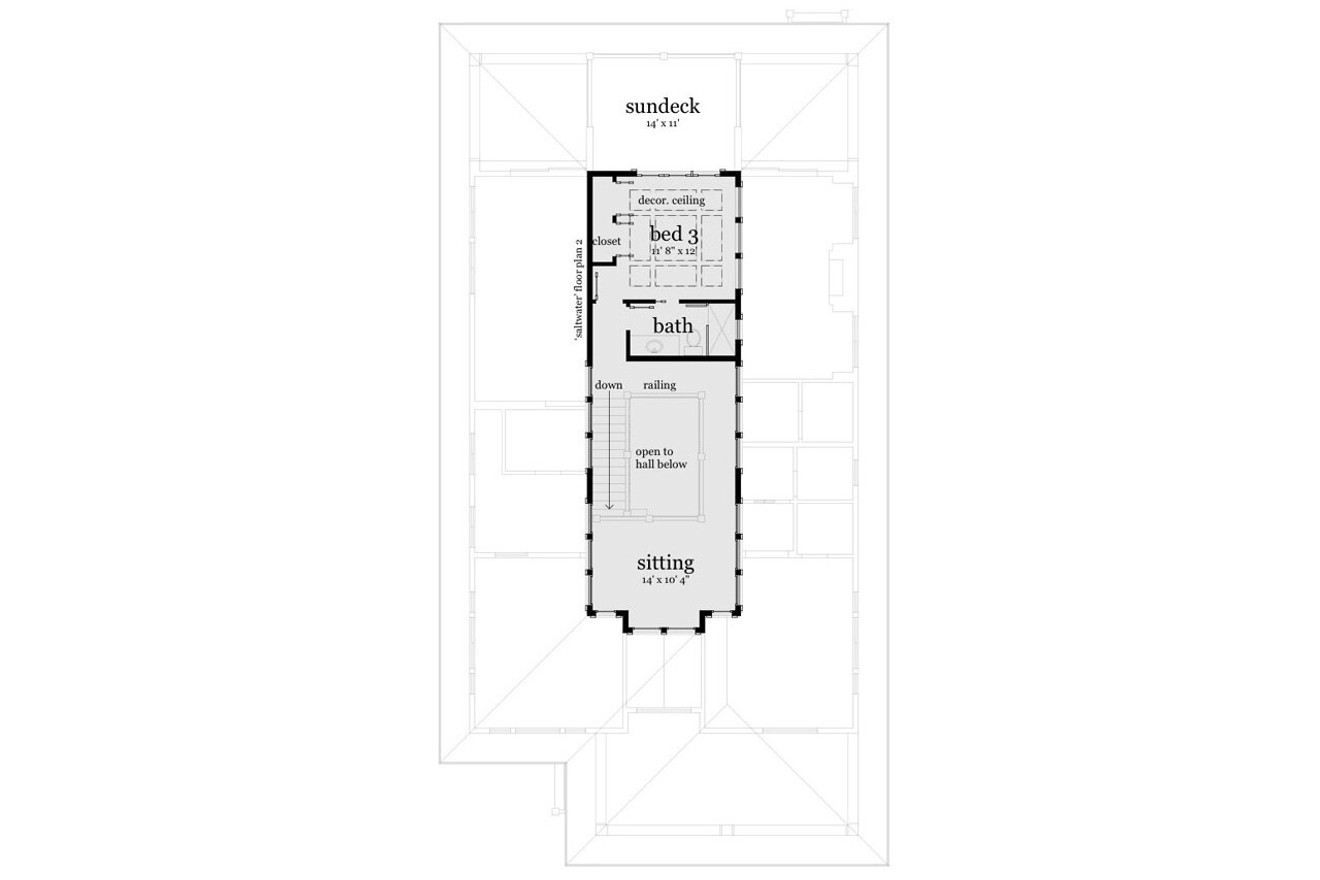

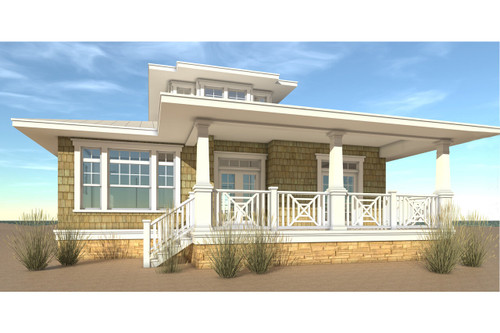

Large covered porch are entry points for both the front and back of the house. Two beautiful suites flank the entry foyer and hall. Beyond, the home opens to an ornate stairway, family, dining, and kitchen. The dining and family rooms open to the verandah through a large set of sliding doors. Upstairs the office and third suite have spectacular views.
