Entry Ceiling: 2-Story
Each plan set is drawn at 1/4"=1' scale and includes the following drawings:
Front Rendering: A rendering of the front elevation along with general construction notes.
Elevations: Shows the front, sides, and rear, including wall and window heights, exterior materials, soffit heights, roof pitches, etc.
Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, roof, wall, and floor structure from above (if any), ceiling heights, etc.
Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor roof structure as well.
Foundation Plan: Shows the location of all concrete walls and footings, beams supporting the floor structure and structure above, and foundation details. If there is a basement, a basement plan is included which shows all basement details.
Roof Plan: Shows roof outlines, lines of bearing walls below, roof framing details, etc.
Section & Details: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation. Stairway, kitchen elevations, and wall section details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
Electrical Plan: A schematic layout of all lighting, switches and electrical outlets drawn at 1/8" = 1'. Electrical general notes are provided as well.
New to plan buying?

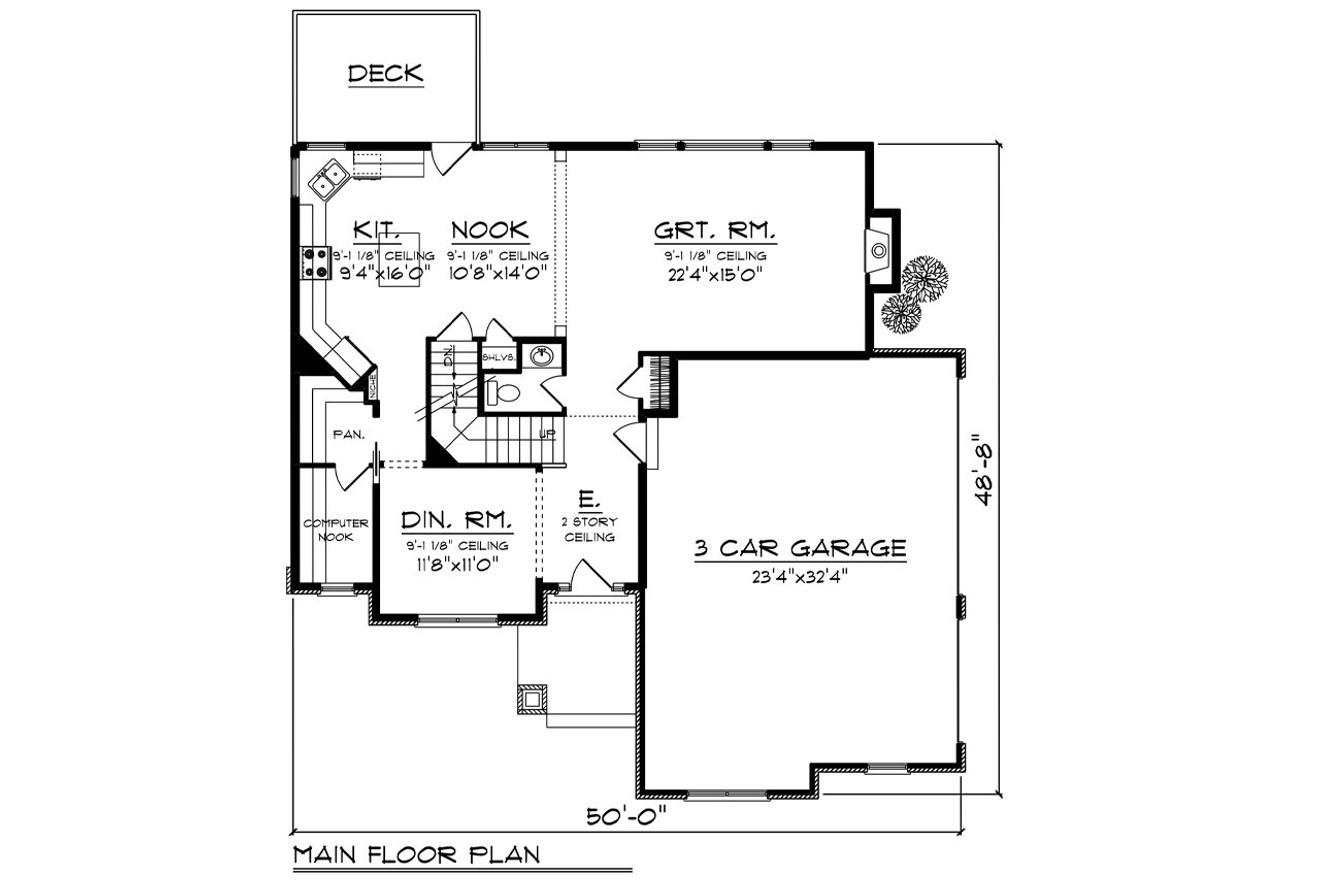

This Craftsman design makes use if every inch of livable space. As you enter, the two-story entry greets you and draws you into the great room. Natural light streams in through the wall of windows in the great room and warms the living area. The kitchen is an open concept design. Overall, the kitchen, nook and great rooms combine to create a daily living area that’s large enough to accommodate family gatherings. A formal dining room is found just off the entry to the left. On the second level, you'll find four bedrooms, including the master suite. The spacious master suite is sure to please with a massive walk-in closet and private bath. A Jack-and-Jill bathroom separates two bedrooms while the fourth bedroom has a private bath.
