General Notes and specifications, Such As:
a) Designs Loads
d) Structural Steel
g) Other Misc. specs.
Front, Rear and Side Elevations @1/4” scale
Foundation plan (1/4” scale) indicating beam and column sizes along with lower level framing
Reinforced foundation and footing details

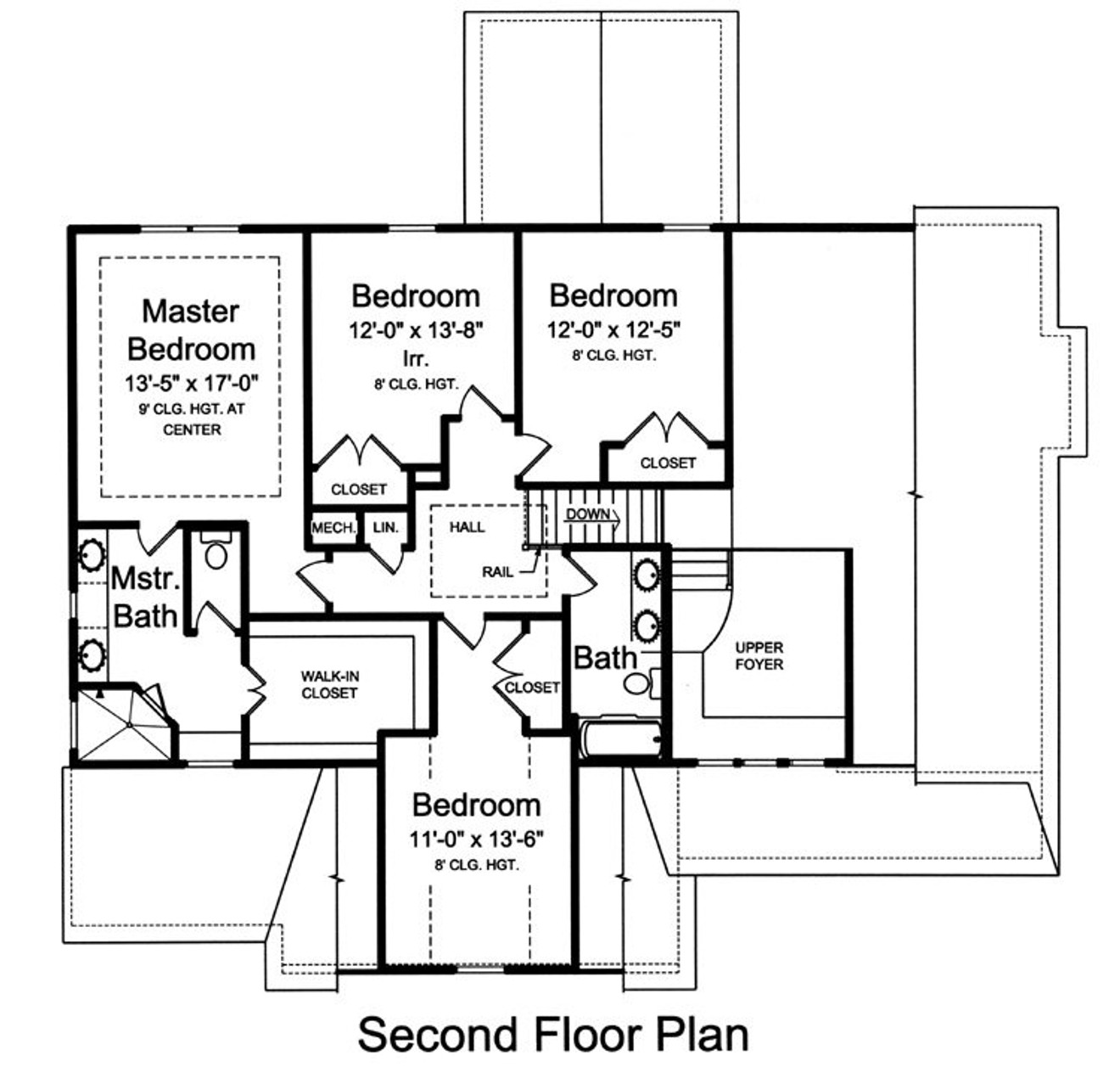

First & Second Floor plan (1/4” scale) includes all necessary framing information, window rough openings, beam sizes and framing details for specialized areas.
Stairs, sections, cabinet layouts, window flashing and miscellaneous details necessary for understanding of construction methods.
Roof plan (1/8”) indicating pitches and wall heights as well as truss profiles indicating hell heights and raised ceiling areas
Wall section indicating standard materials and detailing for typical wall construction.
a) Floor joists
b) Exterior wall framing
c) Wall heights
Roof framing is indicated as manufactured engineered roof trusses. Truss profiles are included.
New to plan buying?
Brick, siding and wood accents decorate the exterior of this Craftsman styled 2-story home. High ceilings are featured through the Foyer, Study and Great Room for a dramatic effect. The gas fireplace surrounded by windows and additional windows on the rear wll flood the room with natural light and offer rear and side yard views. The Kitchen and Dining area enjoy a 9' ceiling height with a dropped soffit defining the perimeter of each space. A first floor Laundry room and Powder Room, and a large walk-in closet and mud room, near the 3 car, garage, brings a convenience and functionality to the first floor. The second floor Master Bedroom Suite boasts a 9' raised ceiling height, large double bowl vanity, oversized shower and spacious walk-in closet. Three additonal bedrooms complete this family sized home.
