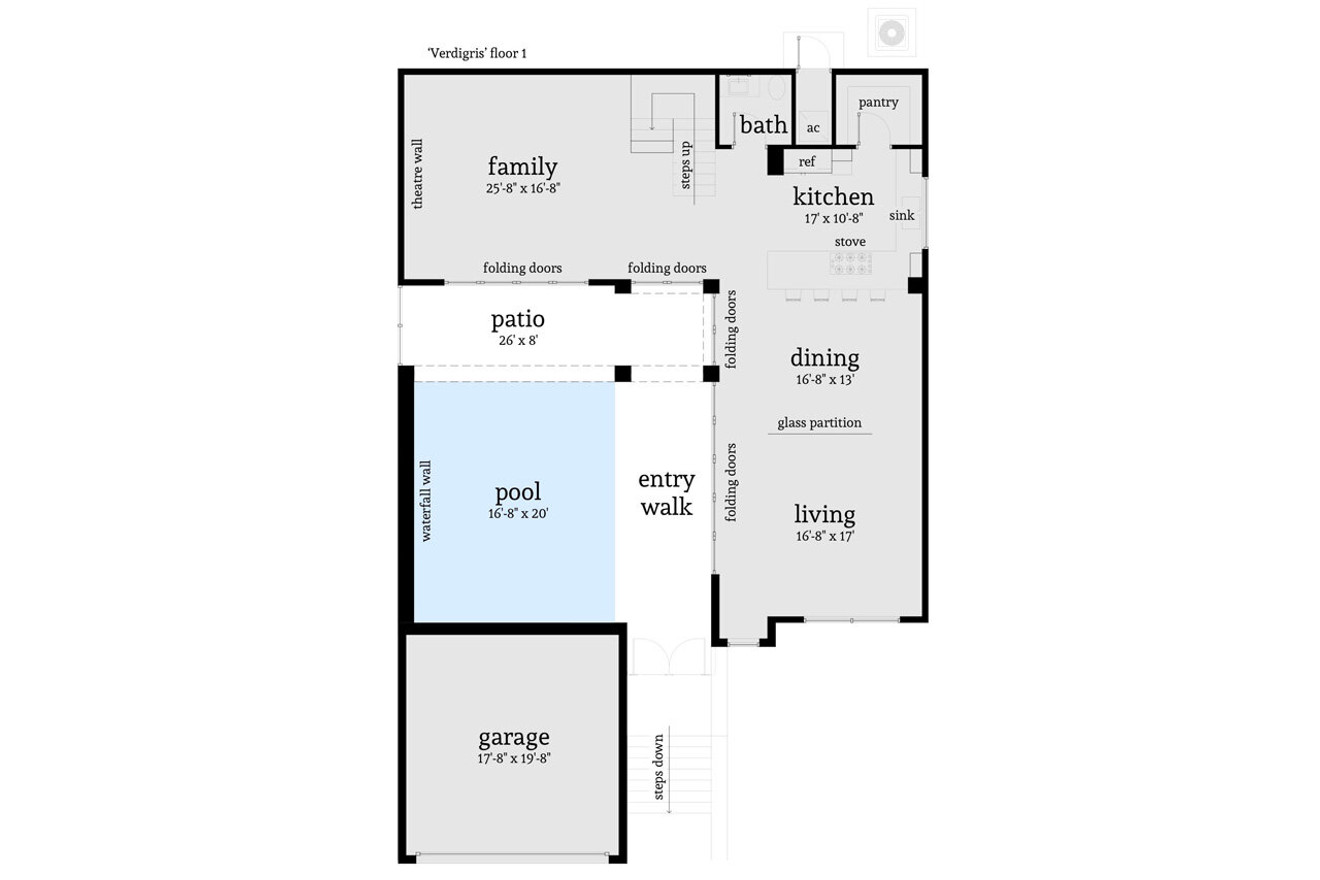

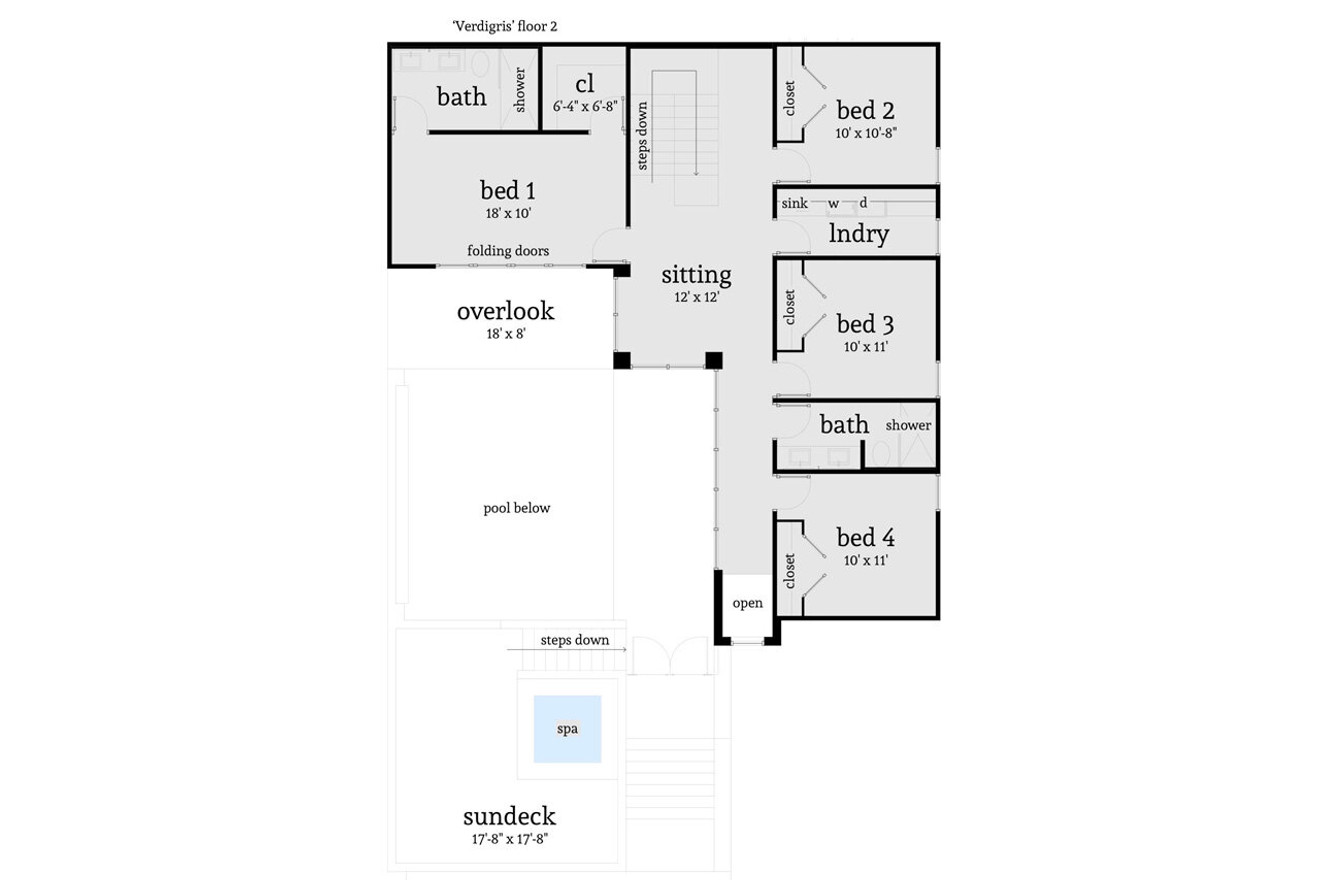

* The Floor Plans are views of each floor, looking down from above. They show window and door locations, room dimensions, plumbing fixture locations, etc.
* Exterior Elevations are flat views of the outside of the house, looking at the front, left, rear and right.
* Building Sections show cutaway views of the home structure.
* The Foundation Plan shows the location of footings and concrete slabs.
* Floor & Roof Layouts show the outline of the floor truss systems, and slopes, valleys, ridges and hips on the roof.
* The Wall Section is a detailed view showing how the walls are assembled.
* The Electrical Plan shows the outlets, switches, lights and fans on the floor plan.
* Construction Notes and typical Details.
New to plan buying?
Stairs lead up to the entry walkway. The interior of the home faces the pool courtyard which is filled with the sound of the waterfall wall. Living and dining are divided by a textured glass wall, and open to the pool with folding doors. The upper floor houses 4 bedrooms, laundry room and sitting area. Stairs lead to the sundeck and hot tub above the garage.
