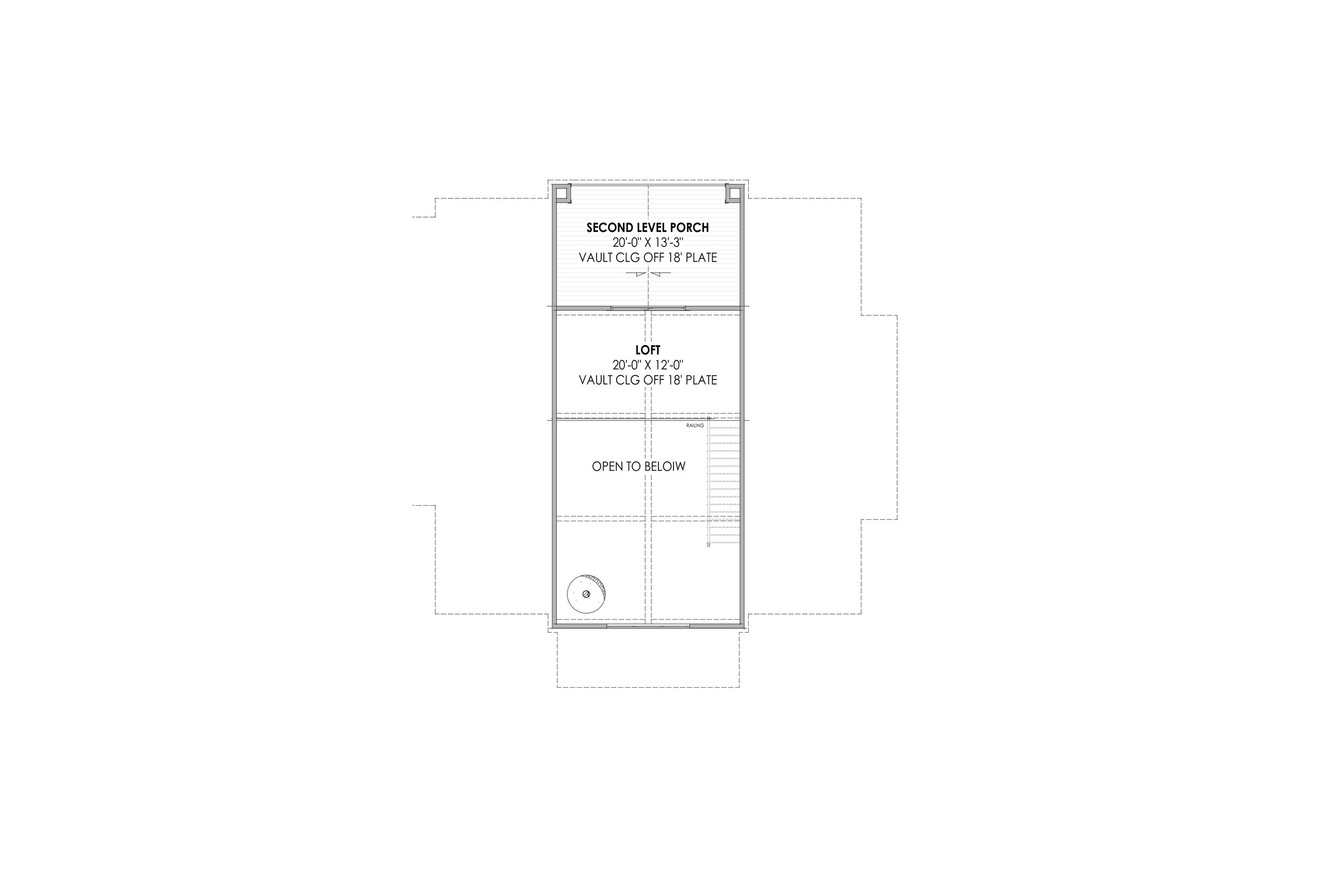

  • Mountain Rustic House Plan - 27804 - 2nd Floor Plan
  • At a glance
  • Square Footage: Total Living 2562 Square Feet
  • Bedrooms 4 Bedrooms
  • Baths Full 2 Full Baths
  • Floors 2 Floors
  • Garage Bays Min 3 Car Garage
