Great Room, Master Bedroom Ceiling: 10' Stepped
Each plan set is drawn at 1/4"=1' scale and includes the following drawings:
Front Rendering: A rendering of the front elevation along with general construction notes.
Elevations: Shows the front, sides, and rear, including wall and window heights, exterior materials, soffit heights, roof pitches, etc.

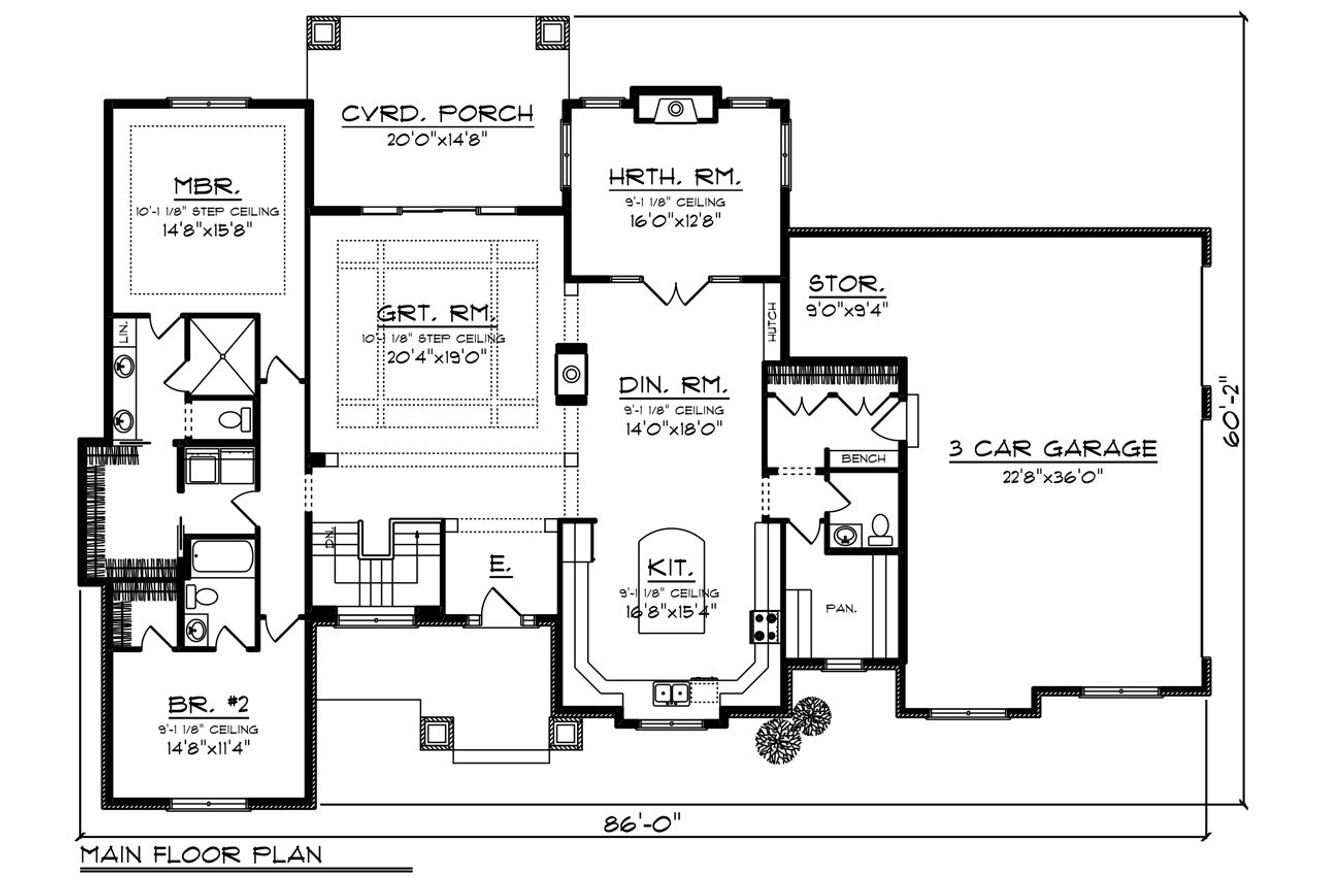

Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, roof, wall, and floor structure from above (if any), ceiling heights, etc.
Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor roof structure as well.
Foundation Plan: Shows the location of all concrete walls and footings, beams supporting the floor structure and structure above, and foundation details. If there is a basement, a basement plan is included which shows all basement details.
Roof Plan: Shows roof outlines, lines of bearing walls below, roof framing details, etc.
Section & Details: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation. Stairway, kitchen elevations, and wall section details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
Electrical Plan: A schematic layout of all lighting, switches and electrical outlets drawn at 1/8" = 1'. Electrical general notes are provided as well.
This Craftsman ranch style home is sure to impress with exterior detailing such as beams, massive porch columns and the perfect mix of stone, horizontal and shingle siding. As you enter, you’ll be welcomed by the detailed ceiling of the spacious great room. The kitchen is at the front of the home and transitions easily into the dining and hearth rooms creating a spacious living area. The bedrooms are on the left side of the home, including the master suite with step ceiling, walk-in closet and private bathroom. The second bedroom also has a private bathroom and walk-in closet. A three-car, side-load garage with extra storage completes the home.
