General Notes and specifications, Such As:
a) Designs Loads
d) Structural Steel
g) Other Misc. specs.
Front, Rear and Side Elevations @1/4” scale
Foundation plan (1/4” scale) indicating beam and column sizes along with lower level framing
Reinforced foundation and footing details

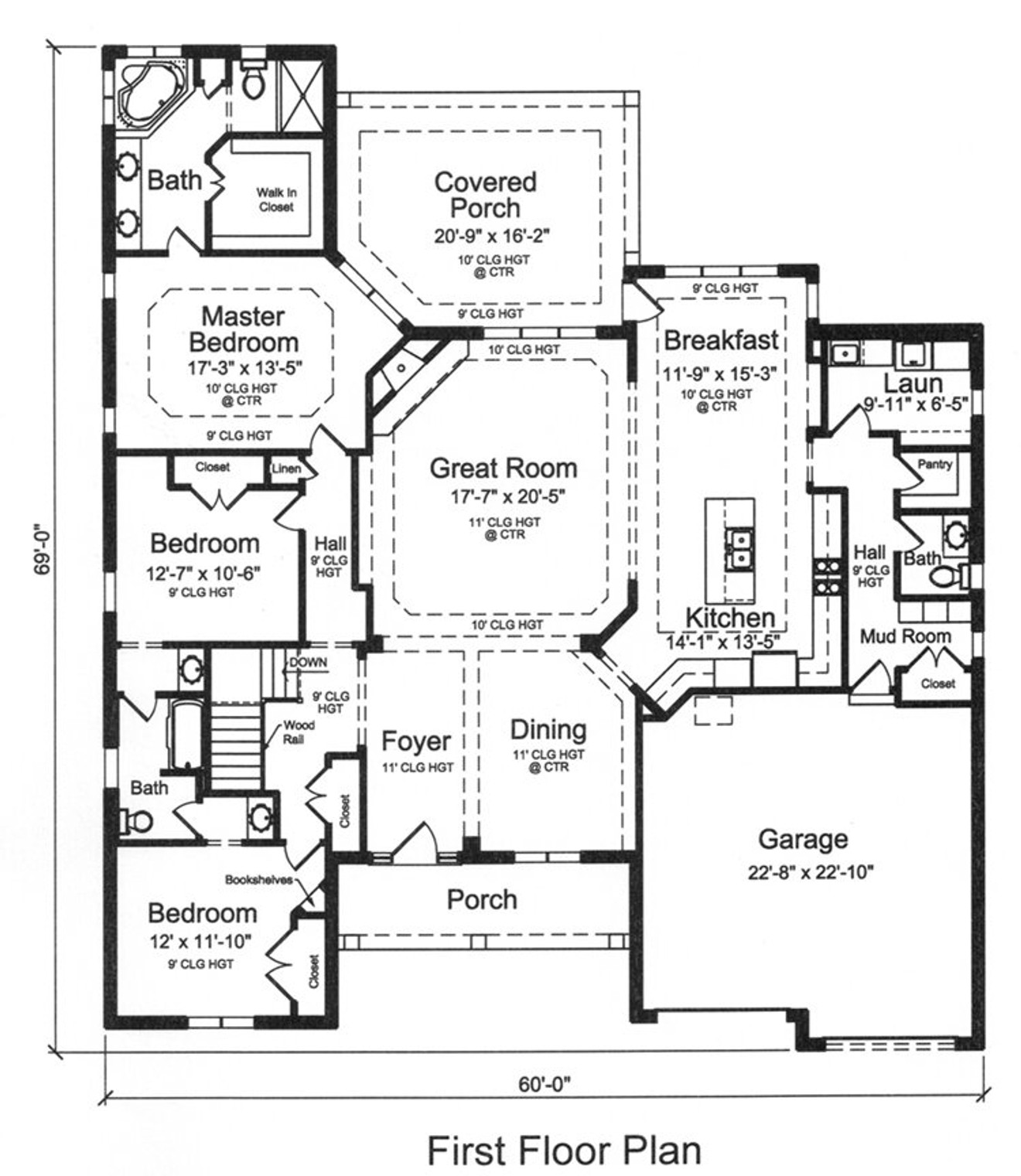

First & Second Floor plan (1/4” scale) includes all necessary framing information, window rough openings, beam sizes and framing details for specialized areas.
Stairs, sections, cabinet layouts, window flashing and miscellaneous details necessary for understanding of construction methods.
Roof plan (1/8”) indicating pitches and wall heights as well as truss profiles indicating hell heights and raised ceiling areas
Wall section indicating standard materials and detailing for typical wall construction.
a) Floor joists
b) Exterior wall framing
c) Wall heights
Roof framing is indicated as manufactured engineered roof trusses. Truss profiles are included.
New to plan buying?
This popular one level floor plan is offering a beautiful exterior of brick and stone with covered porch and a spacious open interior floor plan. Angles, high ceilings, two secondary bedrooms (sharing a Jack and Jill bath), and a Master Suite with"spa like" bath combine to create a luxurious lifestyle and step saving convenience. The Kitchen proudly showcases an island with seating, wall oven and generous counter prep area. A first floor Laundry Room, walk-in Pantry, Mud Room and half bath complete this home making it a practical as well as impressive home for your family.
