Roof Structure is: curved laminated wood beams, a 2x deck, and curved metal roofing.
* The Floor Plans are views of each floor, looking down from above. They show window and door locations, room dimensions, plumbing fixture locations, etc.
* Exterior Elevations are flat views of the outside of the house, looking at the front, left, rear and right.
* Building Sections show cutaway views of the home structure.
* The Foundation Plan shows the location of footings and concrete slabs.
* Floor & Roof Layouts show the outline of the floor truss systems, and slopes, valleys, ridges and hips on the roof.
* The Wall Section is a detailed view showing how the walls are assembled.
* The Electrical Plan shows the outlets, switches, lights and fans on the floor plan.
* Construction Notes and typical Details.
New to plan buying?

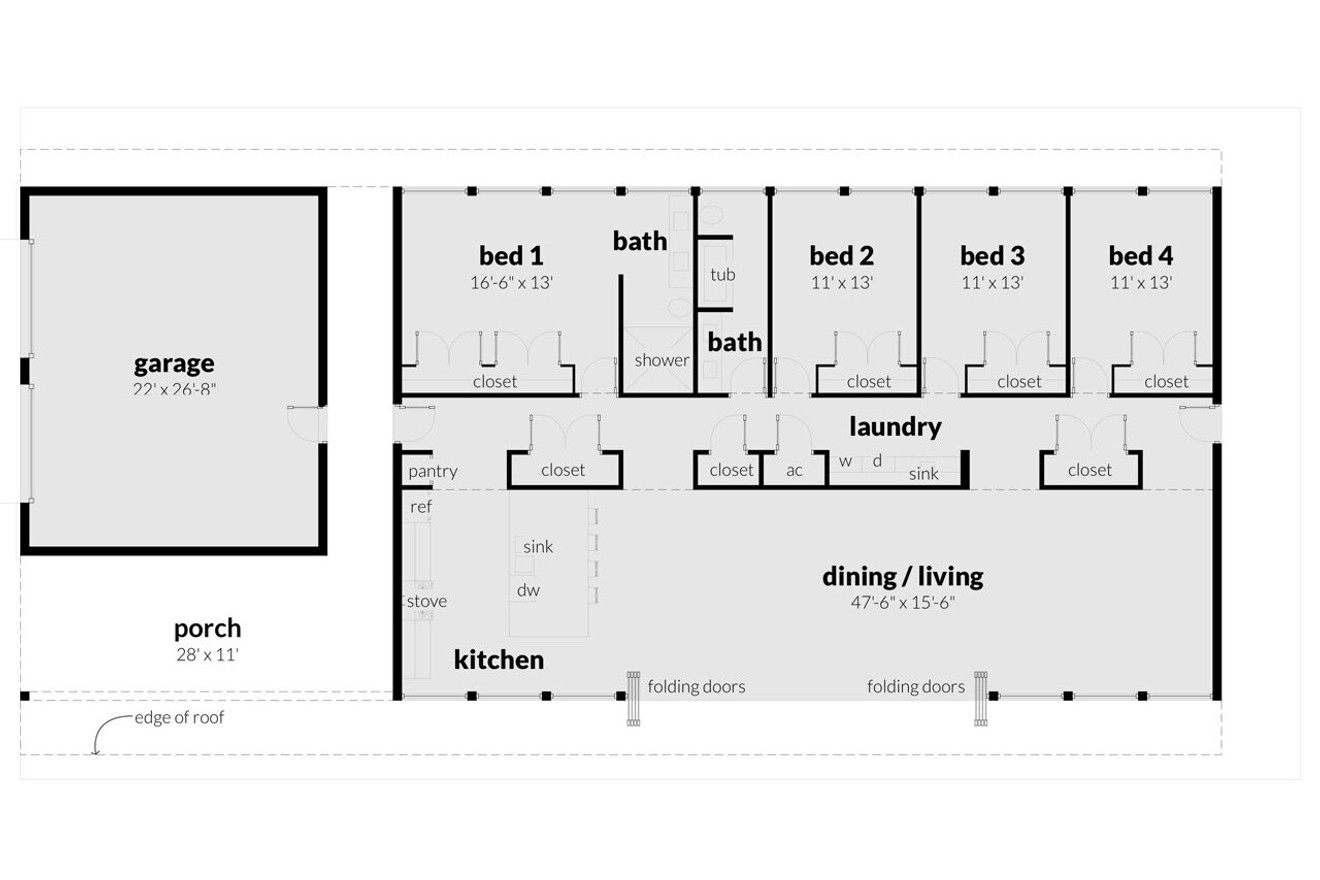

Spades feature 4 bedrooms with lots of storage and the laundry area directly off the hall. The floors are colored concrete. Folding doors open the entire living space to the outdoors. In front of the two car garage is a covered sitting porch under a cantilever roof.
