The second-floor ceiling ranges between 8'-0" and 10'-0" and the basement ceiling height is 8'-0"
Each plan set is drawn at 1/4"=1' scale and includes the following drawings:
Artist's Rendering: An artist's drawing of the home, usually viewed from the front, and general construction notes.
Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.

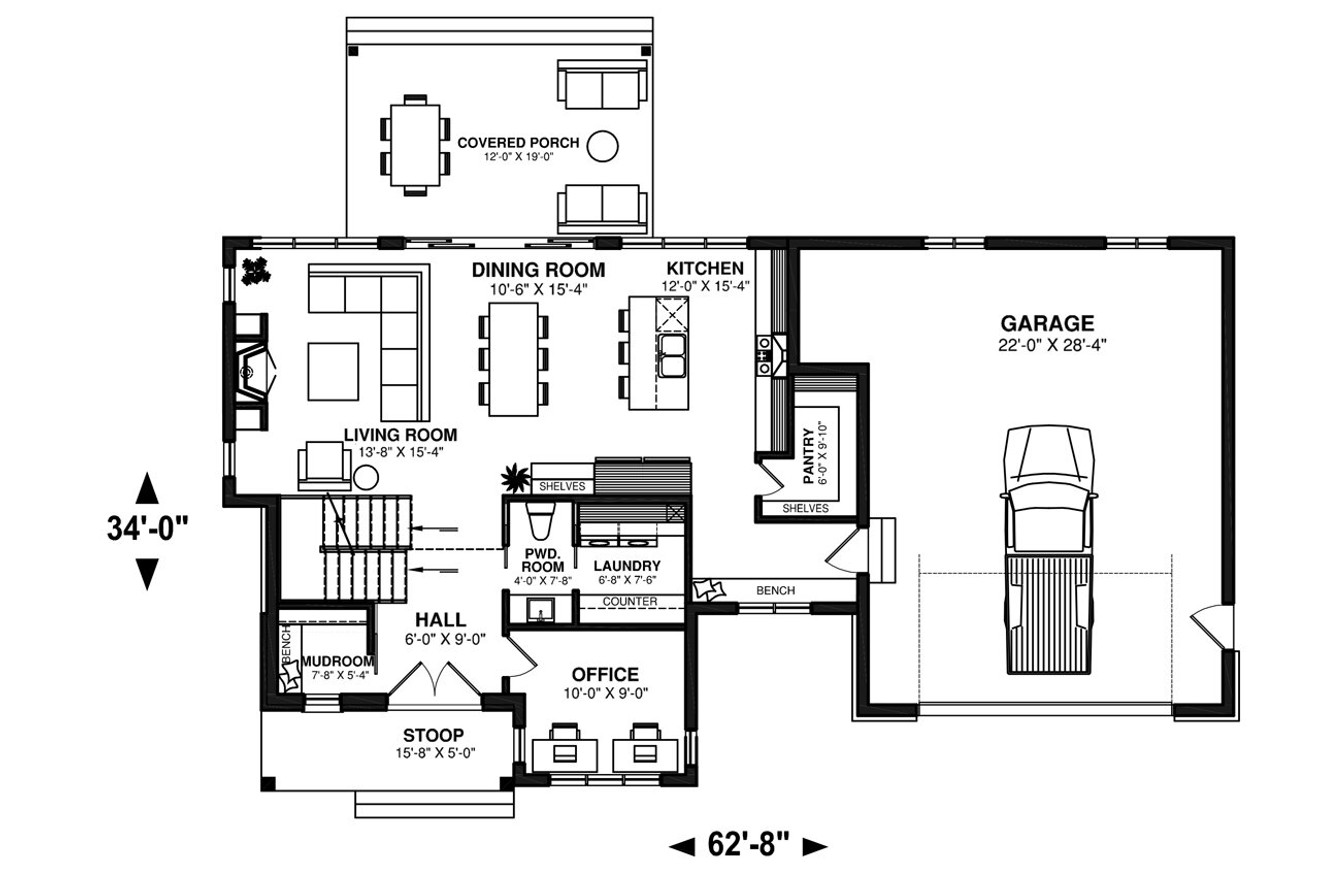

Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details.
Floor Framing Plan (if any): Shows location and spacing of floor joists and supporting walls or beams.
Roof Framing Plan: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc.
Section & Details: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation. Specific details such as fireplaces, stairways, decks, etc. are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
New to plan buying?
The Sunny Haven 2 is a stunning farmhouse plan. This two story 3 bedroom house plan is sure to please. A French door opens to the entry hall with cozy mud room and home office. Beyond the entry hall the floor plan opens to the great room. Living room with cozy fireplace is open to the dining room which has a double set of sliding glass doors that open to the covered porch. For those that enjoy causal living and the outdoors the Sunny Haven is an ideal home design. The kitchen is open to the dining room with an island with eating bar to provide some visual separation. A large walk-in pantry is around the corner and a mud hall helps transition from the living area to the attached 2 car garage. Upstairs are all 3 bedrooms. The master bedroom offers a large walk-in closet and private bathroom with both shower and soaking tub. The additional two bedrooms share jack-and-jill access to the other full bathroom. The basement provides flexibility for homeowners to either use this as storage or to finish the space to add a recreation room, hobby or crafts space, exercise studio or whatever else!
