Each plan set is drawn at 1/4"=1' scale and includes the following drawings:
Artist's Rendering: An artist's drawing of the home, usually viewed from the front, and general construction notes.
Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details.
Floor Framing Plan (if any): Shows location and spacing of floor joists and supporting walls or beams.
Roof Framing Plan: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc.
Section & Details: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation. Specific details such as fireplaces, stairways, decks, etc. are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
New to plan buying?

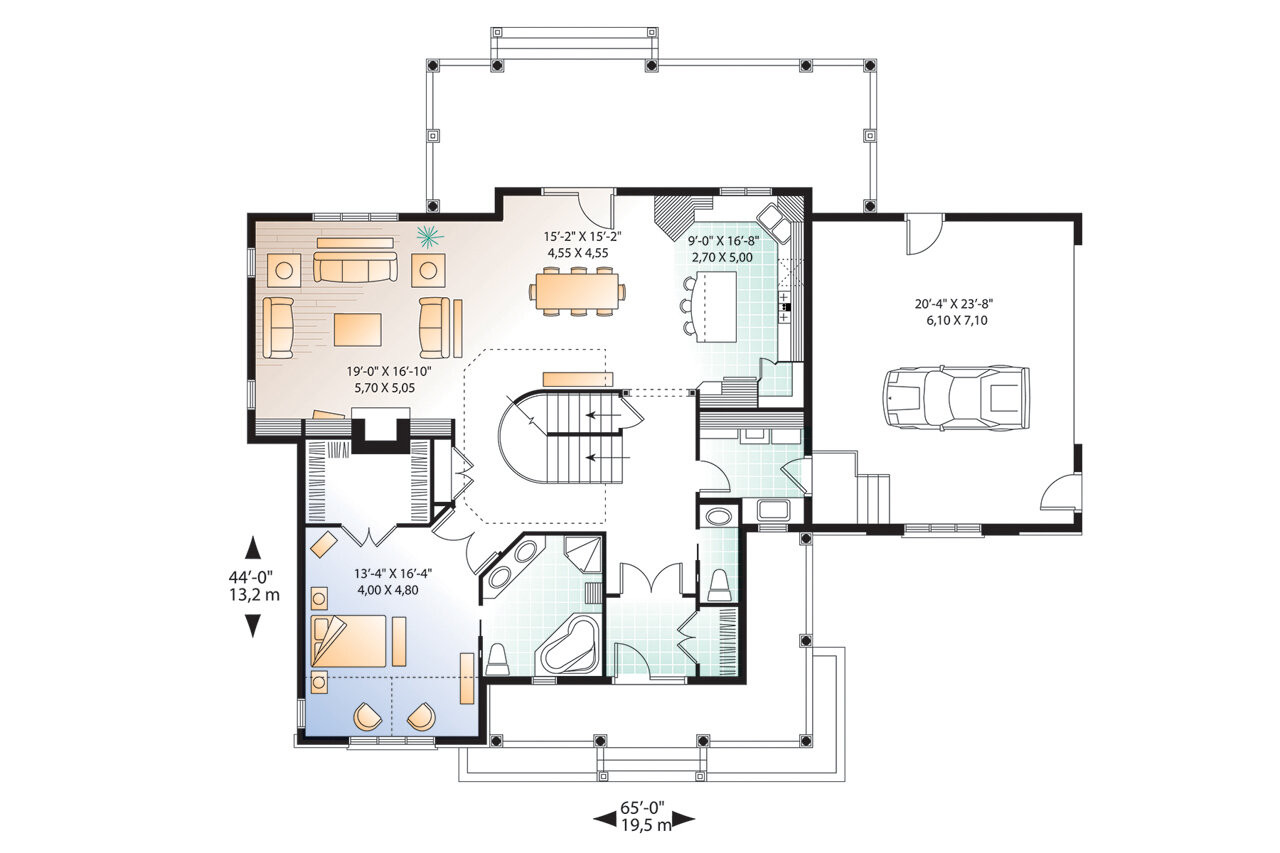

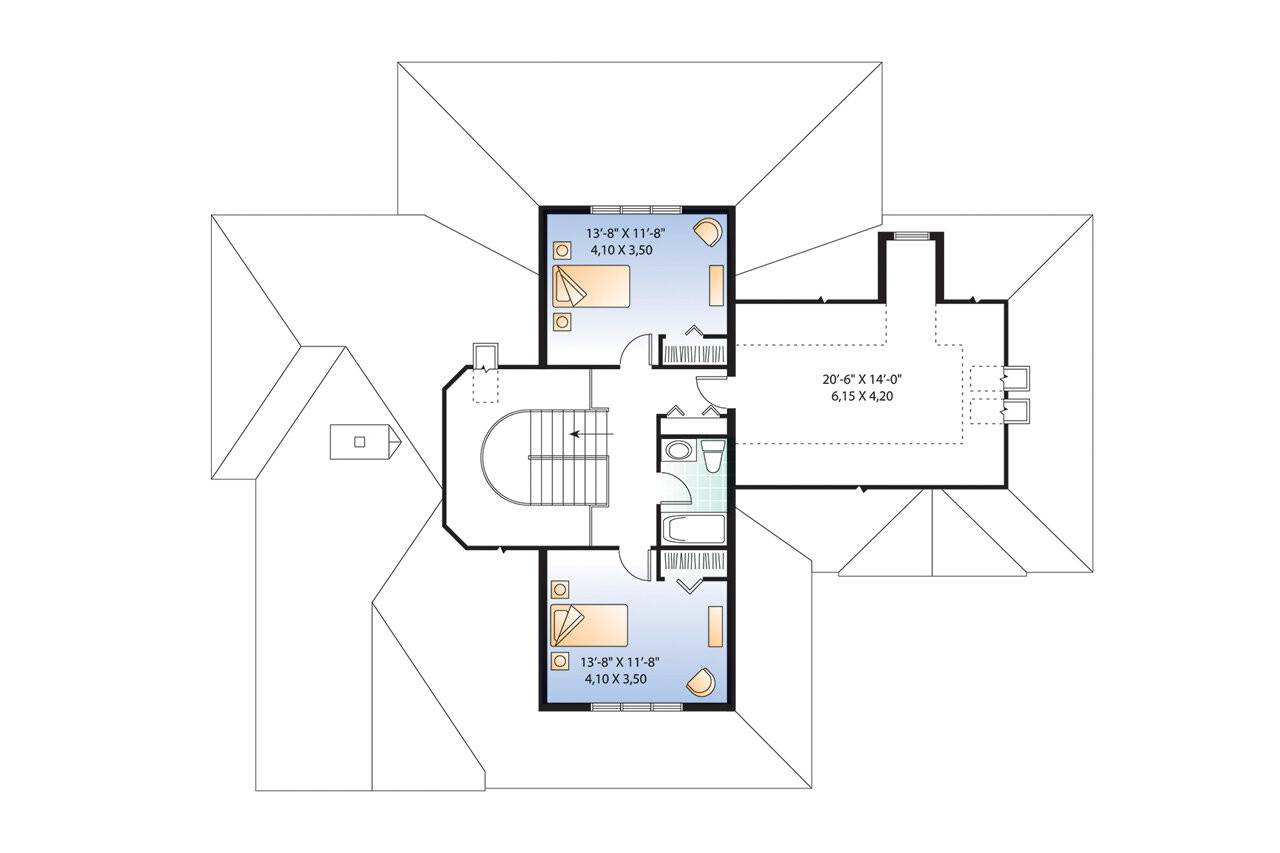

Country-style Glenhaven house plan has a welcoming wrap around front porch. Once inside the closed foyer with coat closet you pass through a set of french doors into the home. The main level of this home features open concept family room with a cozy fireplace trimmed with shelves. This room is open to the dining and kitchen area. The well appointed kitchen has a large island with seating to one side and a walk-in corner pantry. The master suite is also on the main level and has a luxurious master bathroom. Upstairs is two additional bedrooms and a bonus room.
9' ceiling on 1st level. Activity area open, towards the back. Remarkable master suite on 1st floor. Large covered porch in the back. Centered staircase. Bonus space above the garage.
