Each plan set is drawn at 1/4"=1' scale and includes the following drawings:
Artist's Rendering: An artist's drawing of the home, usually viewed from the front, and general construction notes.
Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details.
Floor Framing Plan (if any): Shows location and spacing of floor joists and supporting walls or beams.
Roof Framing Plan: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc.
Section & Details: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation. Specific details such as fireplaces, stairways, decks, etc. are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
New to plan buying?

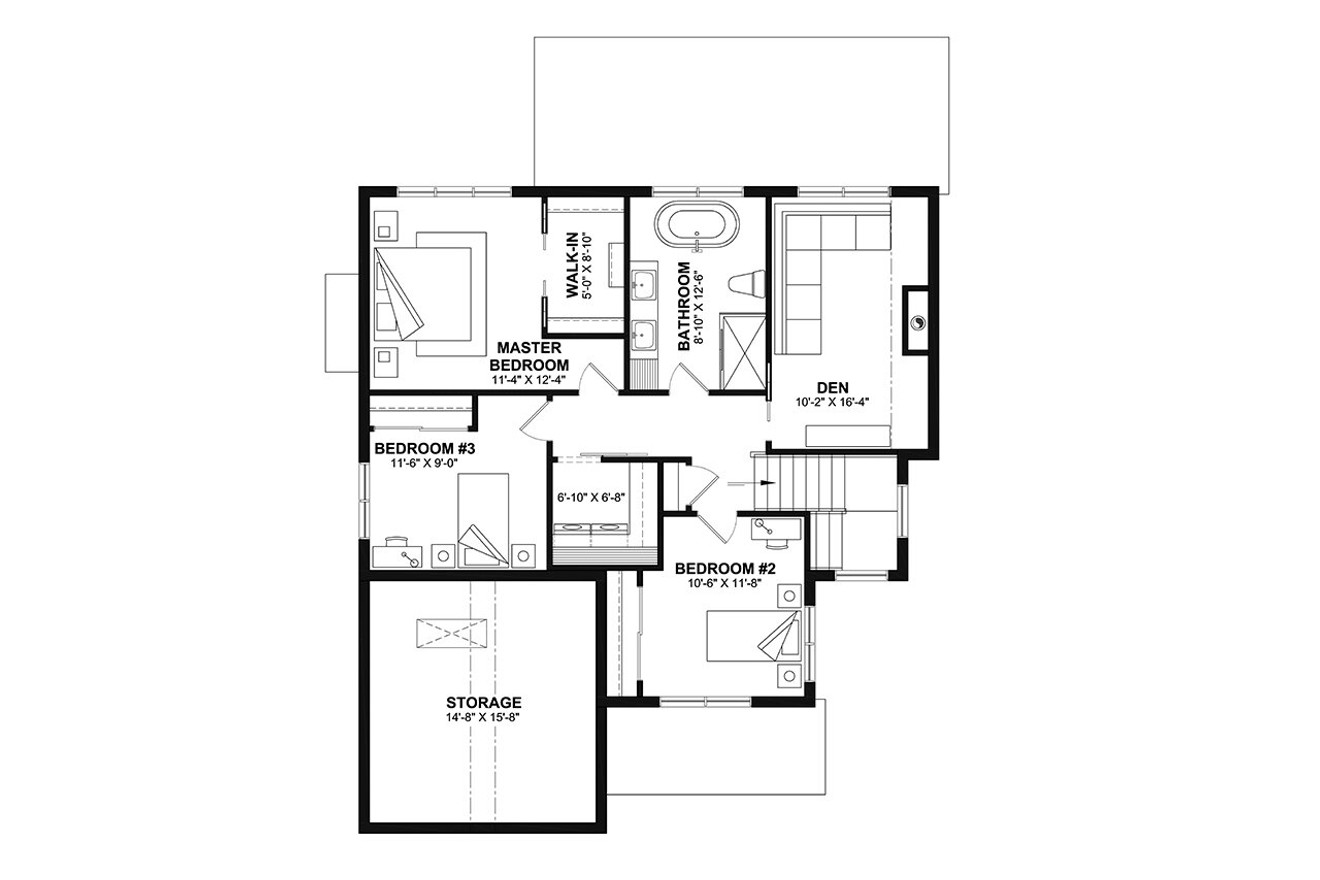

Those looking to maximize their narrow building lot, look no further than the Leo. This 2 story house plan is only 37'-6" wide and offers a comfortable 2150 square foot floor plan. The farmhouse exterior is eye-catching and the cozy covered front porch makes a welcoming first impression. Inside the foyer is separated from the living room providing welcomed privacy between the front door and the living area. A few steps to the left a barn door slides to reveal the mud room. A bench and coat closet offer conveinent orgnaization for shoes and bags. The mud room also connects the home to the 1 car garae which offers additional storage from drop down attic access. The back of the first floor is filled with the great room plus the home office which has direct access to the side yard. The kitchen is well appointed and offers a walk-in pantry and a center island with eating bar. The flames in the firepace can be enjoyed from the kitchen where conversations can flow as freely as the floor plan to the living room and dining room. On warm summer days the dining room can be opened to the terrace. The second floor is access from the stairs that wind up from the foyer. here are all three bedrooms which share a full bathroom with separate soaking tub and walk-in shower plus dual vanities. Also on the second floor is the laundry room and a large den that could serve as a private family room.
