General Notes and specifications, Such As:
a) Designs Loads
d) Structural Steel
g) Other Misc. specs.
Front, Rear and Side Elevations @1/4” scale

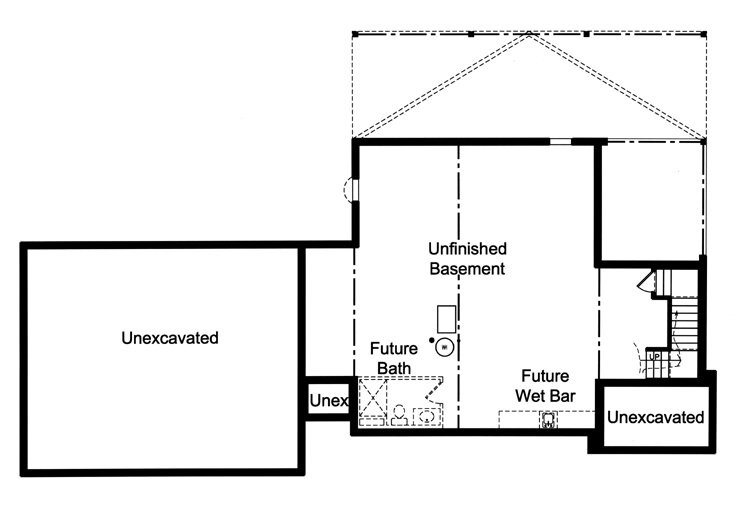

Foundation plan (1/4” scale) indicating beam and column sizes along with lower level framing
Reinforced foundation and footing details

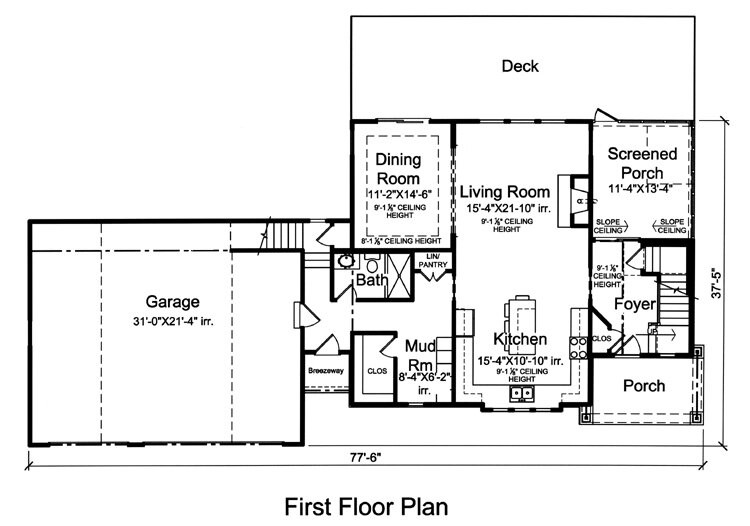

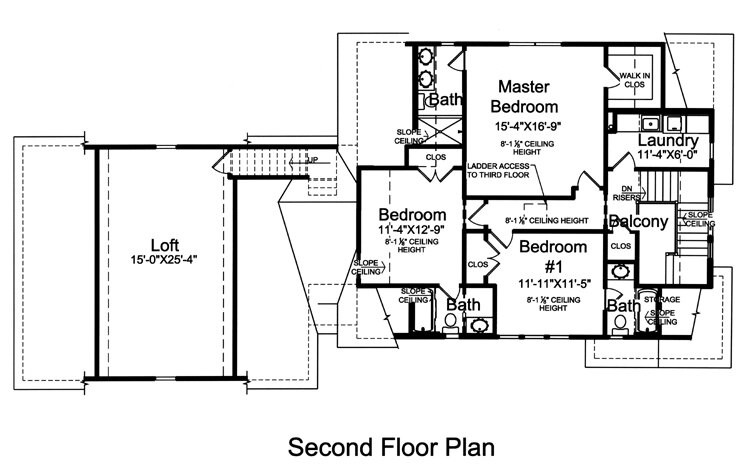

First & Second Floor plan (1/4” scale) includes all necessary framing information, window rough openings, beam sizes and framing details for specialized areas.
Stairs, sections, cabinet layouts, window flashing and miscellaneous details necessary for understanding of construction methods.
Roof plan (1/8”) indicating pitches and wall heights as well as truss profiles indicating hell heights and raised ceiling areas
Wall section indicating standard materials and detailing for typical wall construction.
a) Floor joists
b) Exterior wall framing
c) Wall heights
Roof framing is indicated as manufactured engineered roof trusses. Truss profiles are included.
New to plan buying?
This beautiful home of Siding, Shakes and Stone speaks of a vacation home/retreat. The open floor plan of the extra-large Kitchen with island and Living Room with fireplace lends itself to a truly Great Room for communal gathering. The Dining Room enjoys a rear yard view that is shared by a restful Living Space, Screened Porch and deck. The Mud Room area makes a great transition from outdoor acativities.
Three bedrooms and the Laundry are located on the sleeping level of the home with the Master Bedroom enjoying a walk-in closet, double bowl vanity, shower and view to the rear view. Each of the other bedrooms also enjoys a private bath and large closets. A three car garage provides storage for outdoor toys and the loft provides additional storage or can be converted to finished area if needed.
