Each plan set is drawn at 1/4"=1' scale and includes the following drawings:
Artist's Rendering: An artist's drawing of the home, usually viewed from the front, and general construction notes.
Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.

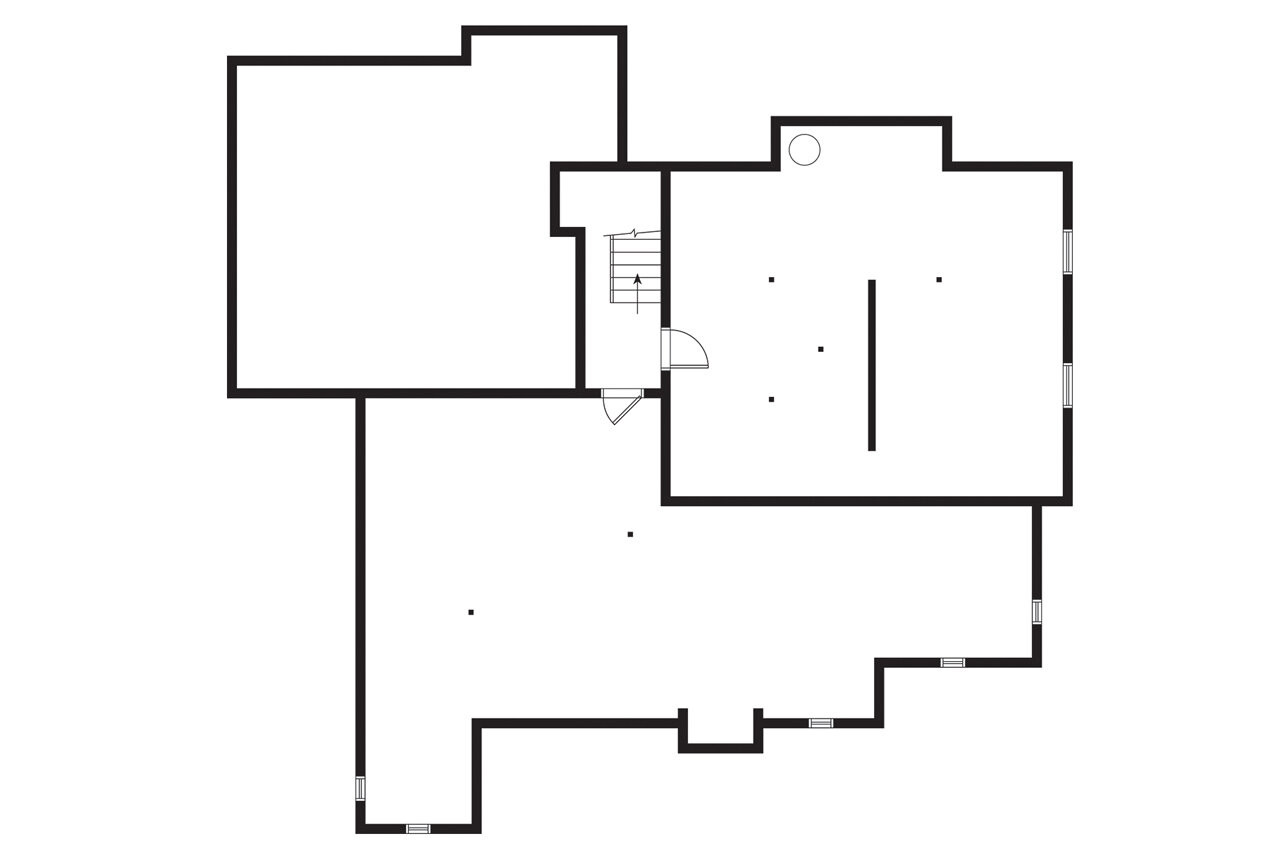

Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details.
Floor Framing Plan (if any): Shows location and spacing of floor joists and supporting walls or beams.
Roof Framing Plan: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc.
Section & Details: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation. Specific details such as fireplaces, stairways, decks, etc. are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
New to plan buying?

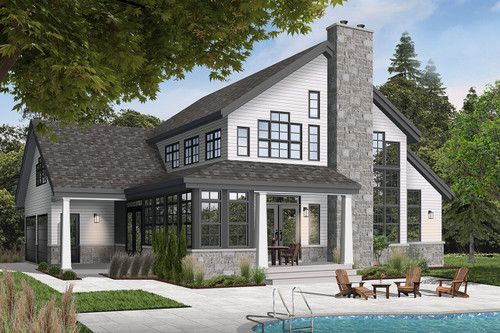

For those who enjoy the outdoors and natural light the Wakefield 2 is an ideal country house plan to consider. The back of this home design is filled with windows making it feel as if there is hardly any separation between the inside and outside of the home.

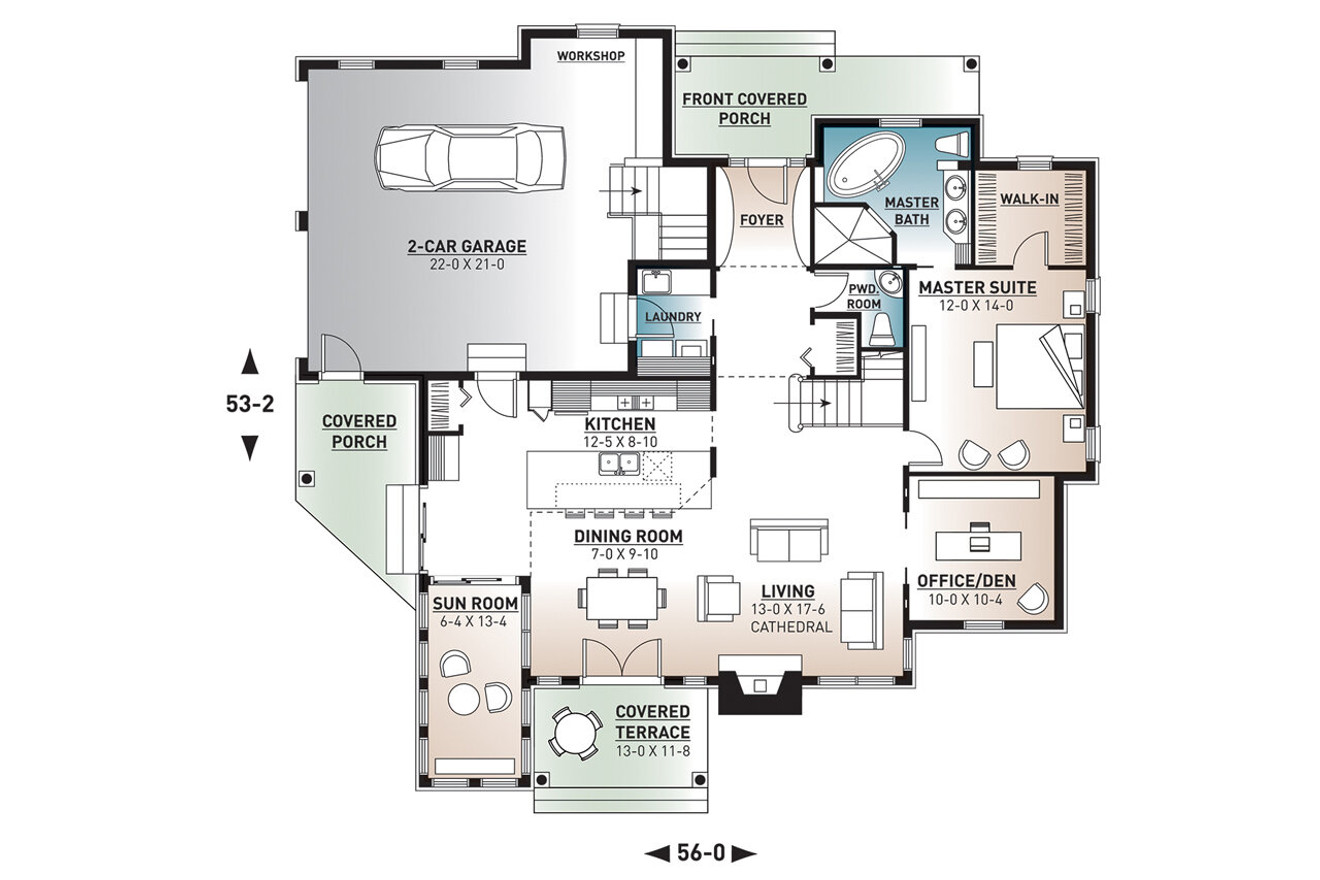

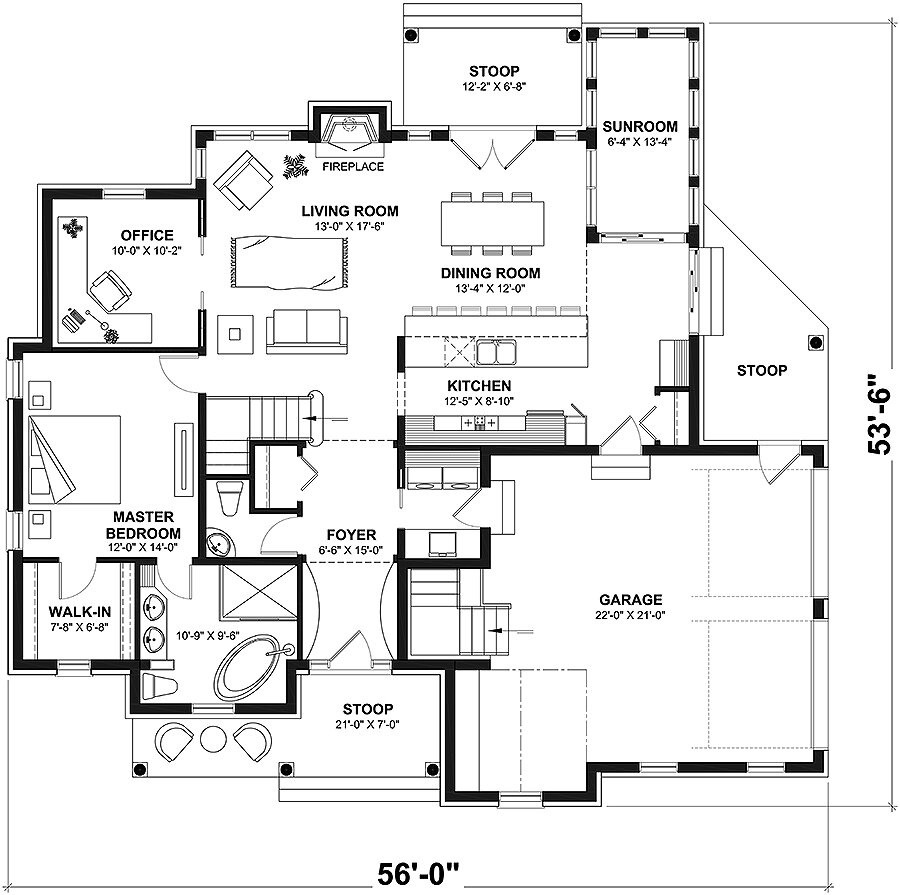

Passing through the trio of columns along the front porch the entry door is recessed and sheltered from the elements. Stepping inside the foyer feels spacious and welcoming. The entry hall first leads pass a half bathroom, a coat closet, and the pass-through laundry room with access to the attached two car garage.
At the end of the entry hall the floor plan opens up to the spacious and bright great room. To the left, an L-shape stair case leads to the second floor. The great room is a seamless blend of the living room, dining room, and kitchen. The rich display of windows makes this space feel light and airy. A fireplace is centered along the back wall and can be enjoyed throughout the great room. The ceiling in the living room is decorated with a cathedral ceiling. A set of pock doors off the living room lead to the home office. If work space is not needed then this room could be furnished as a den, study, or hobby room.
Near the dining room, a sliding door leads to the sun room. This bright space is a wonderful spot to start the day off over a cup of coffee or tea.
The master bedroom completes the first floor. Master suite features include a walk-in closet and private bathroom complete with walk-in shower, soaking tub and twin sinks.

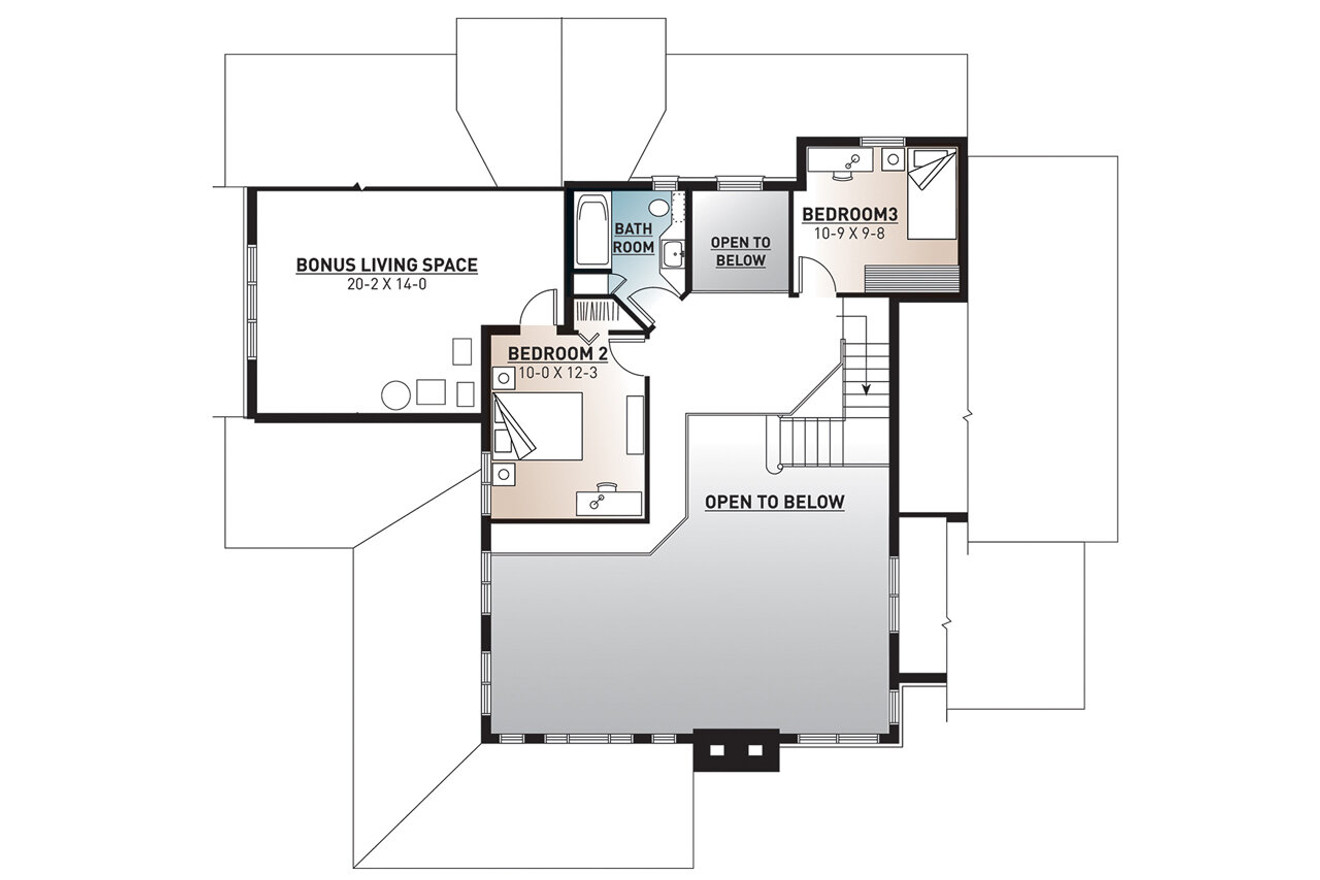

To provide the master bedroom with additional privacy, this two story house plan has the two additional bedrooms on the upper floor. Joined by a comfortable sized loft, the second floor also has a full bathroom and a bonus room accessed through one of the bedrooms. The bonus room can be completed to serve as a family or game room.
