General Notes and specifications, Such As:
a) Designs Loads
d) Structural Steel
g) Other Misc. specs.
Front, Rear and Side Elevations @1/4” scale
Foundation plan (1/4” scale) indicating beam and column sizes along with lower level framing
Reinforced foundation and footing details
First & Second Floor plan (1/4” scale) includes all necessary framing information, window rough openings, beam sizes and framing details for specialized areas.
Stairs, sections, cabinet layouts, window flashing and miscellaneous details necessary for understanding of construction methods.
Roof plan (1/8”) indicating pitches and wall heights as well as truss profiles indicating hell heights and raised ceiling areas
Wall section indicating standard materials and detailing for typical wall construction.
a) Floor joists
b) Exterior wall framing
c) Wall heights
Roof framing is indicated as manufactured engineered roof trusses. Truss profiles are included.
New to plan buying?

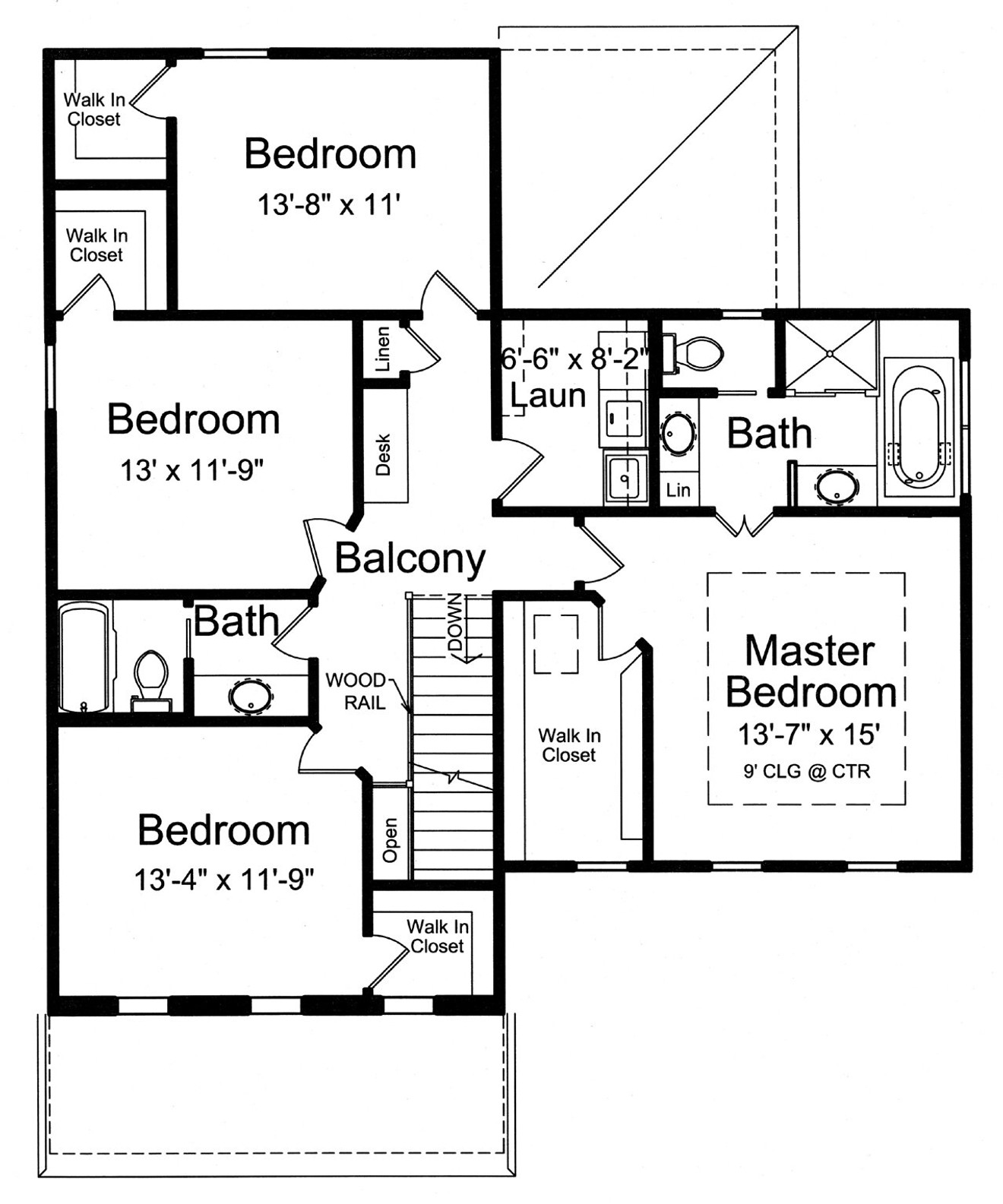

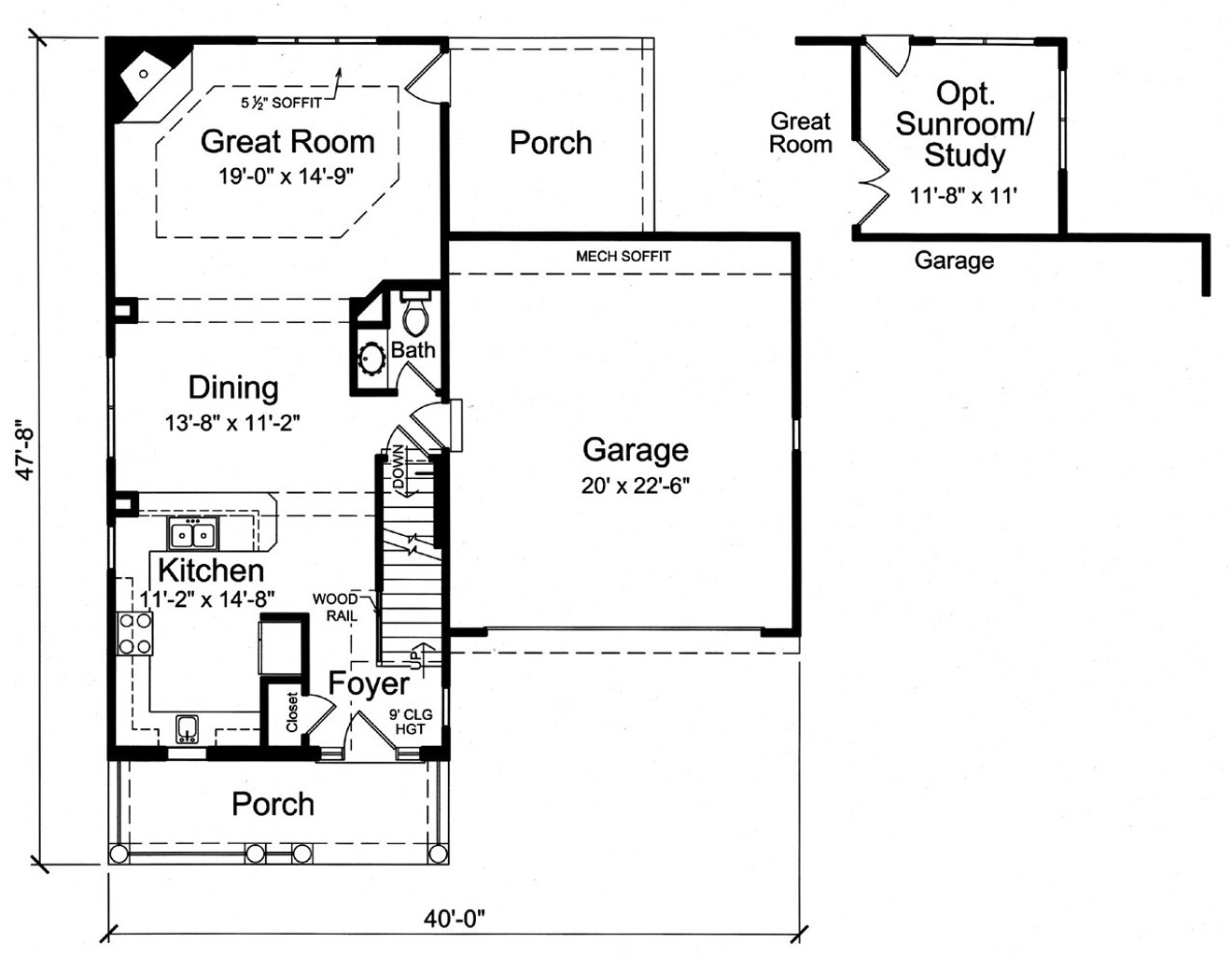

An open floor plan features a cover front porch and a Kitchen to the front of the home. Counter seating complements the Dining Area for a seving station or extra seating and the Great Room showcases a rear view and corner fireplace. An optional Sunroom or Study adds exteded living space. The Laundry Room and 4 large bedrooms each with a walk-in closet are located on the second floor. The Master Suite pampers the homeowner with a tub, shower and two vanities in addition to a raised ceiling in the Master Bedroom. This lovely home is designed for a narrow lot while delivering the beauty and curb appeal of a much larger home.
