With its aluminum, stone and wood exterior facing, this intergenerational house will blend unobtrusively in a residential area and is ideally suited for a couple who wants to live with aging parents. Consisting of two independent units, this home is 36 feet wide by 38 feet deep, and provides a total living area of 2,051 square feet.
Each unit has its own entrance, one in front of the house, and the other on the side. Furthermore, both units can be accessed from the inside through a connecting door. The ground floor has a total living area of 1,328 square feet. The main unit has nine-foot high ceilings and features a powder room with a laundry area, a living room, a dining room and a kitchen that includes a large island with a sink. The smaller second unit features one bedroom in the back with a large walk-in closet, a complete bathroom, a closet for the washer and dryer, as well as a living room, a dining room and a kitchen with an island that can sit three people.

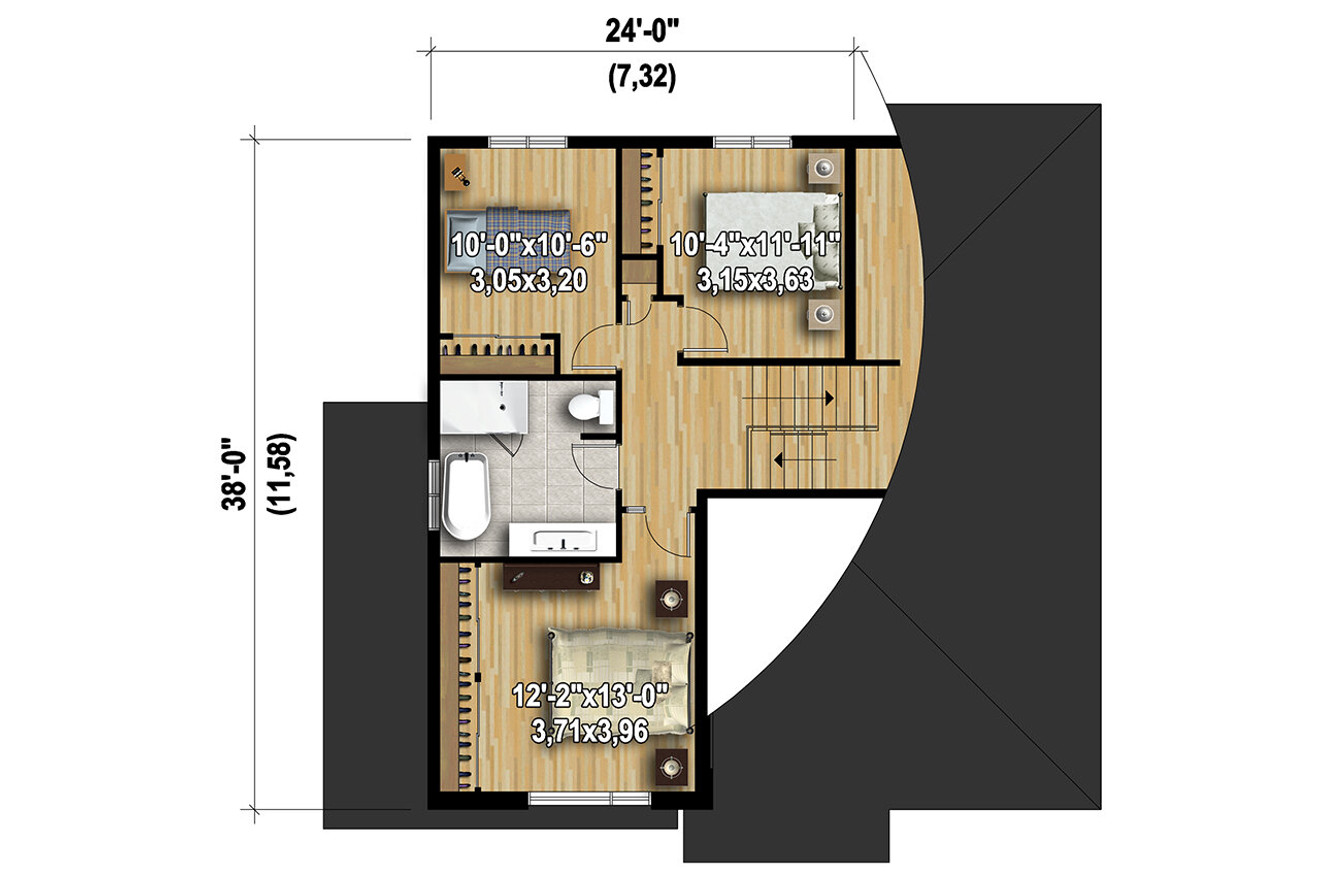

The main unit has an upper floor with a 723 square-foot living area that features a bathroom with a freestanding bathtub and a separate shower, as well as three bedrooms, including a master bedroom with a wall-to-wall closet.
Plan 55632
Photographs may show modifications made to plans. Copyright owned by designer.
- At a glance
-
2051 Square Feet
-
4 Bedrooms
-
2 Full Baths
-
2 Floors
- More about the plan
- Pricing
- Basic Details
- Building Details
- Interior Details
- Garage Details
- See All Details
Plan details
Basic Details
Building Details
Interior Details
Garage
What's Included in a Plan Set?
Artist's Rendering: An artist's drawing of the home, usually viewed from the front, and general construction notes.
Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, posts, ceiling heights, etc.
Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
Foundation Plan: Shows the location of all concrete footings, floor beams, posts, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details.
Floor Framing Plan (if any): Shows location and spacing of floor joists and supporting walls or beams and posts. Framing plans are integrated in each floor plan.
Roof Plan: Shows roof outlines.
Section & Details: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation. Engineered trusses, beams, roof framing details, etc. Specific construction and insulation details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
New to Plan Buying?
55632
Plan Image
$1,070.00
- SKU:
- 149 - 51114
- Plan Number:
- 55632
- Pricing Set Title:
- (D) 2001 - 2500
- Designer Plan Title:
- 51114
- Date Added:
- 11/10/2022
- Date Modified:
- 04/10/2024
- Designer:
- commandes@planimage.com, Philippe.auclair@planimage.com
- Structure Type:
- Single Family
- Best Seller (Rank #):
- 10000
- Square Footage: Total Living:
- 2051
- Square Footage: 1st Floor:
- 1328
- Square Footage: 2nd Floor:
- 723
- Floors:
- 2
- FLOORS_filter:
- 2
- Bedrooms:
- 4
- BEDROOMS_filter:
- 4
- Baths Full:
- 2
- FULL BATHROOMS_filter:
- 2
- Baths Half:
- 1
- HALF BATHROOMS_filter:
- 1
- Ridge Height:
- 26'8"
- Overall Exterior Depth:
- 38
- Overall Exterior Width:
- 36
- Main Floor Ceiling Height:
- 9'
- Second Floor Ceiling Height:
- 8'
- Available Foundations:
- Basement
- Default Foundation:
- Basement
- Available Walls:
- 2x6 Wood Frame
- Default Wall:
- 2x6 Wood Frame
- Ext Wall Material:
- Stone/Siding
- Lot Type:
- Narrow Lot (
- Lot Slope:
- Level Lot
- Roof Pitch:
- 6/12
- Primary Style:
- Contemporary
- Secondary Styles:
- Modern
- Secondary Styles:
- Prairie
- Collections:
- Unique House Plans
- Master Suite Features:
- Main Floor Master Suite
- Master Suite Features:
- Second Floor Master Suite
- Master Suite Features:
- Walk In Closet
- Interior Features:
- Great Room
- Interior Features:
- Guest Room, Suite, or Apartment
- Kitchen Features:
- Breakfast Nook/Dining Area
- Kitchen Features:
- Kitchen Island
- Utility Room Features:
- Close to Bedrooms
- Utility Room Features:
- Main Floor Utility Room
- Exterior & Porch Features:
- Covered Patio
- Styles:
- Contemporary House Plans
- Styles:
- Modern House Plans
- Styles:
- Prairie House Plans
- Collections:
- 2 Story House Plans
- Collections:
- 4 Bedroom House Plans
- Collections:
- Narrow Lot House Plans
- Product Rank:
- 7617
- Plan SKU:
- 51114
- Max Price:
- 2090.00
- Min Price:
- 1070.00
- Regions:
- Canadian House Plans/Quebec Home Plans
