Each plan set is drawn at 1/4"=1' scale and includes the following drawings:
Artist's Rendering: An artist's drawing of the home, usually viewed from the front, and general construction notes.
Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details.
Floor Framing Plan (if any): Shows location and spacing of floor joists and supporting walls or beams.
Roof Framing Plan: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc.
Section & Details: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation. Specific details such as fireplaces, stairways, decks, etc. are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
Sure to be a great addition to wherever it is built, the Keepsake 1 is a Craftsman house plan that is sure to please homeowners and builders alike. The trio of natural materials creates an eye-catching exterior sure to have the neighbors stopping for a second look.
Stepping inside the entry is designed as an airlock. A bench is to the right and the coat closet is through the second door. The entry hall provides two options. To the left, the hallway leads pass a full bathroom, a storage closet and terminates at the master bedroom.
The master suite is separated from the other bedrooms and serves as a wonderful retreat from the busy day to day activities of the rest of the home. A pocket door opens to reveal the pass-through, walk-in closet that accesses the shared bathroom.
Back at the entry, continuing straight will bring you to the great room. The dining room, living room and kitchen are completely open to one another. In the corner of the living room is a fireplace that can be enjoyed throughout the great room and is sure to be the center of attention on cold, winter nights. The dining room is between the living room and the kitchen and provides access to the back yard. Finally the kitchen, filled with modern appliances and ample counter space the bright and airy kitchen also boasts an island with eating bar.
Around the corner from the window bright great room is the laundry room and access to the attached two car garage.

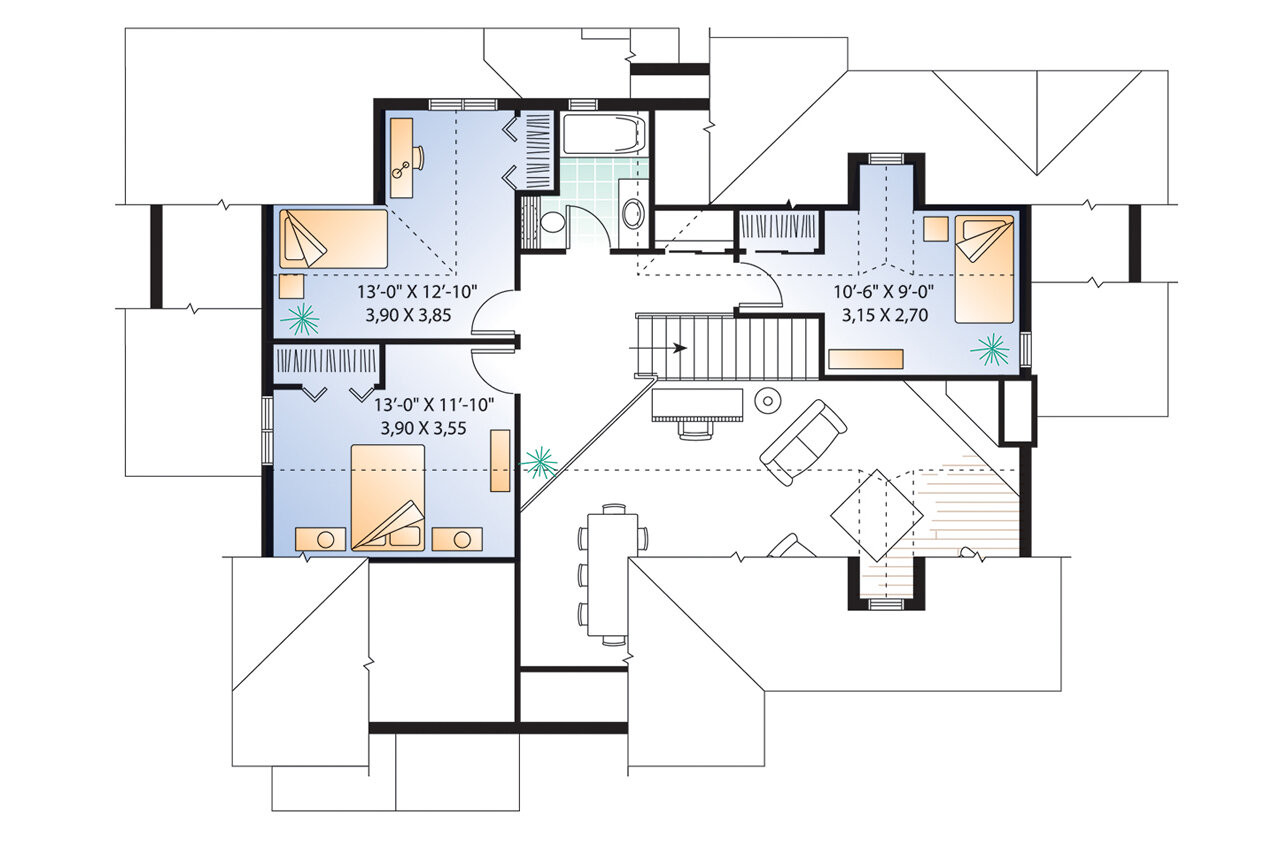

This two story house plan has three additional bedrooms on the second floor. Built-in the roof all of the rooms have slopped ceilings and share a full bathroom. The loft is open to the main floor below and overlooks the dining room and living room.
