General Notes and specifications, Such As:
a) Designs Loads
d) Structural Steel
g) Other Misc. specs.
Front, Rear and Side Elevations @1/4” scale

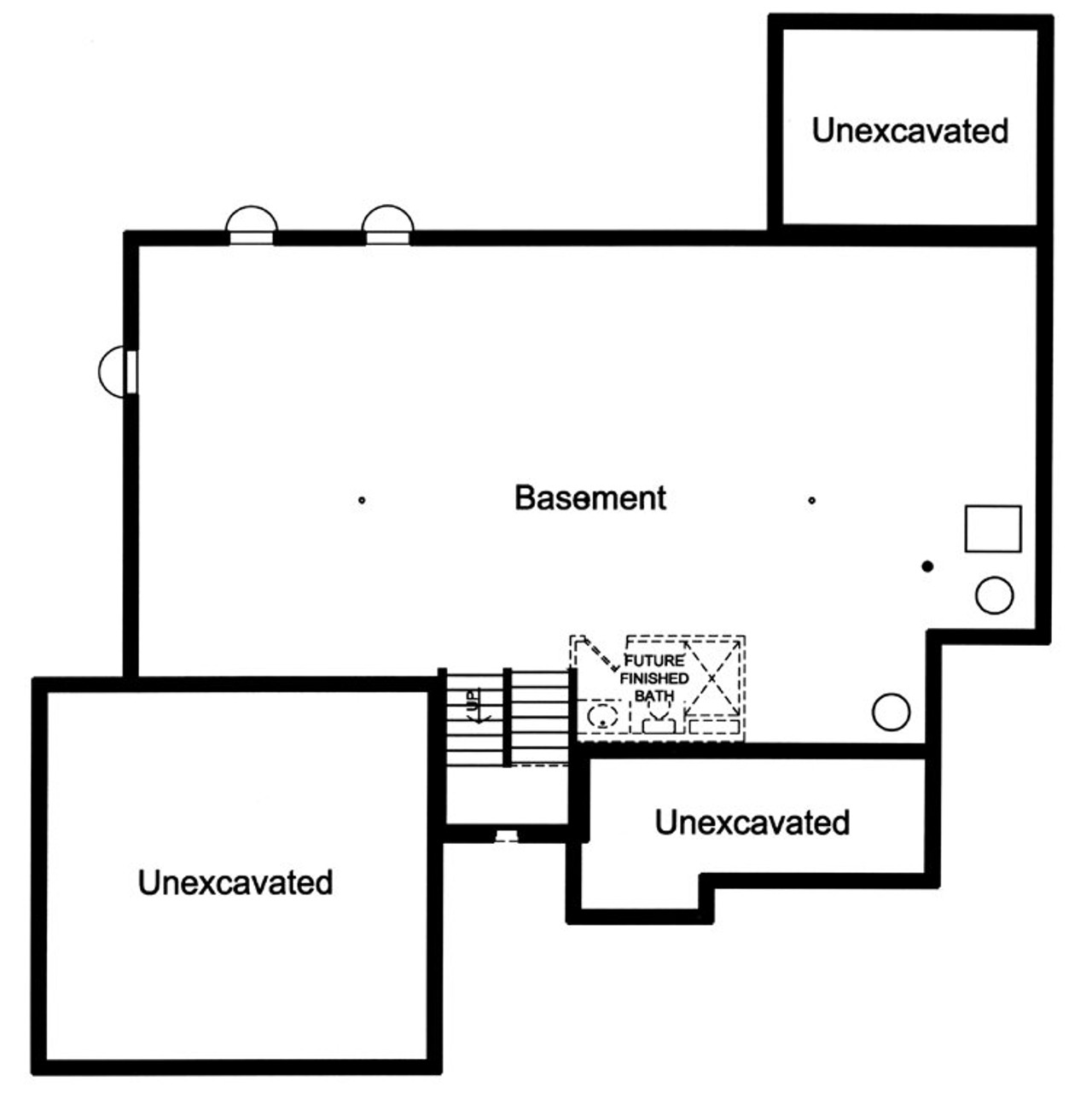

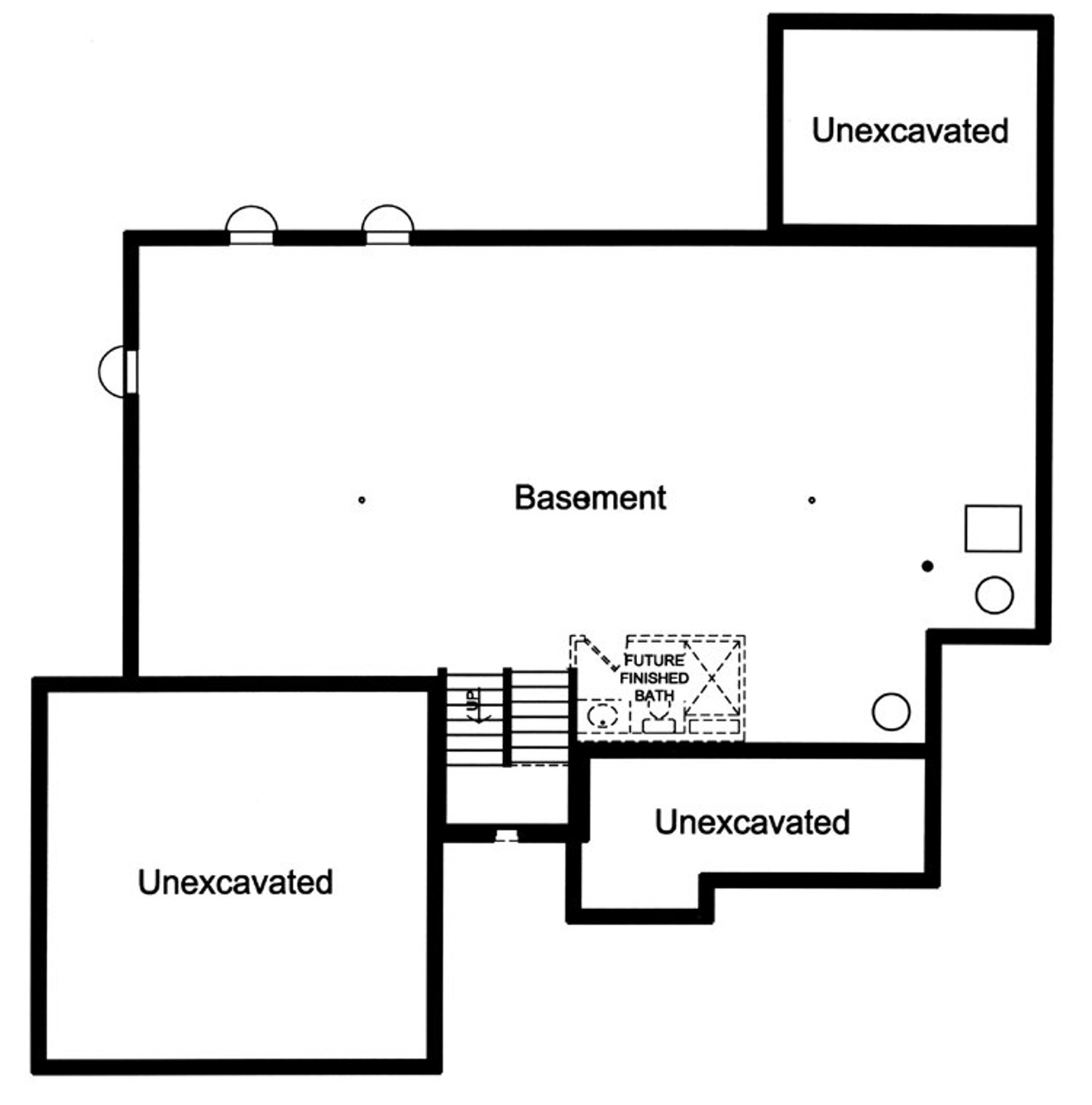

Foundation plan (1/4” scale) indicating beam and column sizes along with lower level framing
Reinforced foundation and footing details

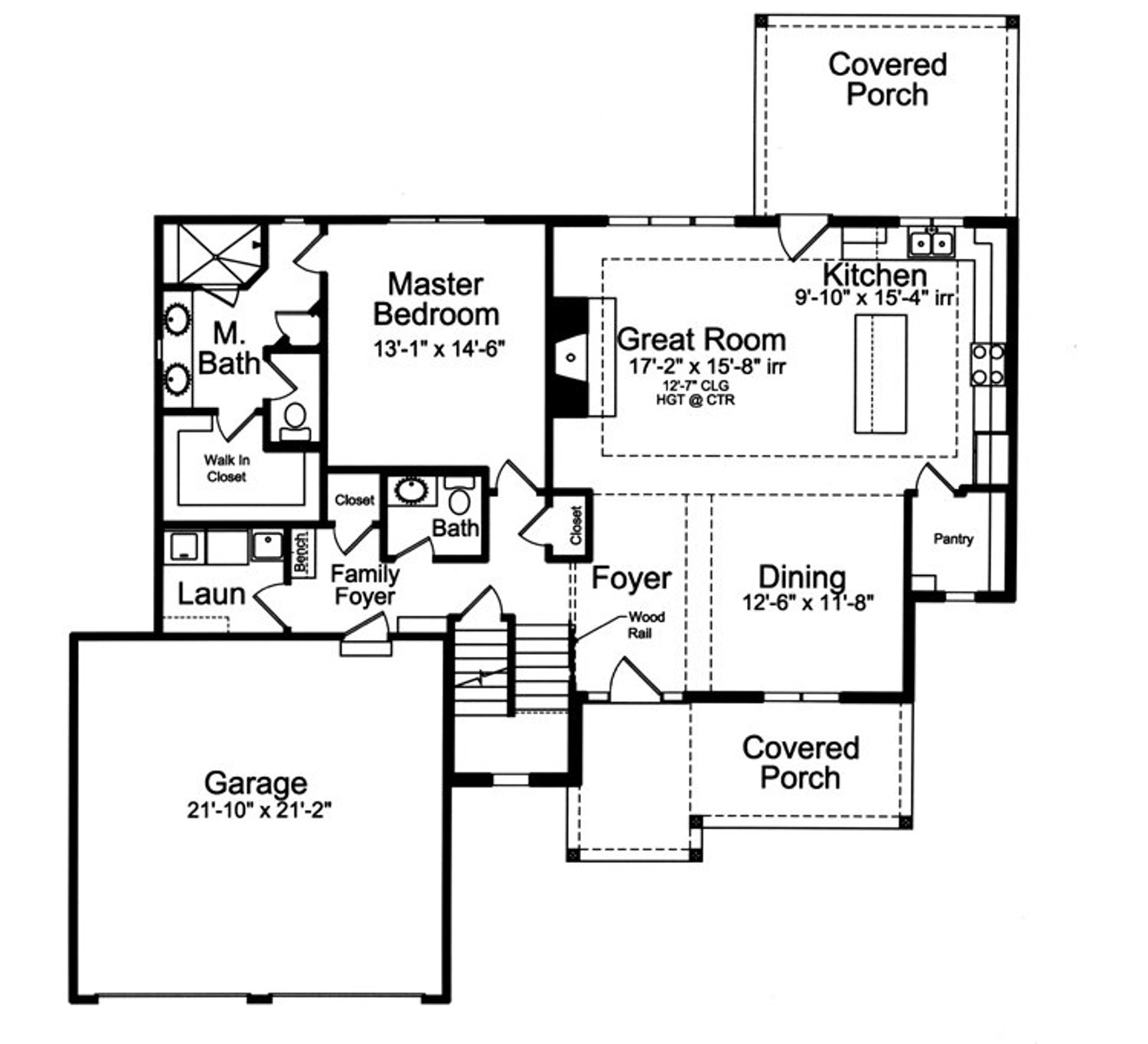

First & Second Floor plan (1/4” scale) includes all necessary framing information, window rough openings, beam sizes and framing details for specialized areas.
Stairs, sections, cabinet layouts, window flashing and miscellaneous details necessary for understanding of construction methods.
Roof plan (1/8”) indicating pitches and wall heights as well as truss profiles indicating hell heights and raised ceiling areas
Wall section indicating standard materials and detailing for typical wall construction.
a) Floor joists
b) Exterior wall framing
c) Wall heights
Roof framing is indicated as manufactured engineered roof trusses. Truss profiles are included.
New to plan buying?

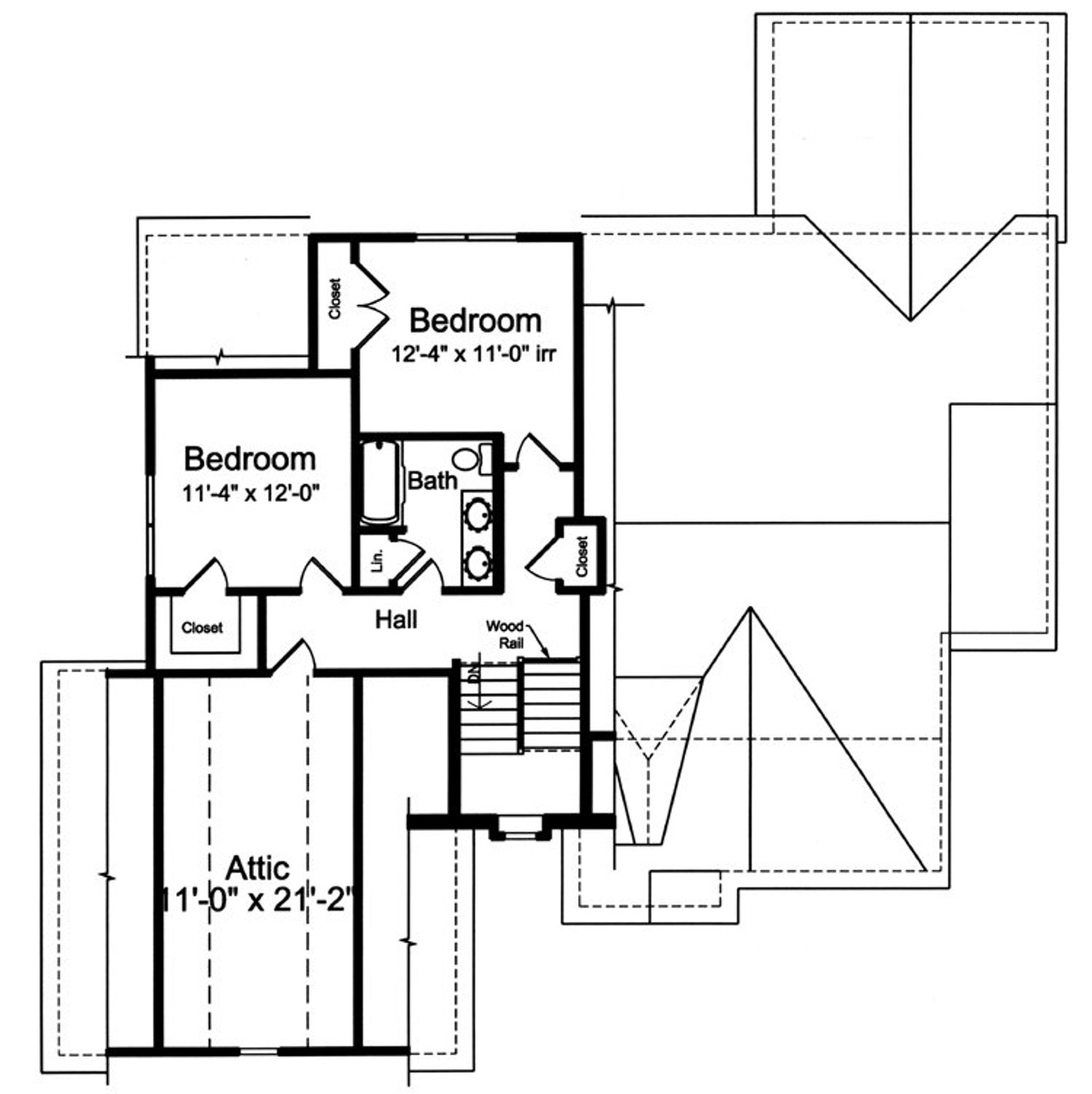

A covered front porch introduces a home with an open floor plan, high ceiling, an island with seating and formal Dining Room. The first floor Master Bedroom enjoys an oversized shower, double bowl vanity, commode room and walk-in closet. A first floor Laundry Room is located to be convenient to the Master Suite as well as the garage. Two additional bedrooms, a bath with double bowl vanity and an unfinished attic space complete this family friendly home.
