Each plan set is drawn at 1/4"=1' scale and includes the following drawings:
Artist's Rendering: An artist's drawing of the home, usually viewed from the front, and general construction notes.
Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details.
Floor Framing Plan (if any): Shows location and spacing of floor joists and supporting walls or beams.
Roof Framing Plan: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc.
Section & Details: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation. Specific details such as fireplaces, stairways, decks, etc. are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.

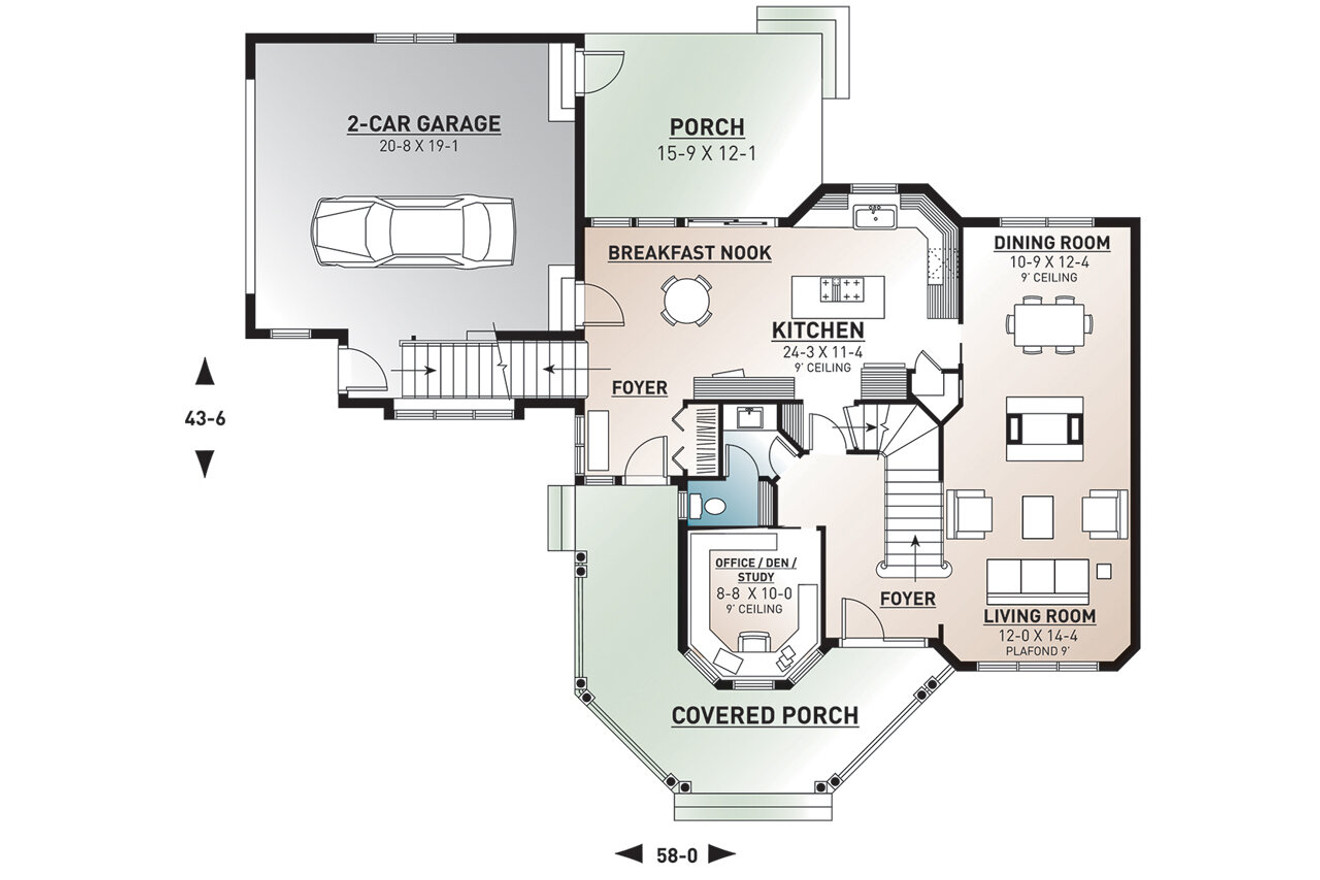

Victorian house plan, the Collector 2, has a welcoming wrap-around front porch. Once inside the foyer, to the right is the living room with a two-sided fireplace that is also appreciated in the formal dining room. The well appointed kitchen features a island with a cook top and a step-in corner pantry, and a breakfast nook. The main floor also features a nice study or den with a wrap around desk.
Upstairs is a luxurious master suite and two additional bedrooms that share a jack-n-jill bathroom. The laundry room is also here, close to the bedrooms.
The side entry two car garage has bonus space above which is access by stairs off of the friends entry and breakfast nook area.
