Each plan set is drawn at 1/4"=1' scale and includes the following drawings:
Front Rendering: A rendering of the front elevation along with general construction notes.
Elevations: Shows the front, sides, and rear, including wall and window heights, exterior materials, soffit heights, roof pitches, etc.
Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, roof, wall, and floor structure from above (if any), ceiling heights, etc.
Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor roof structure as well.
Foundation Plan: Shows the location of all concrete walls and footings, beams supporting the floor structure and structure above, and foundation details. If there is a basement, a basement plan is included which shows all basement details.
Roof Plan: Shows roof outlines, lines of bearing walls below, roof framing details, etc.
Section & Details: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation. Stairway, kitchen elevations, and wall section details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
Electrical Plan: A schematic layout of all lighting, switches and electrical outlets drawn at 1/8" = 1'. Electrical general notes are provided as well.
New to plan buying?

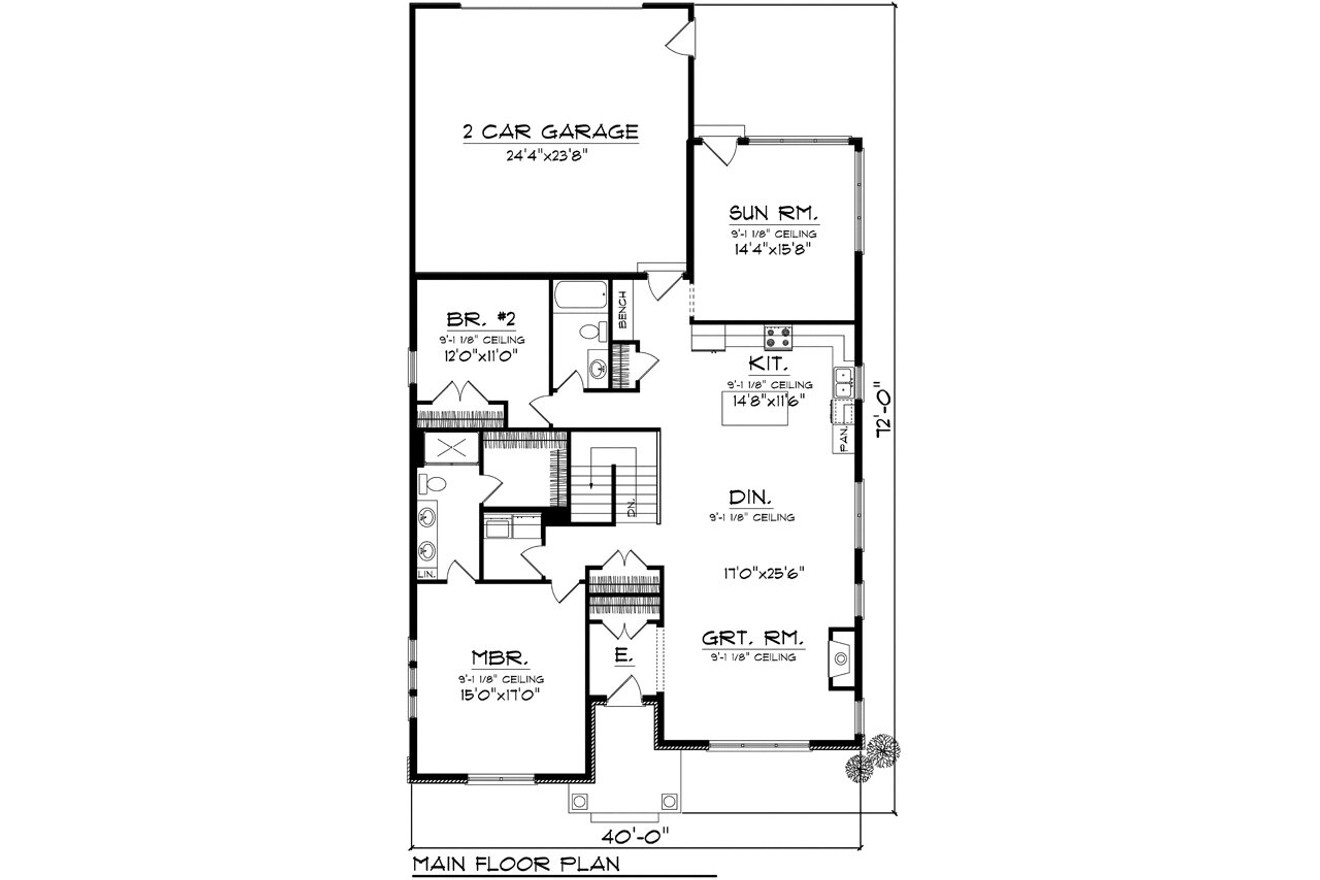

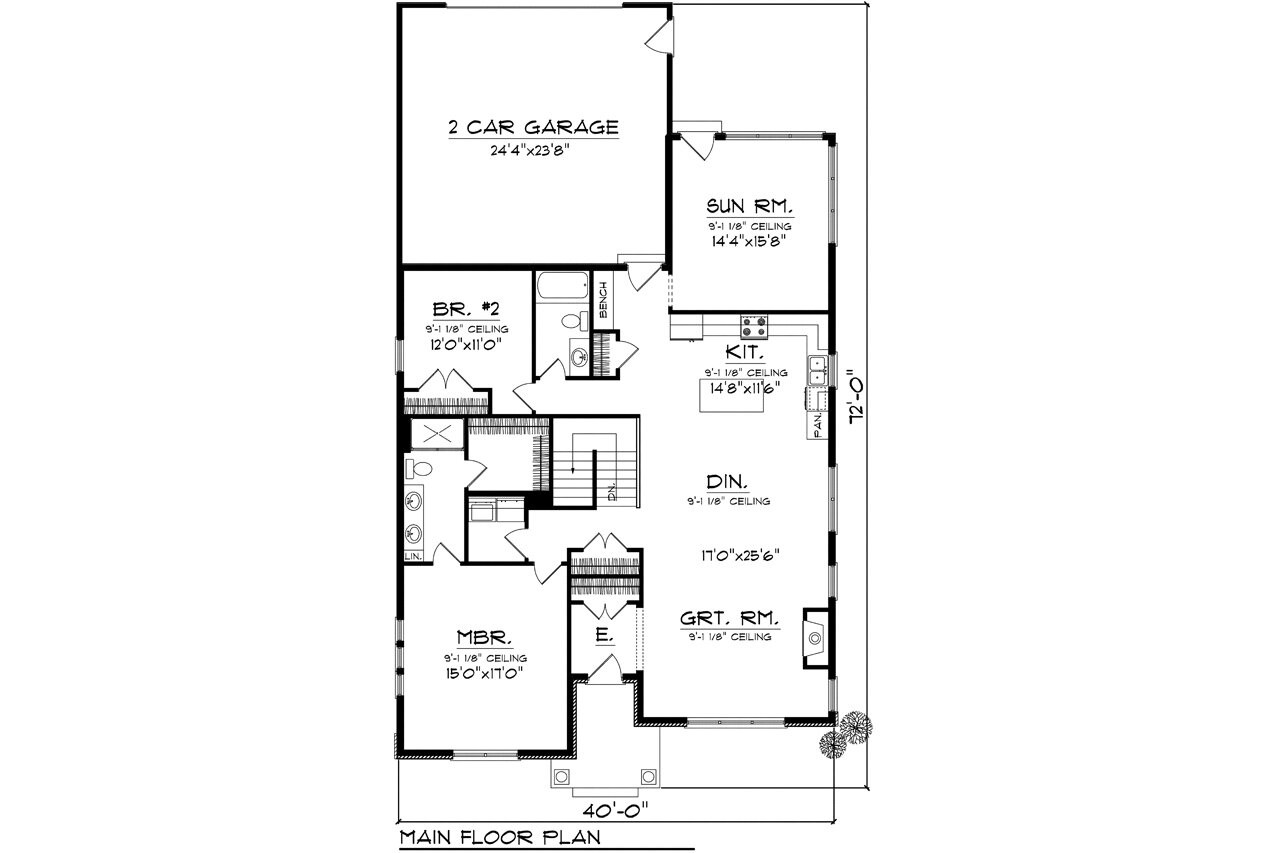

This craftsman style home features a narrow plan with a rear load garage. Stone, siding, shingle siding, shutters, columns, and corbels are just some of the extra details that were added for maximum curb appeal. As you enter the home, the main living area lies to the right and back where the kitchen, dining room and great rooms all blend together to create an open plan with plenty of volume. Additionally, a sunroom behind the main living area provides additional space for the family. To the left of the entry lies the master suite complete with walk-in closet and dual sinks in the on suite bathroom. A second bedroom with direct access to the full bath off the hallway is found behind the master. A two-stall garage completes this plan.
