General Notes and specifications, Such As:
a) Designs Loads
d) Structural Steel
g) Other Misc. specs.
Front, Rear and Side Elevations @1/4” scale
Foundation plan (1/4” scale) indicating beam and column sizes along with lower level framing
Reinforced foundation and footing details

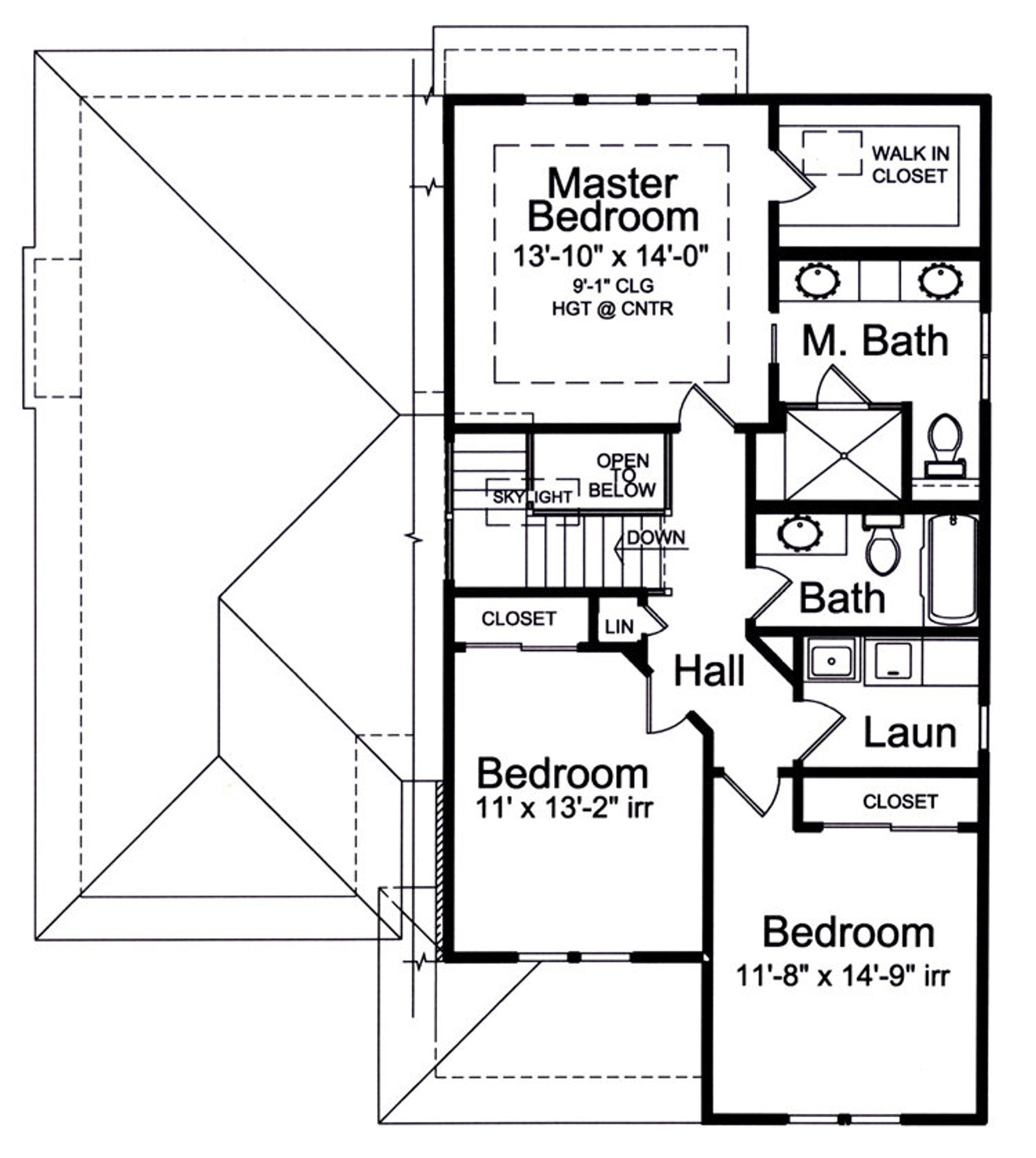

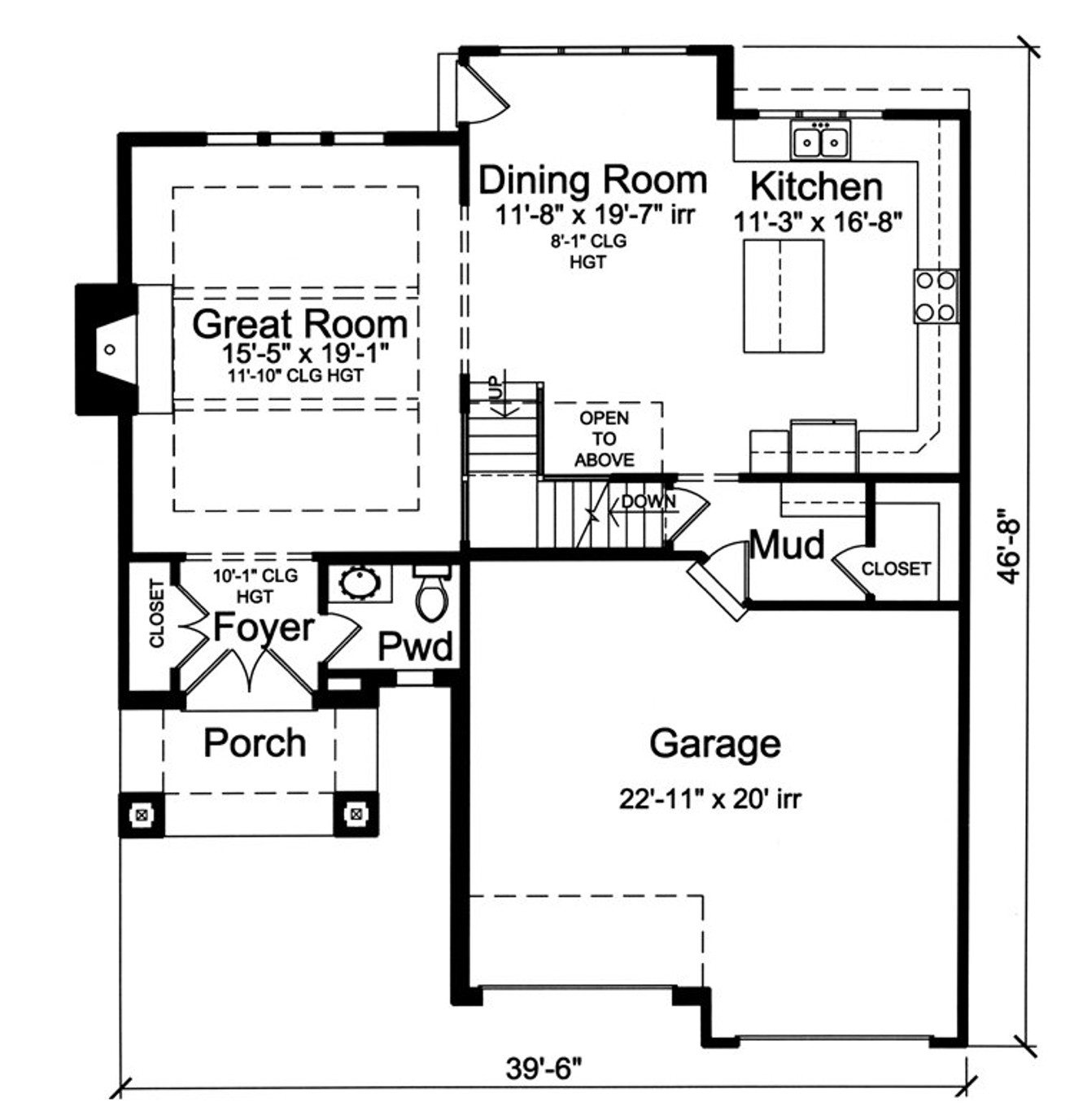

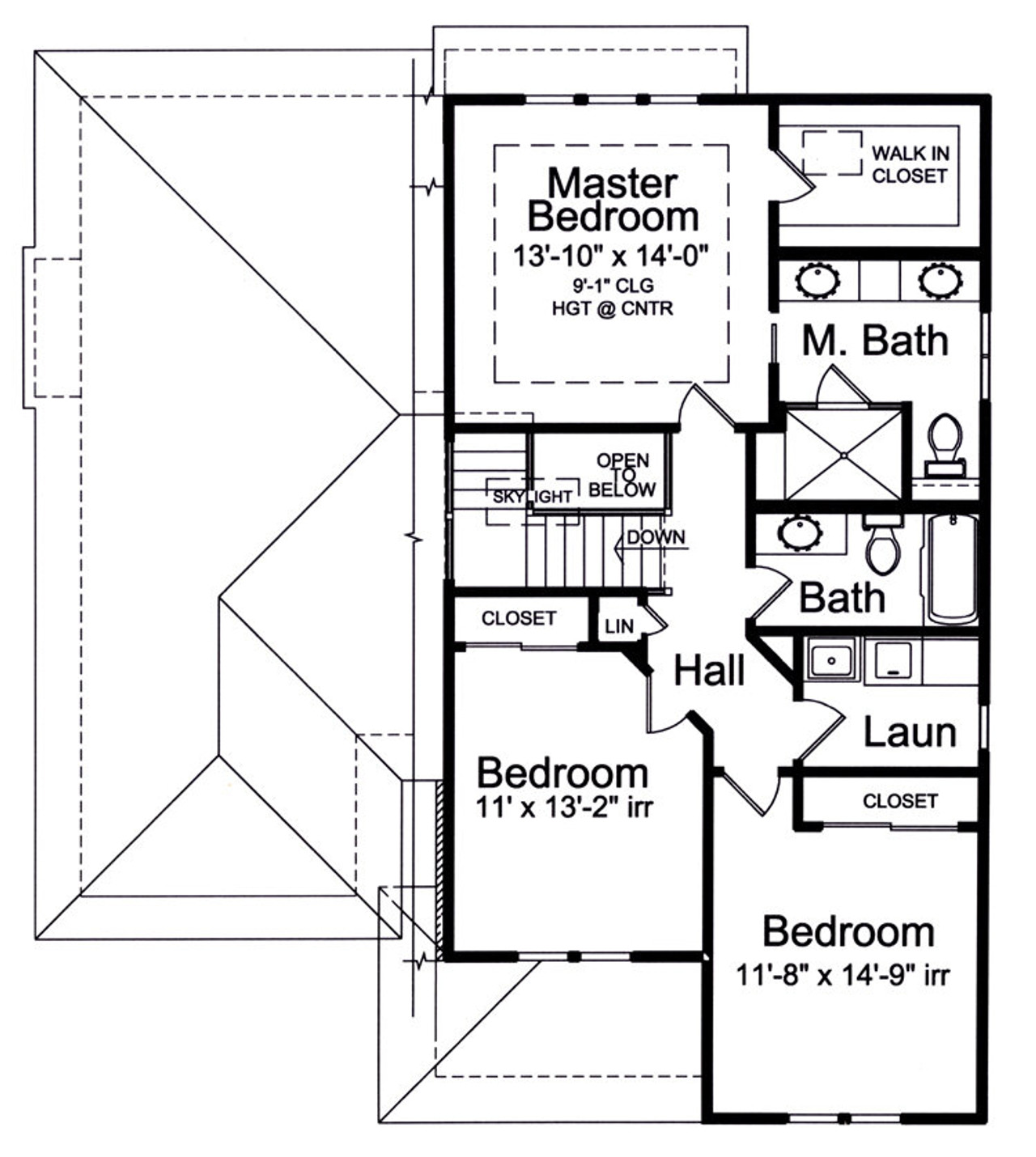

First & Second Floor plan (1/4” scale) includes all necessary framing information, window rough openings, beam sizes and framing details for specialized areas.
Stairs, sections, cabinet layouts, window flashing and miscellaneous details necessary for understanding of construction methods.
Roof plan (1/8”) indicating pitches and wall heights as well as truss profiles indicating hell heights and raised ceiling areas
Wall section indicating standard materials and detailing for typical wall construction.
a) Floor joists
b) Exterior wall framing
c) Wall heights
Roof framing is indicated as manufactured engineered roof trusses. Truss profiles are included.
New to plan buying?
Perfect for a narrow lot this Contemporary/Metropolitan styled home offers a Large Great Room with 12' ceiling height and firplace, informal Dining and a spacious Kitchen preparation area plus an island and seating. A Mud Room with walk-in closet creates an orderly transition for family members from the 2 car attached garage which provides the bonus of off street parking. Turned stairs lead to the second floor where the Master Suite features a double bowl vanity and shower enclosure and large walk-in closet. Two additional bedrooms and a Laundry Room complete the upper level.
