Plan 10809

Photographs may show modifications made to plans. Copyright owned by designer.

At a glance
1838 Square Feet
4 Bedrooms
2 Full Baths
1 Floors
2 - 3 Car Garage

Floor plan

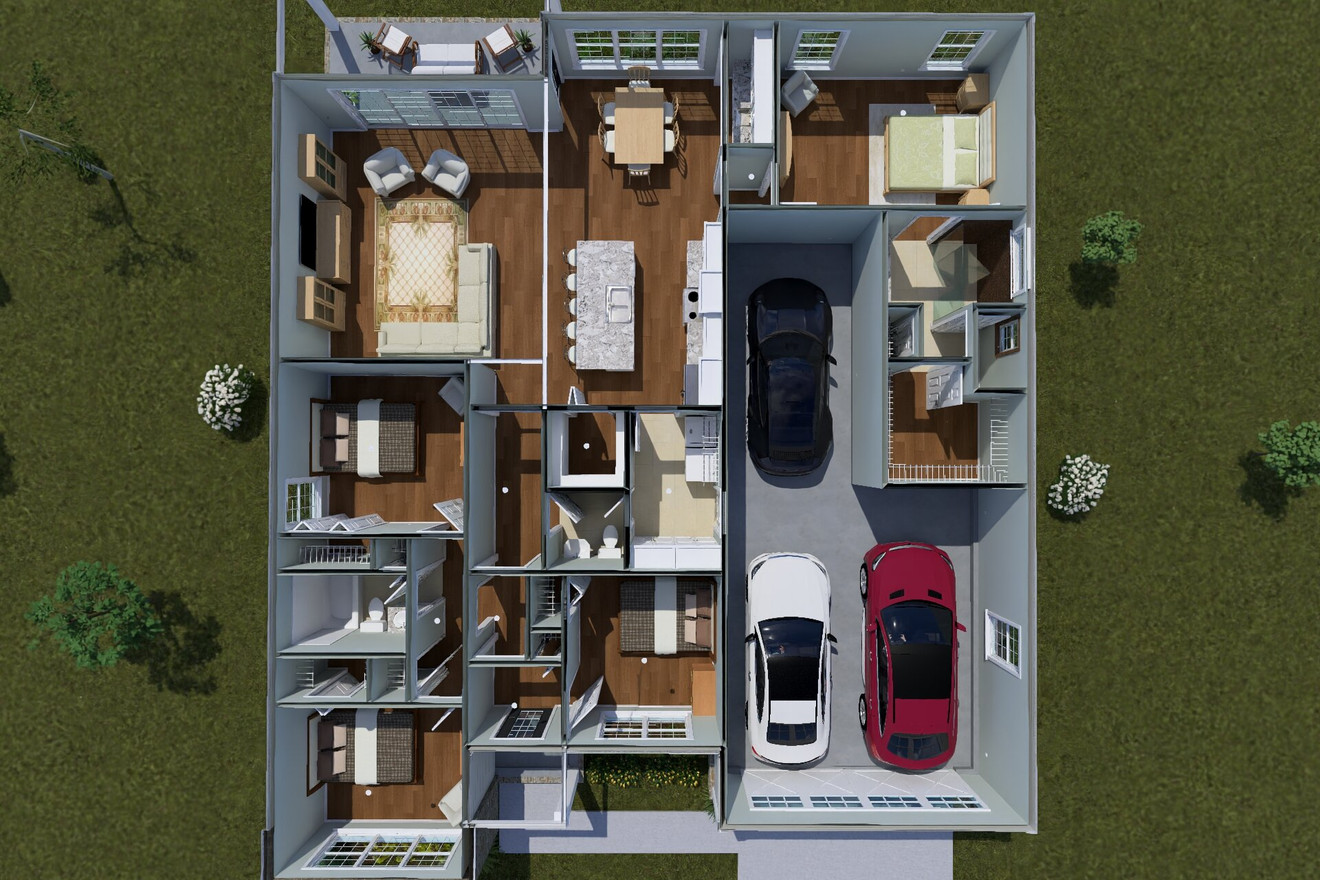

Ranch House Plan - 10809 - Other Floor Plan

Free modification quote

Call Us 866-688-6970 or fill out our form.

Get Started

Cost to build report

How Much Will This Plan Cost To Build?

Find Out

Plan details

Basic Details

Building Details

Interior Details

Garage

What's Included in a Plan Set?

1. Front elevation and construction notes.
2. Rear and side elevations.
3. Floor plan, including electrical, window and door sizes, floor joist span directions and ceiling type notes (9’ ceiling, vault, etc.)
4. Second floor plan (if the plan is a two-story plan), with the same info as shown on the first floor plan.
5. Typical wall section.
6. Typical foundation details.
7. Roof plan showing roof pitches, ridges and valleys, noted as 2”x8” rafters or optional roof trusses.
8. Foundation plan. Standard is concrete block slab, with optional crawlspace or basement foundations available.
9. Full Building Section

One story house plans will contain 8 pages.
Two story house plans will contain 9 pages.

These house plans are the starting point for permit documents. The builder will need to include additional items or information as required locally such as; site plan, soil borings, energy calculations, etc. Some areas will require engineering, based on local conditions and codes due to expansive soil, hurricane zones, earthquake zones, snow loads, etc. The plans do not include engineering, if required, that will need to be done locally. The builder should have local contacts to provide these additional items required for permitting. If the home is to be built with trusses, they will need to be designed by the local truss company that will be building the trusses.
