Each plan set is drawn at 1/4"=1' scale and includes the following drawings:
Artist's Rendering: An artist's drawing of the home, usually viewed from the front, and general construction notes.
Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details.
Floor Framing Plan (if any): Shows location and spacing of floor joists and supporting walls or beams.
Roof Framing Plan: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc.
Section & Details: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation. Specific details such as fireplaces, stairways, decks, etc. are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.

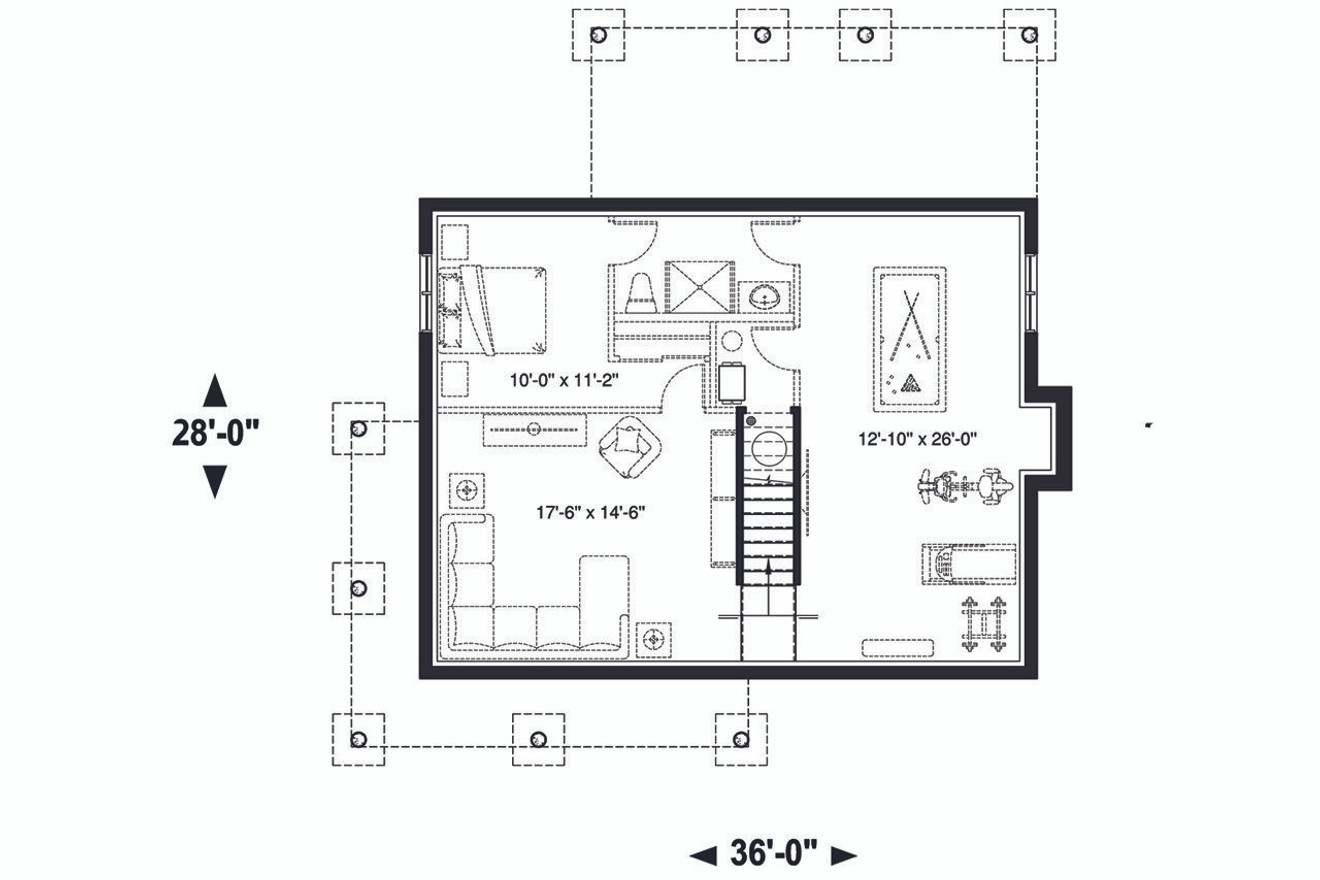

Beautiful Farmhouse style home with modern rustic touches! A covered, partial-wraparound porch adorns the front-left side of the home. A covered deck at the back of the house has enough room to add an outdoor kitchen, great for entertaining. An impressive two-story entrance with a skylight and coat closet welcomes you in the home. The kitchen has a large pantry, planning desk, and good size kitchen island with eating bar. The living space is open and casual with a fireplace. Master bedroom is located on the second floor and includes a private shower room, fireplace, sitting area, and large walk-in closet. Two secondary bedrooms are also located on the second floor. The foundation is currently an unfinished daylight basement.
