Each plan set is drawn at 1/4"=1' scale and includes the following drawings:
Front Rendering: A rendering of the front elevation along with general construction notes.
Elevations: Shows the front, sides, and rear, including wall and window heights, exterior materials, soffit heights, roof pitches, etc.
Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, roof, wall, and floor structure from above (if any), ceiling heights, etc.

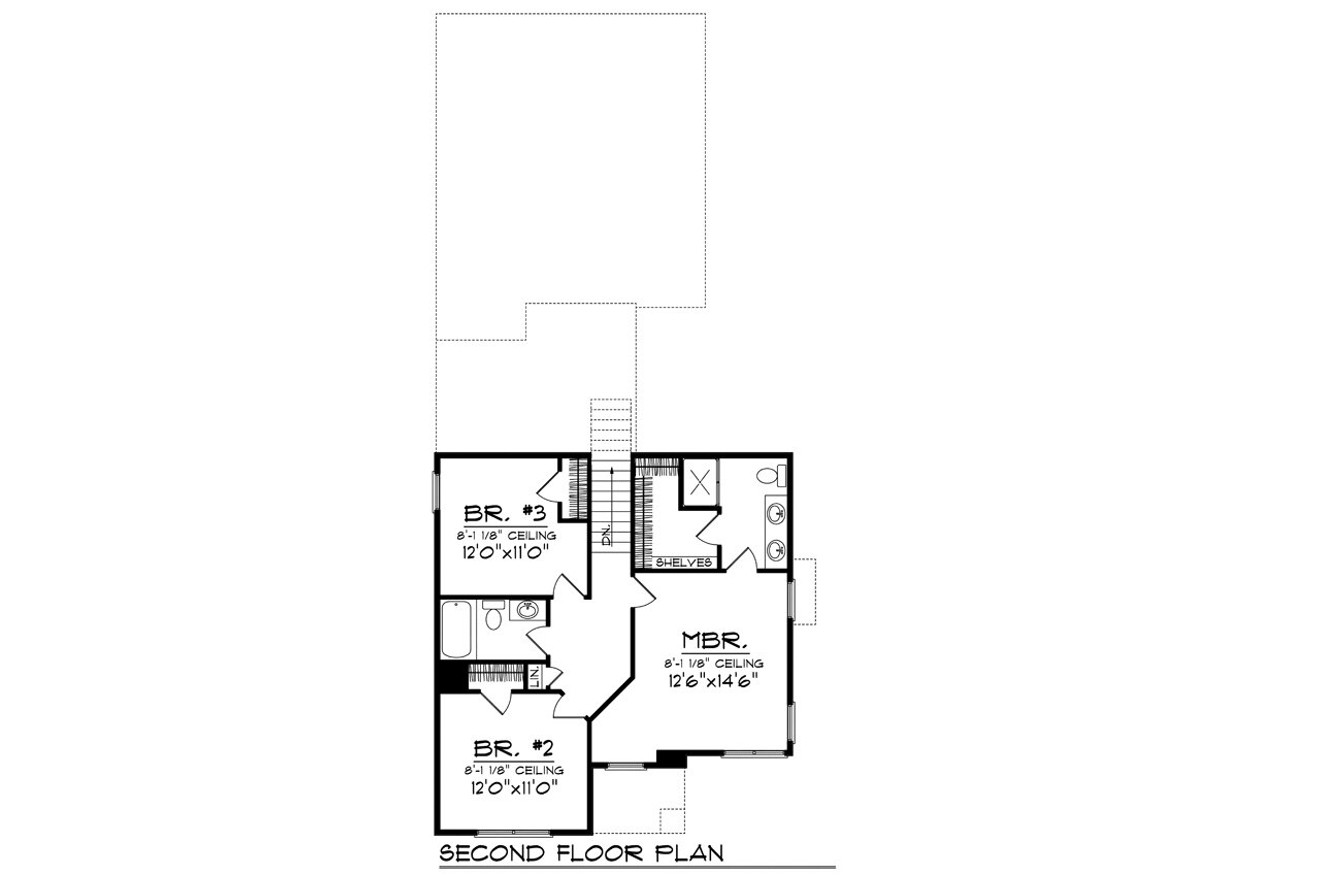

Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor roof structure as well.
Foundation Plan: Shows the location of all concrete walls and footings, beams supporting the floor structure and structure above, and foundation details. If there is a basement, a basement plan is included which shows all basement details.
Roof Plan: Shows roof outlines, lines of bearing walls below, roof framing details, etc.
Section & Details: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation. Stairway, kitchen elevations, and wall section details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
Electrical Plan: A schematic layout of all lighting, switches and electrical outlets drawn at 1/8" = 1'. Electrical general notes are provided as well.
New to plan buying?
This plan boasts charming European Romantic details on the front exterior; the stone and stucco siding defined by wood structuring gives this home a special curb appeal that’s unique and attractive. Rear garage access also makes this home suitable for an alley development while keeping the charming front exterior intact. As you enter the home, the spacious family room is to your left where a central fireplace is the highlight of the living area. The adjacent kitchen includes a breakfast bar that overlooks the dining room, allowing the chef to stay in the conversation while preparing dinner. Three bedrooms can be found upstairs where the master is well equipped with a walk-in closet and private bath and the other two bedrooms share a full-size bath just off the hallway.
