Each plan set is drawn at 1/4"=1' scale and includes the following drawings:
Artist's Rendering: An artist's drawing of the home, usually viewed from the front, and general construction notes.
Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details.
Floor Framing Plan (if any): Shows location and spacing of floor joists and supporting walls or beams.
Roof Framing Plan: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc.
Section & Details: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation. Specific details such as fireplaces, stairways, decks, etc. are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
Charming and understated, the Salem home design is a country house plan that is sure to fit into almost any subdivision. The cottage inspired design is compact yet filled with contemporary features.

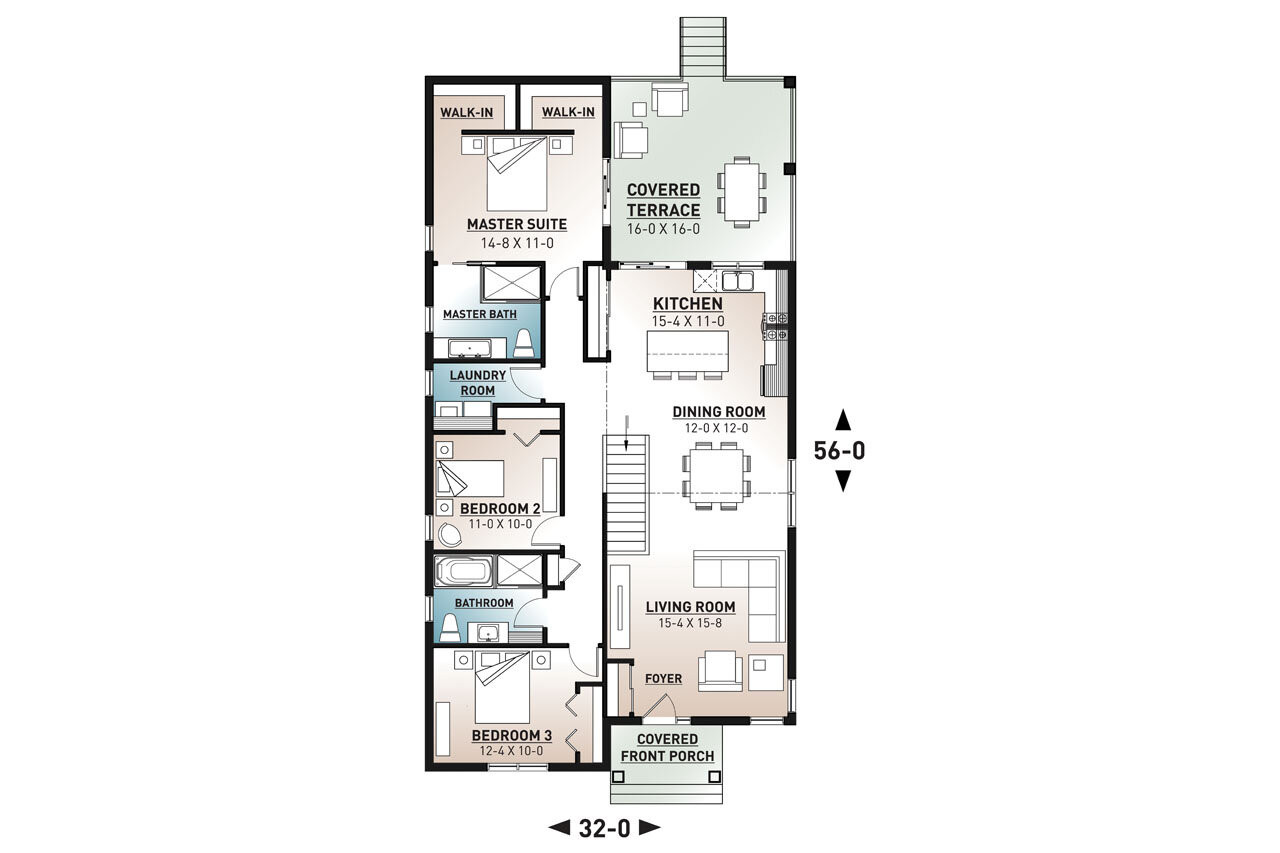

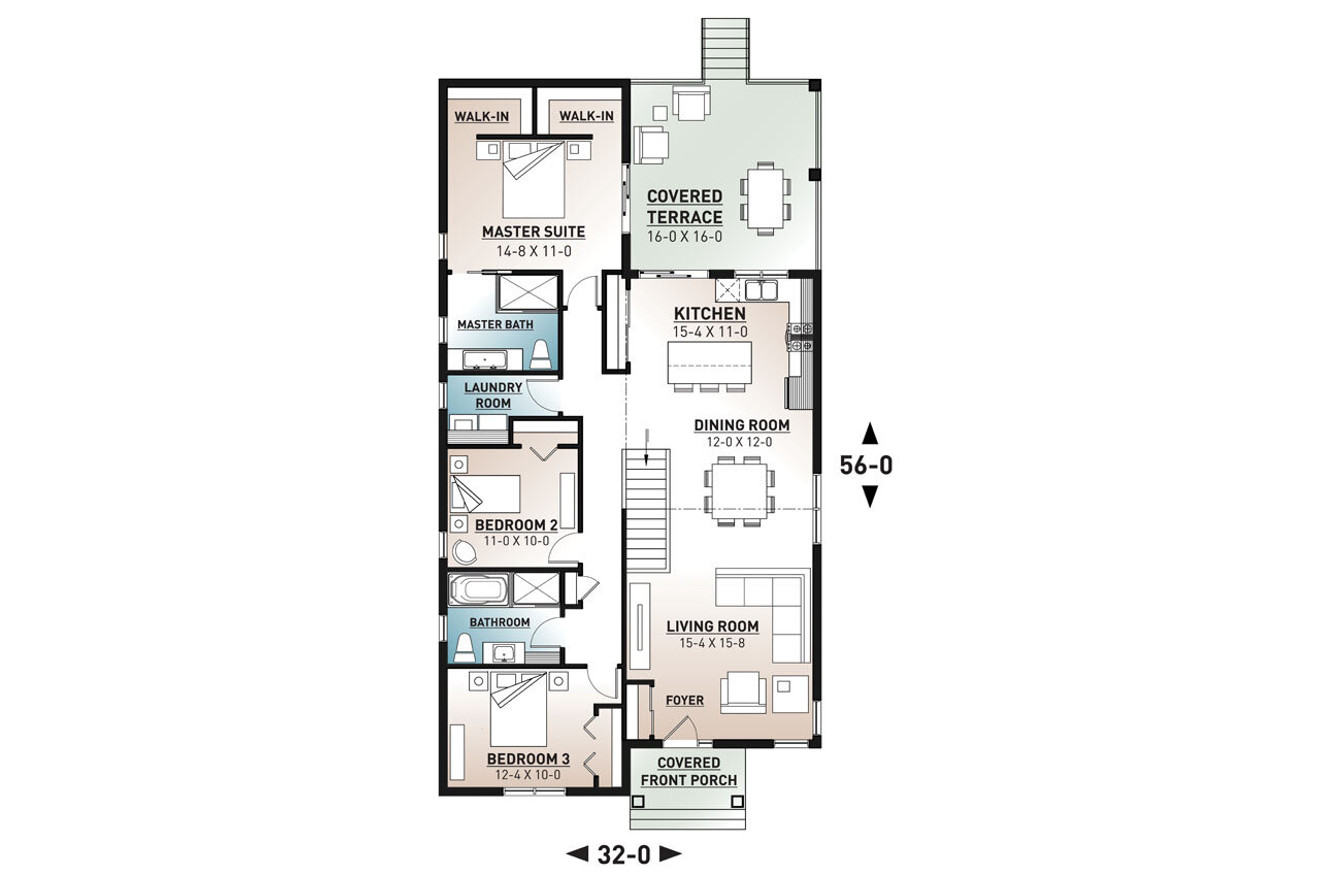

Tapered columns frame the front door creating a cozy covered porch. Inside the foyer is blended in with the living room. To the left is a coat closet and a bench could be placed to the right if desired. The vaulted ceilings throughout the great room add to the spacious and open feeling of the room. The living room is towards the front and is bright from a set of corner windows. The dining room is between the living room and the kitchen and is set along the stairs that lead down to the home’s basement foundation. Filling the back of the great room is the kitchen. An island with built in eating bar provides some visual separation between the kitchen and the dining room. Along the back wall of the kitchen is a sliding glass door that opens the room up to the covered terrace.
This small house plan has all three bedrooms along the left side of the floor plan. The two secondary bedrooms are towards the front and share a full bathroom that boasts a separate tub and shower. In between the secondary bedrooms and the master suite is the laundry room. The master suite fills the back of the home and features two walk-in closets, access to the covered terrace and a private bathroom with walk-in shower.
At only 32’ wide the Salem house plan is a great option for those building on city lots. This narrow lot home design is compact while offering homeowners a contemporary open floor plan.
