Each plan set is drawn at 1/4"=1' scale and includes the following drawings:
Front Rendering: A rendering of the front elevation along with general construction notes.
Elevations: Shows the front, sides, and rear, including wall and window heights, exterior materials, soffit heights, roof pitches, etc.
Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, roof, wall, and floor structure from above (if any), ceiling heights, etc.
Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor roof structure as well.
Foundation Plan: Shows the location of all concrete walls and footings, beams supporting the floor structure and structure above, and foundation details. If there is a basement, a basement plan is included which shows all basement details.
Roof Plan: Shows roof outlines, lines of bearing walls below, roof framing details, etc.
Section & Details: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation. Stairway, kitchen elevations, and wall section details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
Electrical Plan: A schematic layout of all lighting, switches and electrical outlets drawn at 1/8" = 1'. Electrical general notes are provided as well.
New to plan buying?

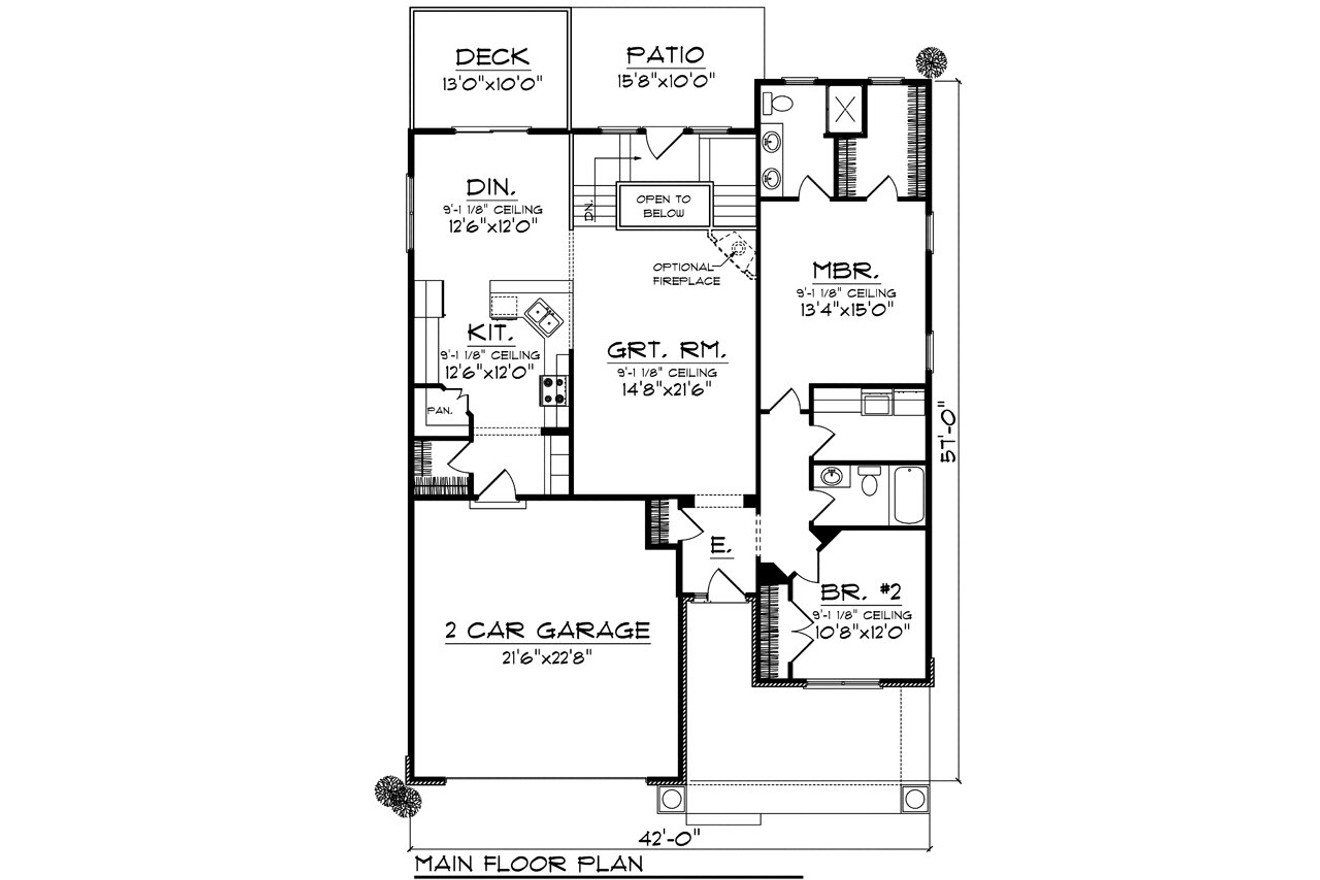

This charming ranch style home will be an eye catcher in any neighborhood. It has a spacious porch that’s even large enough for a swing. Just under 1,600 square feet, this two bedroom home is affordable to build and easily pleases buyers. The main, open style living area is to the left of the entry. There, you'll find a kitchen with an eating bar that overlooks the dining room. The adjacent great room features an optional corner fireplace area and access to the staircase which leads to the backyard. Both bedrooms lie to the left of the entry. The master has a spacious walk-in closet, dual sinks, and a private bath. The two-stall garage is accessed from the main floor laundry room that’s tucked just behind the kitchen.
