General Notes and specifications, Such As:
a) Designs Loads
d) Structural Steel
g) Other Misc. specs.
Front, Rear and Side Elevations @1/4” scale
Foundation plan (1/4” scale) indicating beam and column sizes along with lower level framing
Reinforced foundation and footing details
First & Second Floor plan (1/4” scale) includes all necessary framing information, window rough openings, beam sizes and framing details for specialized areas.
Stairs, sections, cabinet layouts, window flashing and miscellaneous details necessary for understanding of construction methods.
Roof plan (1/8”) indicating pitches and wall heights as well as truss profiles indicating hell heights and raised ceiling areas
Wall section indicating standard materials and detailing for typical wall construction.
a) Floor joists
b) Exterior wall framing
c) Wall heights
Roof framing is indicated as manufactured engineered roof trusses. Truss profiles are included.
New to plan buying?

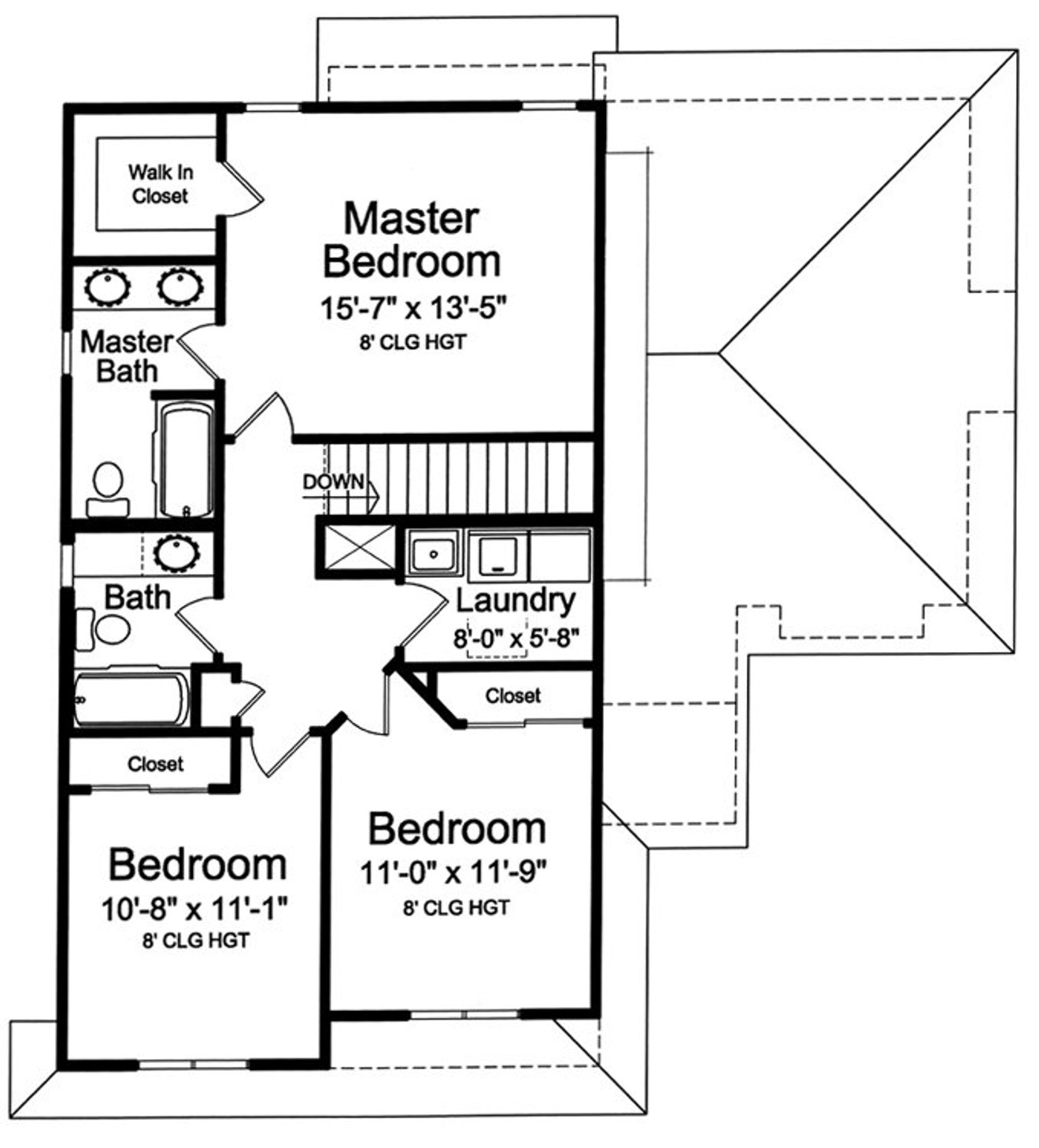

This delightful 2-story home, offers a floor plan that extends well beyond what you may expect in a home of this size. A charming exterior of siding and stone with a high transom window, introduces a Great Room with gas fireplace and 13' ceiling height, and front and rear yard view. The Dining area with rear yard access enjoys a grand opening to both the Great Room and Kitchen where an island provides additional seating. A Mud Room offers a great transition in to the home where a drop zone for miscellaneous items can be utilized. The upper level showcases a Master Bedroom with private bath and walk-in closet. Two additional bedrooms and a bath, with double bowl vanity and a large laundry room complete the second floor. A full basement is included with this plan for storage or additional square footage if needed.
