Master Bedroom Ceiling: 10' Stepped
Great Room, Dining Room, Kitchen Ceiling: 12'
Each plan set is drawn at 1/4"=1' scale and includes the following drawings:
Front Rendering: A rendering of the front elevation along with general construction notes.
Elevations: Shows the front, sides, and rear, including wall and window heights, exterior materials, soffit heights, roof pitches, etc.

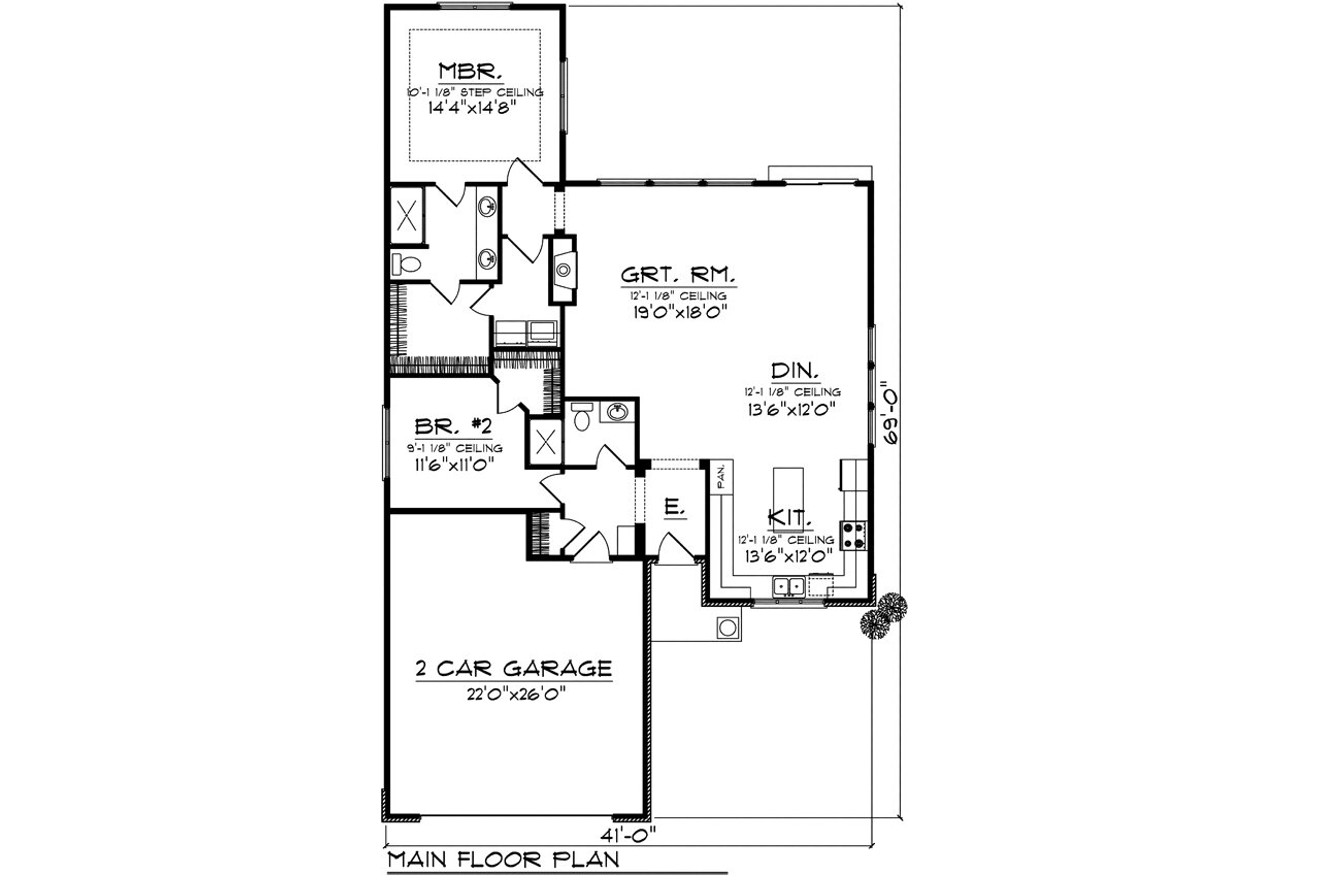

Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, roof, wall, and floor structure from above (if any), ceiling heights, etc.
Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor roof structure as well.
Foundation Plan: Shows the location of all concrete walls and footings, beams supporting the floor structure and structure above, and foundation details. If there is a basement, a basement plan is included which shows all basement details.
Roof Plan: Shows roof outlines, lines of bearing walls below, roof framing details, etc.
Section & Details: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation. Stairway, kitchen elevations, and wall section details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
Electrical Plan: A schematic layout of all lighting, switches and electrical outlets drawn at 1/8" = 1'. Electrical general notes are provided as well.
New to plan buying?
You cannot ignore this charming arts and crafts ranch style home! You and your neighbors will love the decorative details such as corbels, shingle and stone siding, and a support pillar on the porch entry. The living area is to the left of the entry where a kitchen, complete with center island, flows seamlessly into the dining and living areas. A large wall of windows lets in natural light to make this living area cozy and comfortable. Two bedrooms lie to the left of the entry behind the garage. The master is equipped with a walk-in closet and private bathroom with dual sinks. Extra space in the garage will be sure to please.
