Each plan set is drawn at 1/4"=1' scale and includes the following drawings:
Front Rendering: A rendering of the front elevation along with general construction notes.
Elevations: Shows the front, sides, and rear, including wall and window heights, exterior materials, soffit heights, roof pitches, etc.

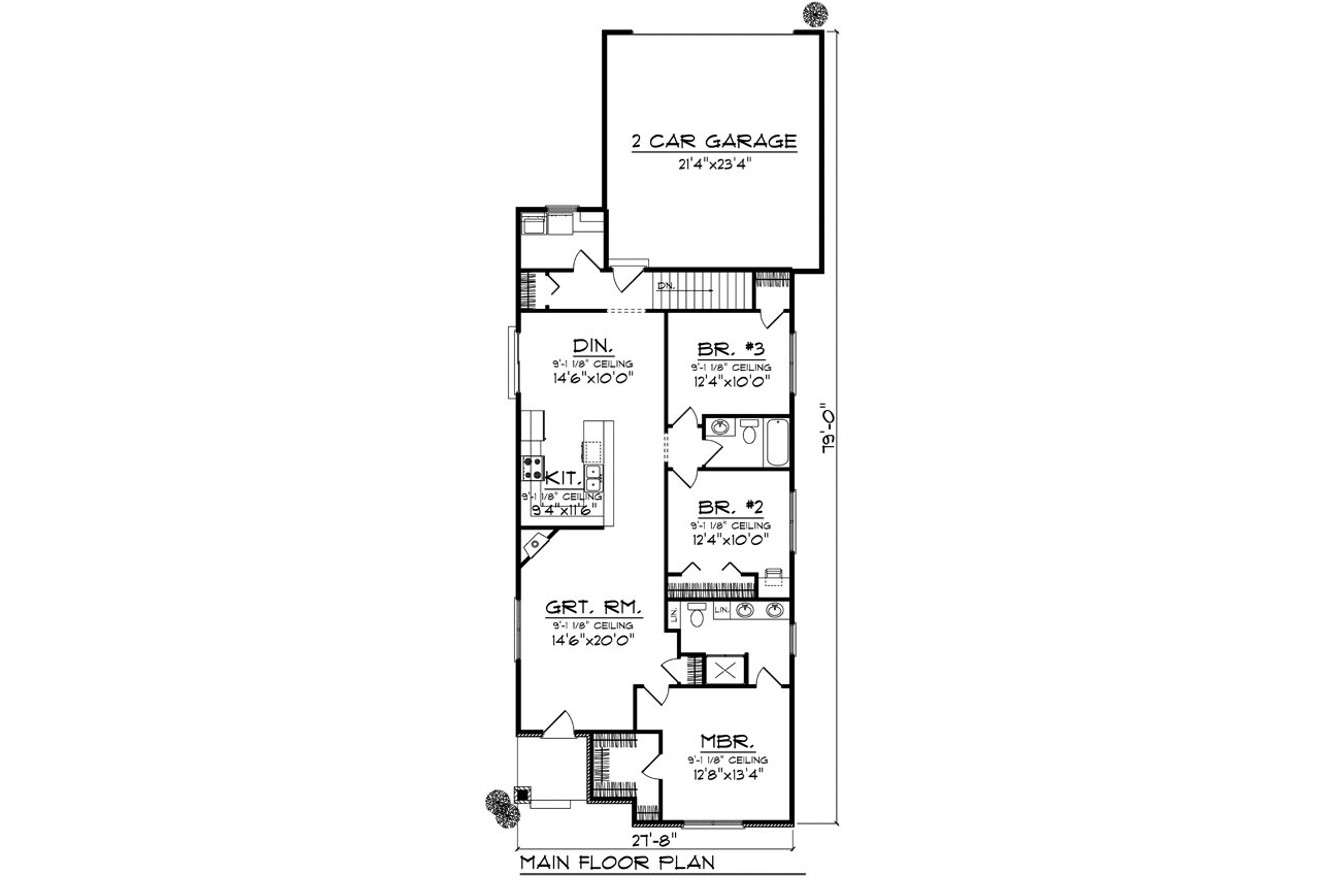

Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, roof, wall, and floor structure from above (if any), ceiling heights, etc.
Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor roof structure as well.
Foundation Plan: Shows the location of all concrete walls and footings, beams supporting the floor structure and structure above, and foundation details. If there is a basement, a basement plan is included which shows all basement details.
Roof Plan: Shows roof outlines, lines of bearing walls below, roof framing details, etc.
Section & Details: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation. Stairway, kitchen elevations, and wall section details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
Electrical Plan: A schematic layout of all lighting, switches and electrical outlets drawn at 1/8" = 1'. Electrical general notes are provided as well.
This arts and crafts design appears small from the front but pack all living space into a plan with garage access to the back making it perfect for a “neighborhood” development. Extra exterior details include corbels, shingle and stone siding and a support column in front. As you enter the home, you’ll love the spacious great room with corner fireplace directly in front of you. The kitchen follows and includes a breakfast bar that’s large enough to seat four and direct access to the dining room. Access to the garage lies in the laundry room directly behind the dining room. All three bedrooms lie to the left of the home beginning with the master that’s equipped with a walk-in closet and private bath. Two more bedrooms follow each with a Jack and Jill’s access to the main bath off the hall.
