Each plan set is drawn at 1/4"=1' scale and includes the following drawings:
Artist's Rendering: An artist's drawing of the home, usually viewed from the front, and general construction notes.
Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details.
Floor Framing Plan (if any): Shows location and spacing of floor joists and supporting walls or beams.
Roof Framing Plan: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc.
Section & Details: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation. Specific details such as fireplaces, stairways, decks, etc. are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
Decorative gable ends with posts and shingles along with horizontal lap siding and stone wainscot combine to great an eye-catching exterior to the Woodside, a one story Craftsman house plan. A large front covered porch is a welcoming feature for guests and family.

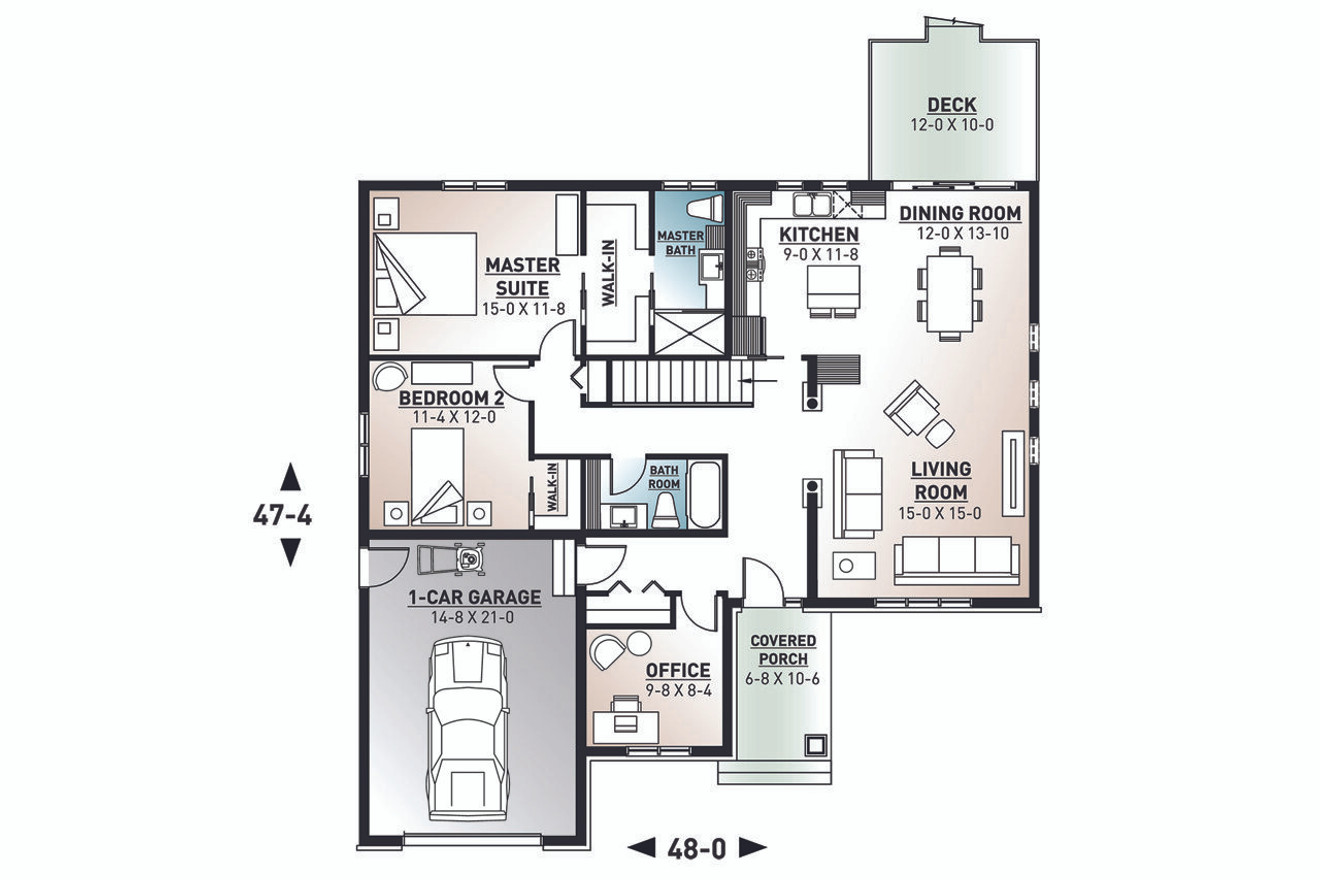

Stepping through the front door the entry hall is wide enough to provide space for a bench. Immediately to the left of the entry is a home office and a coat closet. If the office is not needed then this space could be furnished as a den, study or additional bedroom. At the end of the hallway with the office is access to the attached one car garage.
Back at the entry hall, straight ahead the hall opens to the right to the great room. The living room is towards the front of the home and is naturally bright from windows along two walls. The back of the living room is open to the dining room that features a sliding glass door with access to the back deck. The deck is large enough to extend the living area outside during warm summer afternoons. Back inside the dining room is open to the kitchen. The comfortable kitchen is equipped with modern appliances along with ample counter space and cabinet storage in addition to the center island with a small eating bar.
A pocket door through the kitchen opens back up to the entry hall and basement staircase. The basement provides the homeowner with the flexibility to finish the space to their preference and lifestyle. If additional bedrooms or living space is needed the basement could be finished to provide those additional rooms. The suggested floor plan provides an additional bathroom complete with the washer and dryer and mechanical units.
Back on the main floor, the floor plan is finished out with the sleeping areas filling the left side. Passing along the basement stairs is a full bathroom available for guest. At the end of this hall is a secondary bedroom that boasts a walk-in closet. The master suite is nearby and features an even larger walk-in closet that is designed as a pass-through to the private bathroom.
This small home plan is brimming with modern features and spaces that homeowners and builders can both agree on. Whether you are building on a narrow urban lot or a sprawling rural property the Woodside is an ideal home plan worth a second look.
