* The Floor Plans are views of each floor, looking down from above. They show window and door locations, room dimensions, plumbing fixture locations, etc.
* Exterior Elevations are flat views of the outside of the house, looking at the front, left, rear and right.
* Building Sections show cutaway views of the home structure.
* The Foundation Plan shows the location of footings and concrete slabs.
* Floor & Roof Layouts show the outline of the floor truss systems, and slopes, valleys, ridges and hips on the roof.
* The Wall Section is a detailed view showing how the walls are assembled.
* The Electrical Plan shows the outlets, switches, lights and fans on the floor plan.
* Construction Notes and typical Details.
New to plan buying?

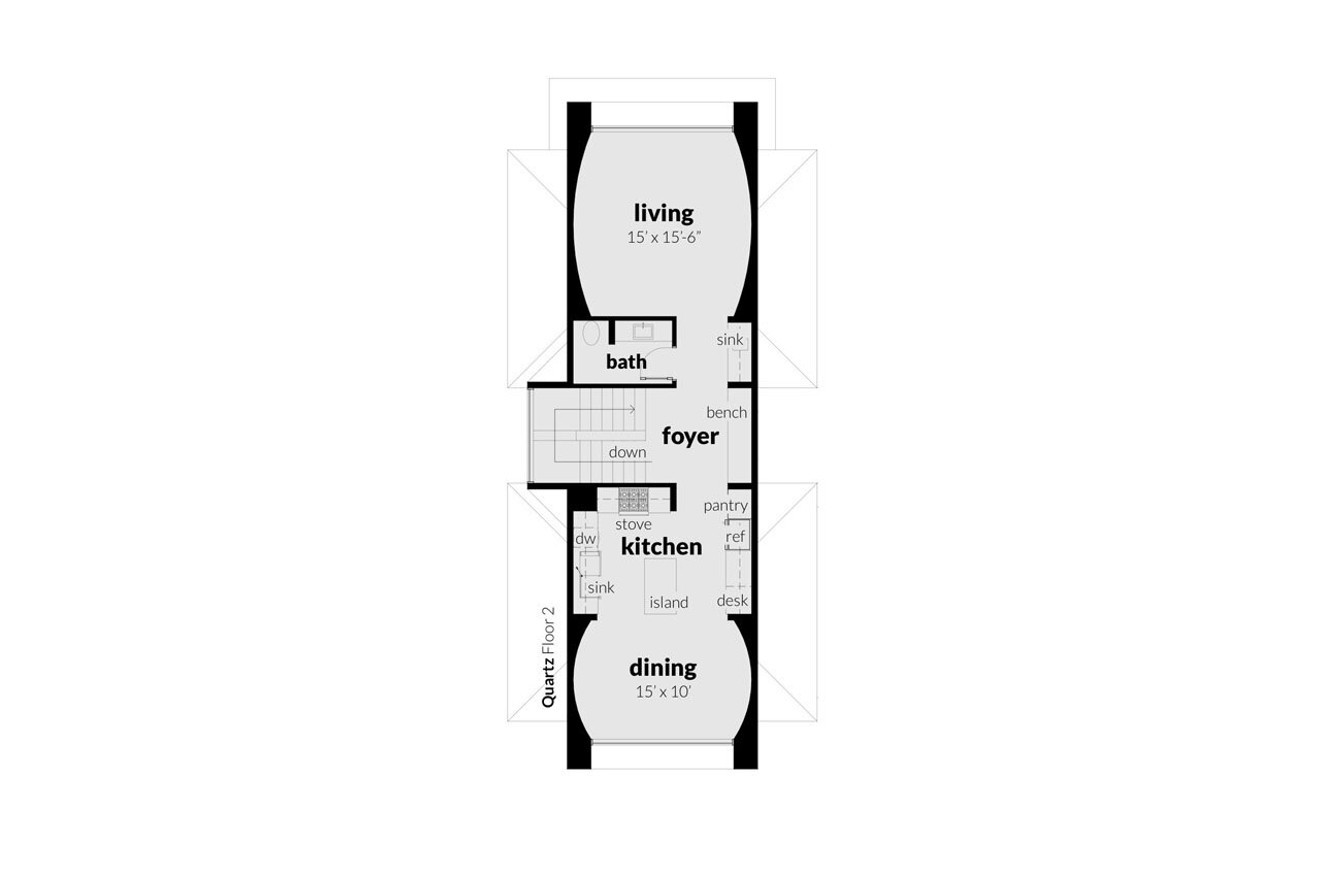

Mondern house plan, the Quartz, offers upper floor living spaces for properties with a view. Living and dining spaces walls are slightly curved walls and photo windows for a contemporary look. Two bedroom suites on the ground level are connected to the main stairwell and foyer. The two car garage is connected for secure access to the house.
At a Glance
