Each plan set is drawn at 1/4"=1' scale and includes the following drawings:
Elevations: Shows the front, sides, and rear, including exterior materials, ceiling heights, roof pitches, 3d exterior views, etc.
Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, different ceiling heights, etc.
Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details.
Roof Layout: Shows roof outlines with pitches, valleys and ridges.
Details: Shows a typical wall cross-section. Shows support members, exterior and interior materials, insulation, and foundation. Specific details are shown and appear as needed throughout the prints.
Electrical Plan: A schematic layout of all lighting, switches and electrical outlets.
Cabinet Plan: Shows all cabinets in the plan at ½”=1’-0” as well as 3d views of their arrangement as needed.
New to plan buying?

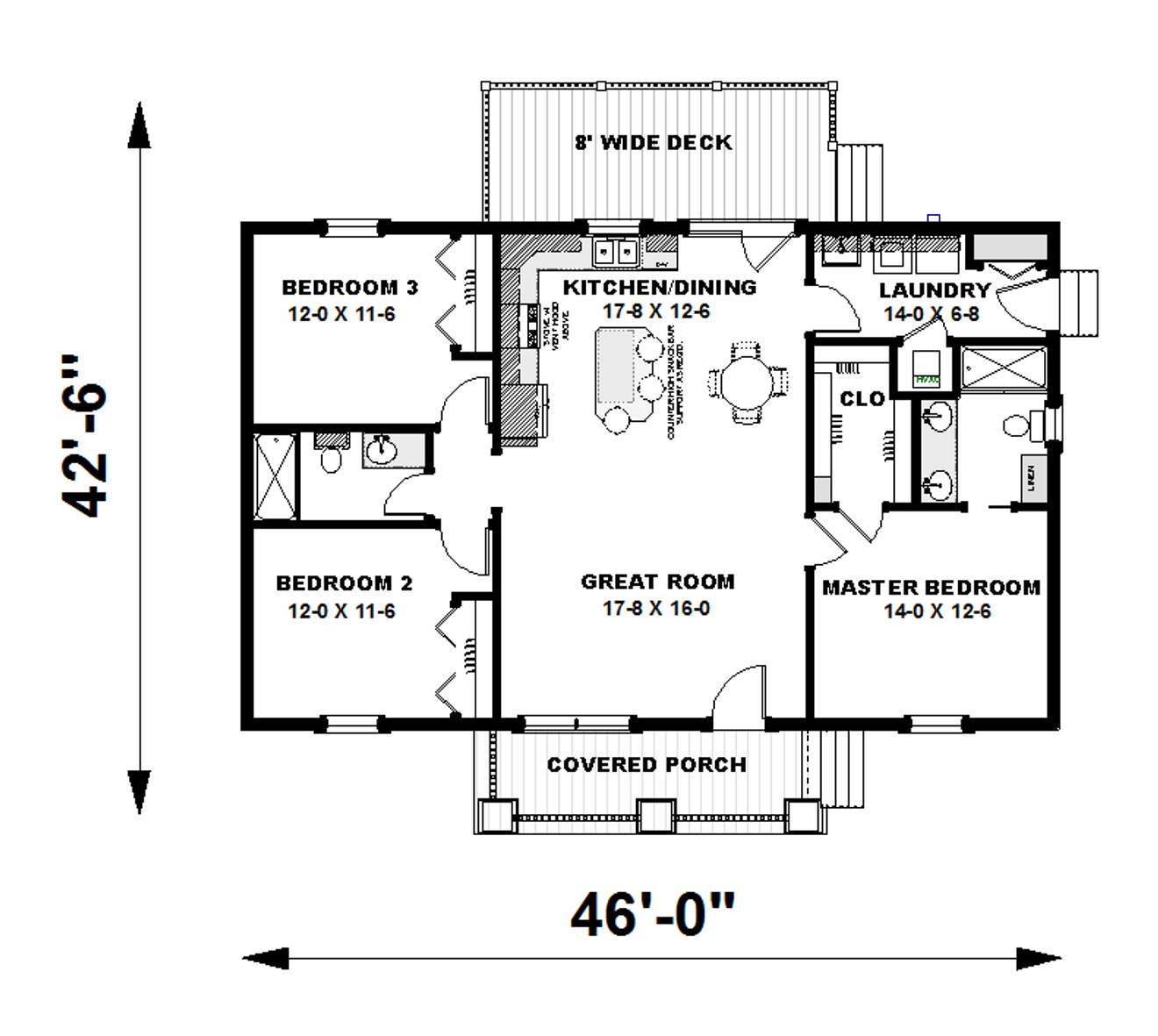

Split bedroom layout for privacy.
NO wasted space!!
Open Kitchen/Dining and Great Room - perfect for entertaining.
Kitchen has a large island with a counter high snack bar, French doors lead out onto the rear deck.
The Master Bedroom is large and contains a private bath and wlak-in closet.
The Master Bath has dual sinks, tub/shower combo, window, and plenty of storage.
Bedrooms 2 and 3 share a bath.
The large laundry room has lots of storage and a laundry sink for easy cleanup.
