Plan 59569

Ellicott

Photographs may show modifications made to plans. Copyright owned by designer.

At a glance
1286 Square Feet
3 Bedrooms
2 Full Baths
1 Floors
2 Car Garage

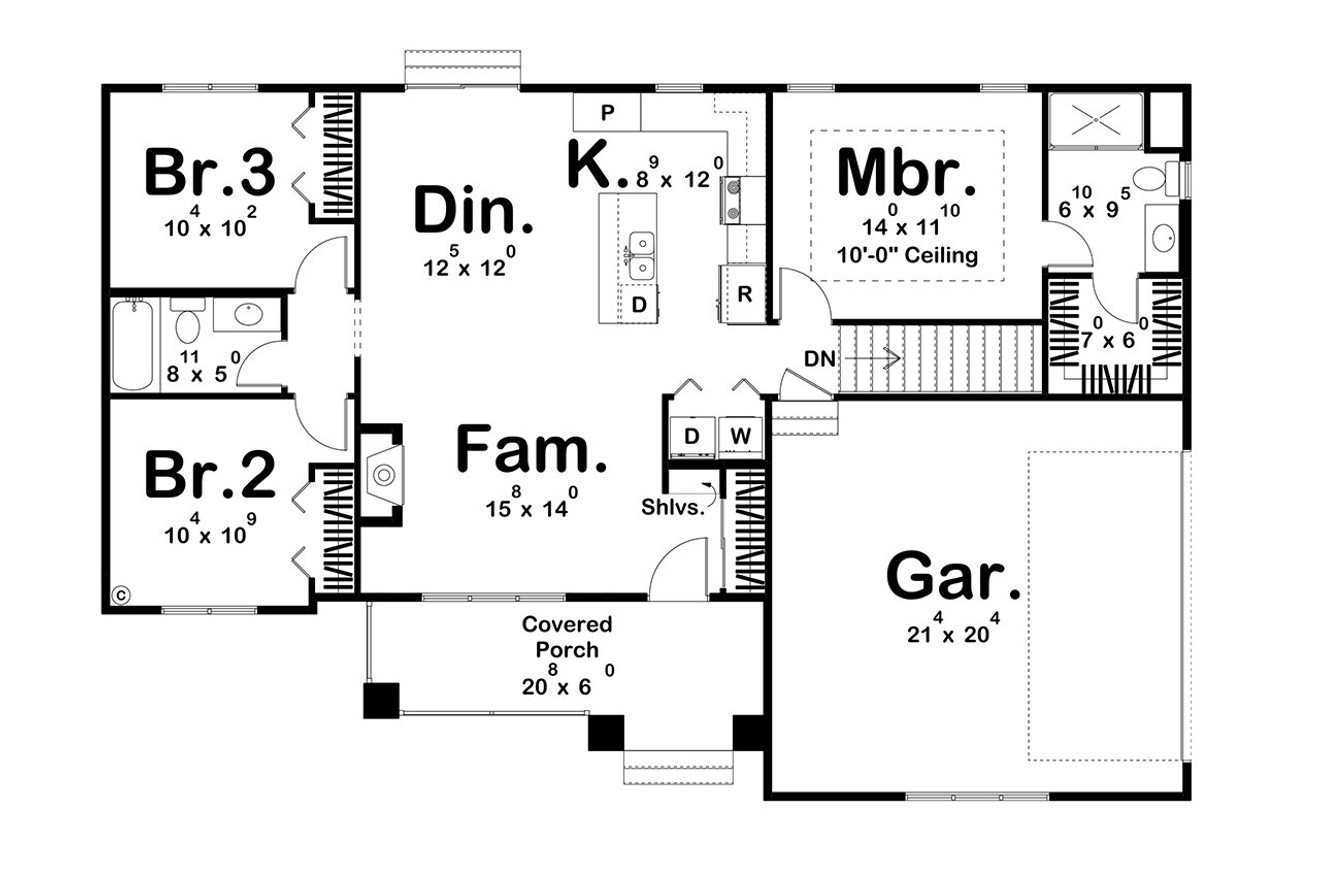

Floor plan

Free modification quote

Call Us 866-688-6970 or fill out our form.

Get Started

Cost to build report

How Much Will This Plan Cost To Build?

Find Out

Plan details

Basic Details

Building Details

Interior Details

Garage

What's Included in a Plan Set?

Each set of home plans that we offer will provide you with the necessary information to build the
home. There may be some adjustments necessary to the home plans or garage plans in order
to comply with your state or county building codes. The following list shows what is included
within each set of home plans that we sell.
Cover Sheet: Shows the front elevation often times in a 3D color rendering and typical notes
and requirements.
Exterior Elevations: Shows the front, rear and sides of the home including exterior materials,
details and measurements.
Foundation Plans: will include a basement, crawlspace or slab depending on what is available
for that home plan. The foundation plan details the layout and construction
of the foundation.
Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows,
stairways, etc. for each floor.
Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a
separate sheet to make the floor plans more legible.
Roof Plan.
Typical Wall Section, Stair Section, Cabinets.

New to Plan Buying?

What You Need to Know About Purchasing Plans

You are about to embark on an exciting process, enjoy it!

Here is what you need to know about purchasing house plans from HPC:

• Each designer and architect plans are created with their own unique style and content. Please be sure to read the "What's included in a Plan Set" tab, and if you don't see what you are looking for, be sure to give us a call.
• The designs are not engineered. Check with the building department where the structure is being constructed to find out if an engineer's review is required. We can help facilitate engineering for your plan if you are unable to find a local professional who can assist you.
• Your building department may also require a site plan of your lot be included with your submittal for a building permit. A local design

professional in your area should be able to help you with this as well as evaluating your chosen plan to make sure it meets the local building requirements for weather and seismic conditions.
• Please read and understand your licensing agreement. This will clearly define what you can and can not do with your construction documents.
• Electronic formats of packages sales (PDF & CAD Files) are final. Printed construction documents may be exchanged with an exchange fee within 30 days of purchase.
• Unless purchasing an additional build license (one time additional or multi-build additional) you may build the structure one time. Ownership of the construction documents can not be transferred or sold.
• Unless purchasing a printable package, you may not make additional copies of the plan without the permission of the designer.

Plan Packages Explained

Ready to purchase plans and unsure which construction package to choose? We hope the following can help you decide. Please note: Plan packages vary and may not be available on all plans.

1 Set Study Package

This is a single set of prints will allow you to completely review the plan, get accurate quotes for construction costs, and contemplate custom design changes you may wish to make. Study sets are marked Not For Construction and without the license necessary to legally build the home. Don't worry though, we allow a 100% upgrade credit towards a buildable licensed construction package within one year of your 1 Set Study Package purchase.

5 and 8 Set Print Packages

These are licensed print packages of the construction documents printed and shipped to you.

PDF Print Package

This PDF package is a non-modifiable, print only PDF file that saves time, gas, money, and paper! Many contractors and building jurisdictions are working with digital formats of the construction documents. The PDF print package allows for you or your contractor to distribute the construction documents to sub-contractors, use electronic submittals to apply for the building permit, and print the sets you need when you need them.

Plans Now

Don't wait - get your plans NOW! This digital plan package is a downloadable Print PDF Package (non-modifiable, print only). Includes a single build license - electronically signed and emailed to you immediately after placing your order - with permissions to make copies of the plan locally as needed.

PDF Master

An unlocked modifiable PDF file. Same conveniences as the PDF print package with the added benefit which allows your local professional to make engineering mark-ups or design changes using compatible software.

CAD Electronic Files

By using CAD compatible software that use .dwg or .dxf file formats enables you or a local professional to modify the construction documents and integrate those changes throughout the entire plan. Once the modifications or engineering is incorporated into your design, you can reproduce as many copies of the plan needed to build the structure.

Still unsure which package to choose? You may want to discuss this with your builder or give us a call.

How to Evaluate a Plan

When looking at plans, most often it's the exterior profile that will first grab your attention. You love the exterior, it's exactly what you envisioned, but what about the inside of the design? It's important to spend some time and digest the design's interior elements. Here are a few considerations to think about when evaluating if this is the right plan for you.

• First off, think about how you live in your home.
• Do you or your family prefer to have one or two places to gather all together, or do you prefer to have more private places within your home.
• Consider how you move through the home in your day to day life. Visually walk through the front door, what do you walk through or by? Do the same from your back door and garage entrances.
• Is your family life more formal or casual and do the living spaces of the design complement your lifestyle?
• Will your existing furniture fit within the spaces?
• If you have a family, do you want the master suite close to the secondary bedrooms or separated?
• Do you entertain? Are there elements within the floor plan that allow for entertaining with ease?
• How do you take care of laundry? Would you prefer the laundry room to be close by the kitchen, garage, or close to the bedrooms?
• Storage space? Is there enough?
• Consider your access to the outside? Do you want to extend your indoor living to the outside? Is there adequate porches or patios for how you want to enjoy your yard? Where will you place your grill or patio furniture?
• The view? What are you going to see when you look out your windows? Need more privacy or need more accessibility to a view?
• Make sure your garage will accommodate your cars, RV, or boat. Adequate storage? Do you want or need a door to the exterior beyond the opening garage doors? Utility sink? Space for an additional refrigerator or freezer?
• Consider things about your current home/residence that you don't like. By pin pointing these areas of your current home that you don't care for, you can make sure they are addressed in the next.

After reviewing giving it careful consideration you may find that the plan would be perfect with a few design changes. HPC can certainly help you with that with our customization services.

The Customization Process

So you've found that almost perfect design, and find yourself saying, "if only". Whether it's changing the size of a room, adding space or features, or moving things around, we can help you take that almost perfect design and make it perfect for you.

It's exciting to create a plan to fit your exact needs and wants whether it's your home, garage or even a potential investment property.

When you locate your plan, select the "Get Started" button located on the plan detail page. Here you will be able to share with us the changes to the interior and/or the exterior of the design. You can even upload a sketch if you have one. Complete the necessary contact information and select "Submit Request".

HPC will then forward your request to a designer to evaluate your changes and provide a quote within two business days. HPC is a "true quote" plan website. That means HPC will not mark-up the modification quote, we want to help keep costs down for you!

Ellicott - 59569

Advanced House Plans

$0.00

(No reviews yet) Write a Review

SKU:: 201 - 30580
UPC:
Plan Number:: 59569
Date Added:: 07/23/2024
Date Modified:: 08/13/2024
Designer:: abby@advancedhouseplans.com
Designer Plan Title:: 30580
Plan SKU:: 30580
Plan Name:: Ellicott
Max Price:: 1700.00
Min Price:: 1200.00
Pricing Set Title:: 1100 - 1400 Sq Ft
Creation Date:: 07/2024
Structure Type:: Single Family
Square Footage: Total Living:: 1286
Square Footage: 1st Floor:: 1286
Square Footage: Garage:: 451
Square Footage: Covered Area:: 139
Floors:: 1
FLOORS_filter:: 1
Bedrooms:: 3
BEDROOMS_filter:: 3
Baths Full:: 2
FULL BATHROOMS_filter:: 2
Ridge Height:: 21'
Overall Exterior Depth:: 37
Overall Exterior Width:: 56.4
Main Floor Ceiling Height:: 9'
Available Foundations:: Crawl Space
Available Foundations:: Concrete Slab
Available Foundations:: Basement
Available Foundations:: Daylight/Walk-out Basement
Default Foundation:: Basement
Available Walls:: 2x4 Wood Frame
Available Walls:: 2x6 Wood Frame
Default Wall:: 2x4 Wood Frame
Ext Wall Material:: Batten Board, Lap Siding, Brick, Shingles
Lot Slope:: Level Lot
Lot Type:: Corner Lot
Roof Pitch:: 8/12
Primary Style:: Craftsman
Secondary Styles:: Traditional
Collections:: House Plans with Photos
Master Suite Features:: Main Floor Master Suite
Master Suite Features:: Separate From Other Bedrooms
Master Suite Features:: Shower Only
Master Suite Features:: Walk In Closet
Interior Features:: Casual or Open Style Living Room
Interior Features:: Family Room
Interior Features:: Fireplace/Wood Stove
Kitchen Features:: Breakfast Nook/Dining Area
Kitchen Features:: Eating Bar or Peninsula
Kitchen Features:: Kitchen Island
Kitchen Features:: Walk-In or Wall Pantry
Utility Room Features:: Close to Kitchen or Garage
Utility Room Features:: Main Floor Utility Room
Utility Room Features:: Close to Bedrooms
Garage Type:: Attached
Garage Orientation:: Side Entry
Garage Bays Min:: 2
Garage Bays Max:: 2
GARAGE BAYS_filter:: 2
Exterior & Porch Features:: Covered Porch
Collections:: 1 Story House Plans
Collections:: 3 Bedroom House Plans
Styles:: Craftsman House Plans
Styles:: Traditional House Plans
Collections:: Small House Plans
Collections:: New House Plans
Product Rank:: 362
Collections:: House Plans with Videos

Plan Description

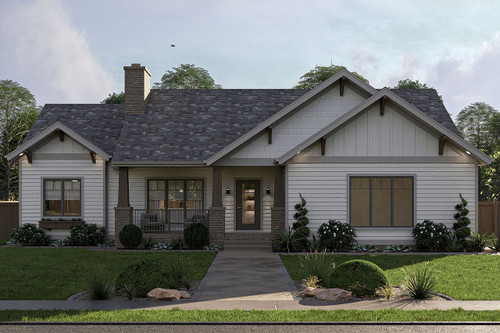

Welcome to the Ellicott, a quintessential Craftsman-style house plan that captures the charm and elegance of traditional design in a modern, single-story layout. This 1,286 square foot home perfectly balances form and function, making it an ideal choice for those seeking a comfortable and stylish living space.

As you approach the Ellicott, the inviting covered front porch greets you with its timeless appeal. It's the perfect spot for enjoying a quiet morning with a cup of coffee or unwinding in the evening as the sun sets. The porch's Craftsman detailing immediately sets the tone for the quality and craftsmanship found throughout the home.

Step inside, and you'll be welcomed into the open concept family room, a spacious and light-filled area that serves as the heart of the home. The family room features a cozy fireplace, creating a warm and inviting atmosphere that is perfect for relaxing on chilly nights. The room's design emphasizes openness and connectivity, seamlessly flowing into the dining area and kitchen.

The dining area is ideally situated to take advantage of both the family room's ambiance and the kitchen's convenience. Whether you're hosting a dinner party or enjoying a casual meal with family, this space is both versatile and functional. Large windows allow natural light to pour in, enhancing the room's bright and airy feel.

The kitchen, a chef's dream, is equipped with modern appliances and ample counter space, making meal preparation a pleasure. The layout is designed for efficiency, with everything you need within easy reach. The kitchen's stylish finishes and thoughtful design elements contribute to the home's overall aesthetic, creating a cohesive and attractive space.

The master bedroom is a private sanctuary, designed to offer comfort and tranquility. It features a generous walk-in closet, providing plenty of storage for clothing and accessories. The en-suite bathroom’s shower adds a touch of luxury to your daily routine. This master suite is a perfect retreat at the end of a long day, offering a peaceful space to relax and recharge.

Two additional bedrooms are located on the opposite side of the home, providing privacy and convenience for family members or guests. These rooms are well-sized and versatile, suitable for use as bedrooms, a home office, or a hobby room. They share a full-sized bathroom, which is beautifully appointed and easily accessible from both rooms.

One of the Ellicott's standout features is its side-entry two-car garage. This design not only enhances the home's curb appeal but also offers practical benefits, such as additional storage space and a convenient entry point. From the garage, you can easily access the home's main living areas, making it easy to unload groceries or other items.

Throughout the Ellicott, you'll find that every detail has been carefully considered to create a home that is both beautiful and functional. The Craftsman style is evident in the quality of the materials and the attention to detail, from the trim work to the finishes. This home is designed to be lived in and enjoyed, offering a perfect blend of tradition and modernity.

In conclusion, the Ellicott Craftsman-style house plan is a testament to timeless design and thoughtful planning. With its covered front porch, open concept family room, and serene master suite, it provides a welcoming and comfortable living space that is perfect for families, couples, or individuals. The Ellicott offers a harmonious blend of traditional charm and contemporary amenities, making it a home you will cherish for years to come. Experience the beauty and functionality of the Ellicott, and discover why it is the perfect place to create lasting memories.

Basement ceiling height is 9'
