Roof Pitches: 4/12, 8/12, & 12/12
Cover sheet with general construction specifications and instructions for customer’s structural engineer instructions

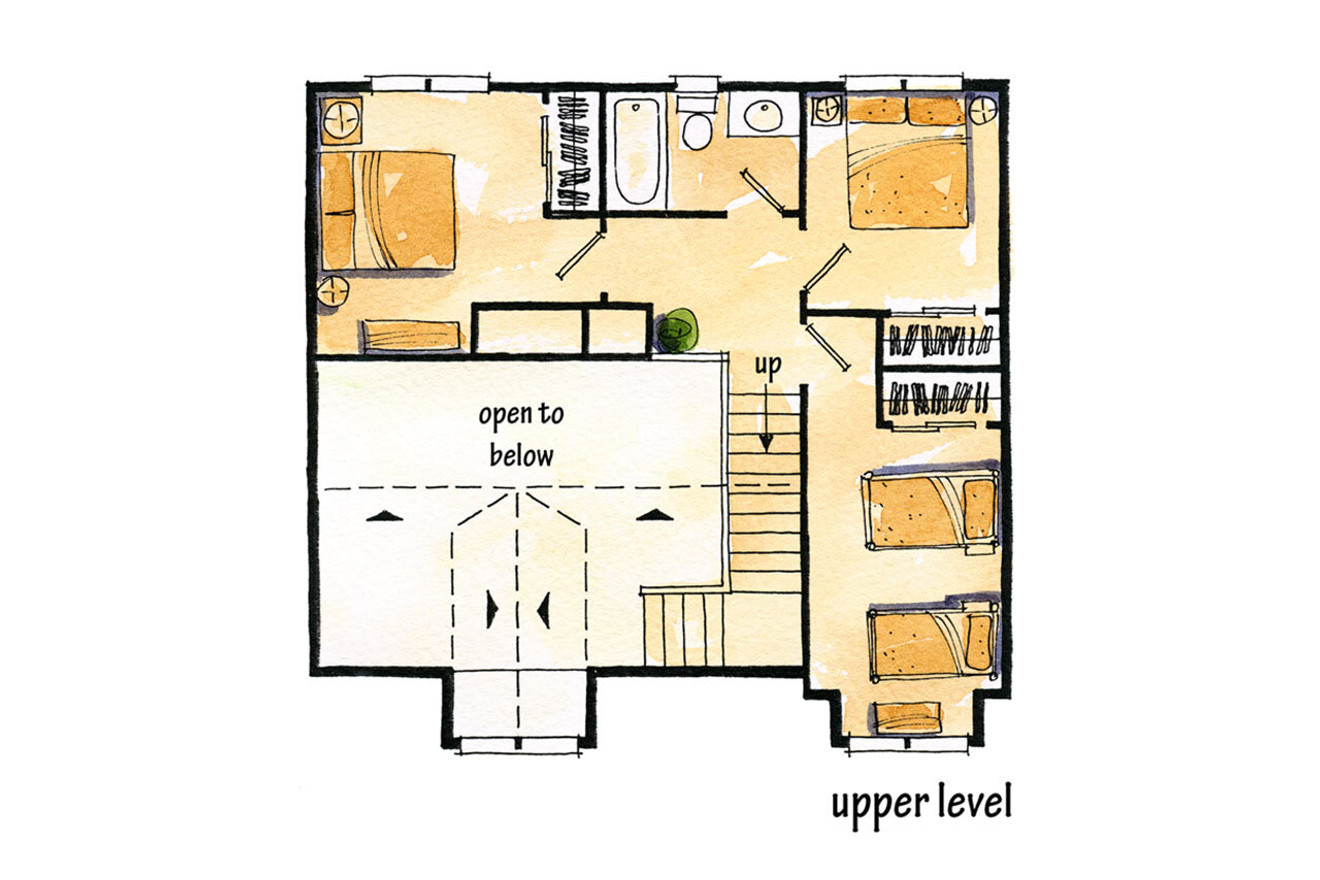

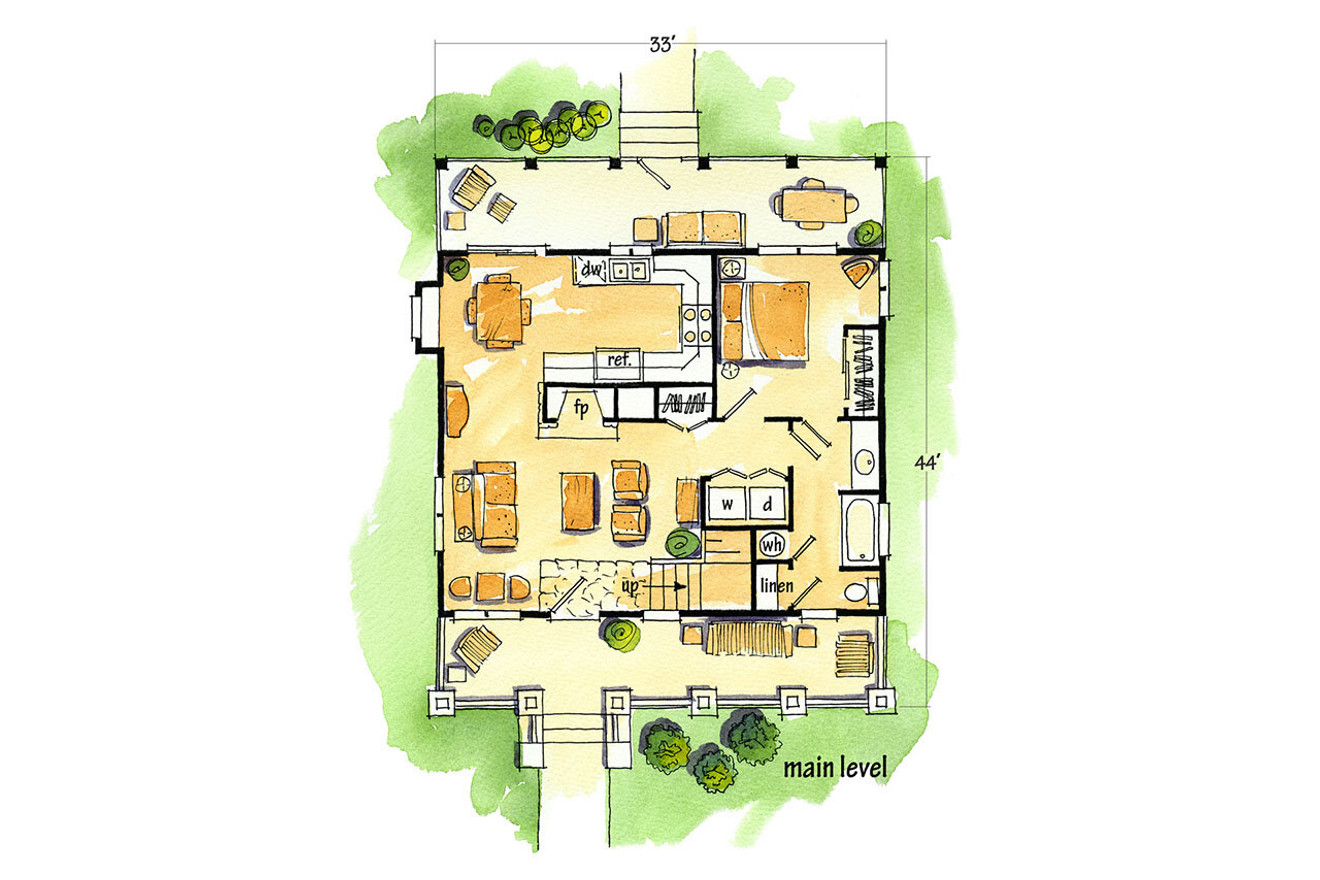

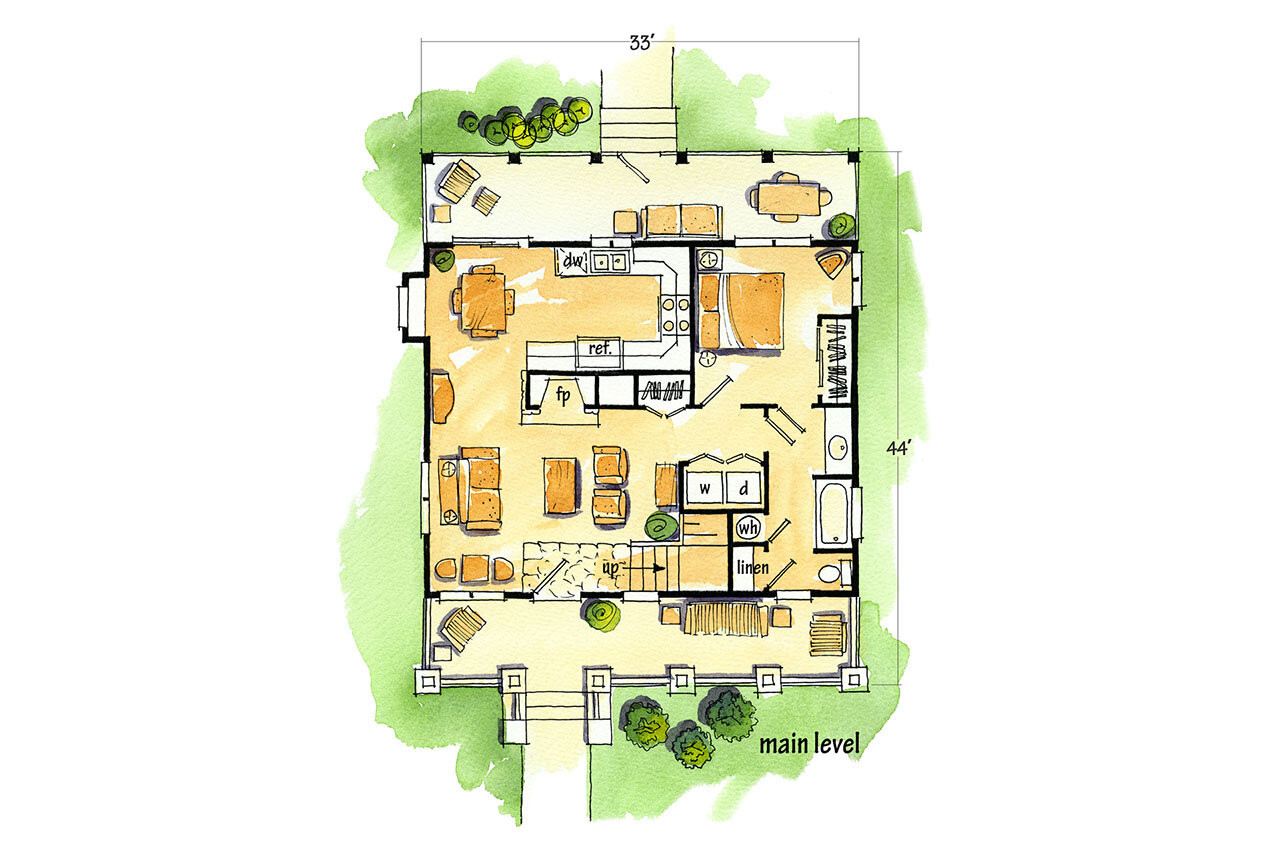

Floor plans at ¼" scale
All exterior elevations at ¼" scale
Roof plan at ¼" scale
Building sections at ¼" scale
Completed foundation plan at ¼" scale
Completed floor framing plan at ¼" scale
Completed roof framing at ¼ “scale
Building height designations at ¼" scale
Door and window schedules
Electrical layout and legend
Designations for all floor, wall and ceiling surfaces
Details for all ceiling treatments
Typical wall section with material and insulation designated
Typical details for timber, beam and connectors
Typical details for Simpson connector to all framing conditions
All square footage calculations
Energy compliant thermal envelope designations
New to plan buying?
Our Mt. Carmel house plan of 1234 square feet of very efficient and livable space provide flexible options for the homeowner. This very cost effective home has been built multiple times by our customers and works for different lifestyles and family sizes. The outdoor living possibilities provided by both front and rear covered porches are endless in scope. Our past clients that have become homeowners are very satisfied with their choice of out Mt. Carmel house plan.
At a Glance
