General Notes and specifications, Such As:
a) Designs Loads
d) Structural Steel
g) Other Misc. specs.
Front, Rear and Side Elevations @1/4” scale
Foundation plan (1/4” scale) indicating beam and column sizes along with lower level framing
Reinforced foundation and footing details
First & Second Floor plan (1/4” scale) includes all necessary framing information, window rough openings, beam sizes and framing details for specialized areas.
Stairs, sections, cabinet layouts, window flashing and miscellaneous details necessary for understanding of construction methods.
Roof plan (1/8”) indicating pitches and wall heights as well as truss profiles indicating hell heights and raised ceiling areas
Wall section indicating standard materials and detailing for typical wall construction.
a) Floor joists
b) Exterior wall framing
c) Wall heights
Roof framing is indicated as manufactured engineered roof trusses. Truss profiles are included.
New to plan buying?

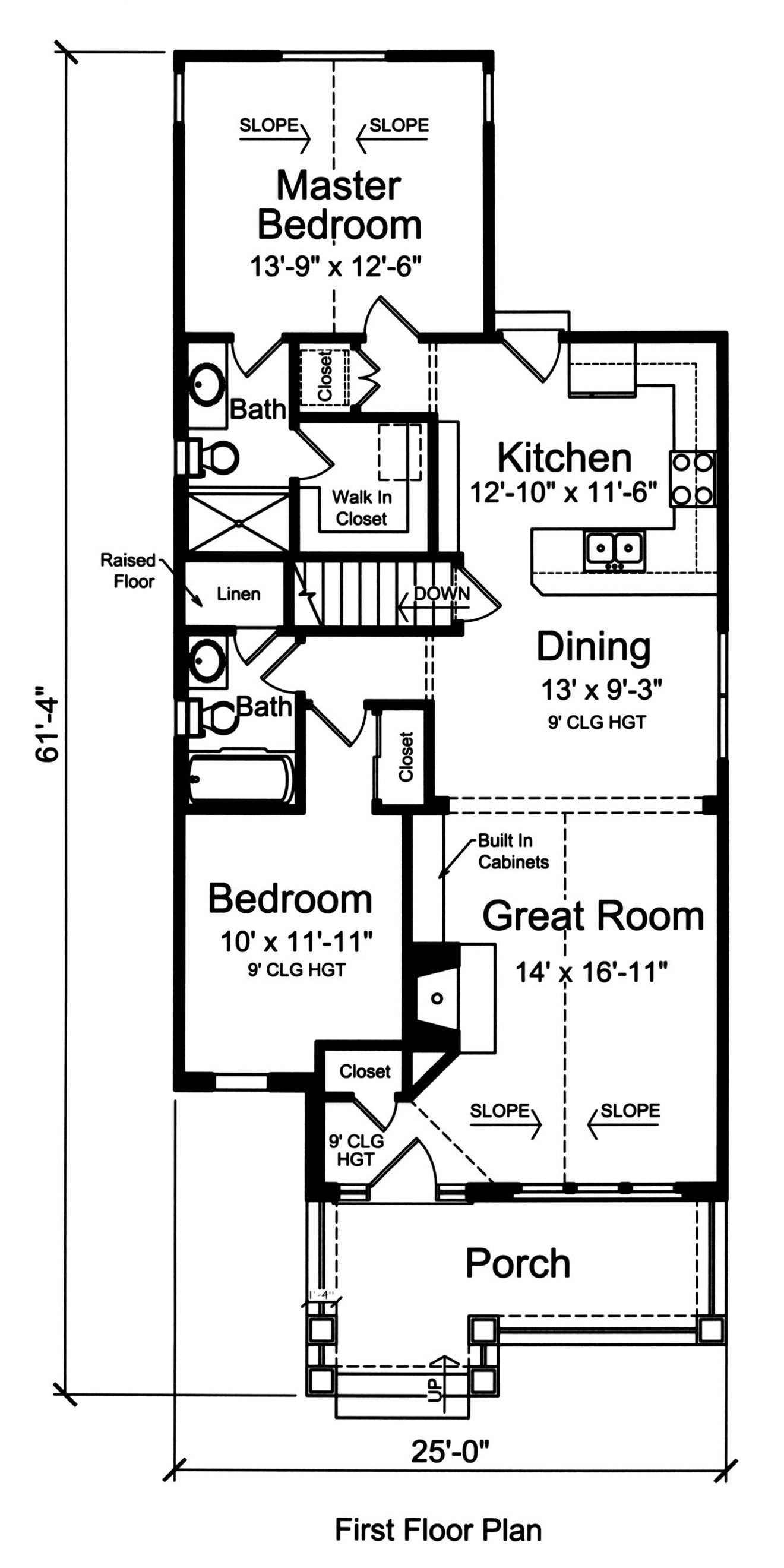

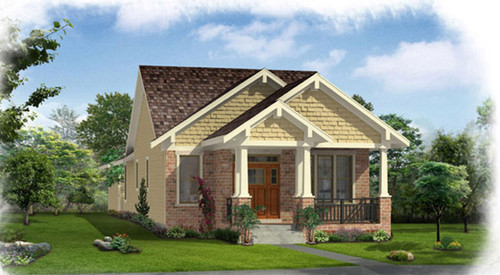

Brick and Stone exterior, a covered front porch and Craftsman elements create a cottage look to this 2- bedroom 1 level home plan. A sloped ceiling in the Master and Great Room combined with a gas fireplace to decorate the interior. A full basement is standard with this plan and offers space for additional square footage and a laundry room. A closet by the Master Bedroom provides space for a stacked washer and dryer if preferred. A detached garage plan with intereior measurements of 20 x 20 is provided with the house plans.
At a Glance
