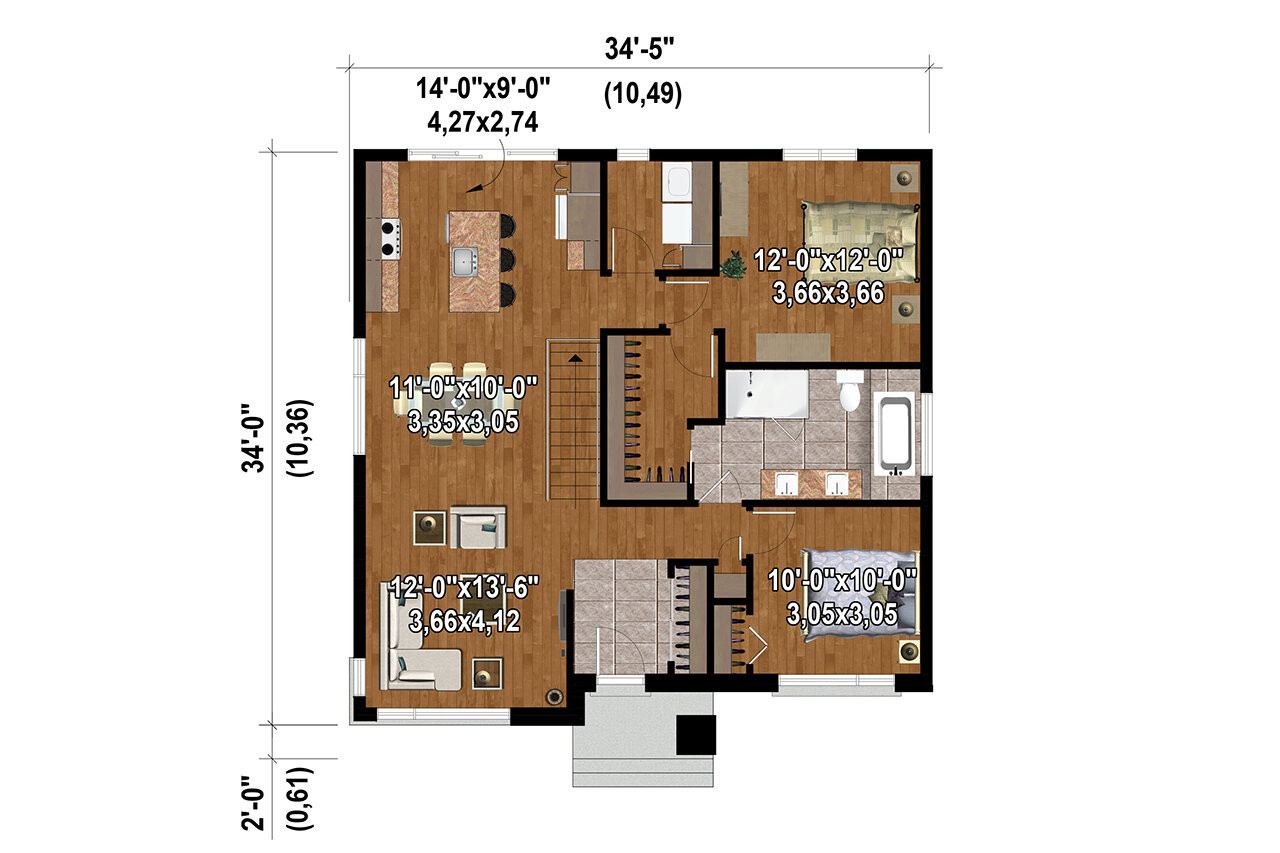

This beautiful single-story urban-style residence showcases a distinctive single-slope roof design. With dimensions of 34 feet in width and 34 feet in depth, it provides a comfortable living space spanning 1,115 square feet. The central area of the home embraces an open concept layout, encompassing the inviting living room, dining room, and a well-equipped kitchen with a spacious island capable of seating three individuals. Additionally, the home includes a bathroom complete with a generously-sized separate shower and tub, a laundry room, and two bedrooms.
Plan 31988
Photographs may show modifications made to plans. Copyright owned by designer.
- At a glance
- 1115 Square Feet
- 2 Bedrooms
- 1 Full Baths
- 1 Floors
- More about the plan
- Pricing
- Basic Details
- Building Details
- Interior Details
- Garage Details
- See All Details
Plan details
Basic Details
Building Details
Interior Details
Garage
What's Included in a Plan Set?
Artist's Rendering: An artist's drawing of the home, usually viewed from the front, and general construction notes.
Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, posts, ceiling heights, etc.
Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
Foundation Plan: Shows the location of all concrete footings, floor beams, posts, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details.
Floor Framing Plan (if any): Shows location and spacing of floor joists and supporting walls or beams and posts. Framing plans are integrated in each floor plan.
Roof Plan: Shows roof outlines.
Section & Details: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation. Engineered trusses, beams, roof framing details, etc. Specific construction and insulation details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
New to Plan Buying?
31988
Plan Image
$0.00
- SKU:
- 149 - 12731
- Plan Number:
- 31988
- Date Added:
- 05/24/2023
- Date Modified:
- 04/10/2024
- Designer:
- commandes@planimage.com, Philippe.auclair@planimage.com
- Designer Plan Title:
- 12731
- Plan SKU:
- 12731
- Pricing Set Title:
- (BB) 1101 - 1300
- Structure Type:
- Single Family
- Square Footage: Total Living:
- 1115
- Square Footage: 1st Floor:
- 1115
- Floors:
- 1
- FLOORS_filter:
- 1
- Bedrooms:
- 2
- BEDROOMS_filter:
- 2
- Baths Full:
- 1
- FULL BATHROOMS_filter:
- 1
- Ridge Height:
- 24'
- Overall Exterior Depth:
- 34
- Overall Exterior Width:
- 34
- Main Floor Ceiling Height:
- 9'
- Available Foundations:
- Basement
- Default Foundation:
- Basement
- Available Walls:
- 2x6 Wood Frame
- Default Wall:
- 2x6 Wood Frame
- Ext Wall Material:
- Siding/Brick/Stone
- Lot Slope:
- Level Lot
- Lot Type:
- Narrow Lot (
- Roof Pitch:
- 3/12
- Primary Style:
- Contemporary
- Secondary Styles:
- Modern
- Master Suite Features:
- Main Floor Master Suite
- Master Suite Features:
- Walk In Closet
- Interior Features:
- Casual or Open Style Living Room
- Kitchen Features:
- Breakfast Nook/Dining Area
- Kitchen Features:
- Kitchen Island
- Kitchen Features:
- Walk-In or Wall Pantry
- Utility Room Features:
- Close to Bedrooms
- Utility Room Features:
- Main Floor Utility Room
- Utility Room Features:
- Close to Kitchen or Garage
- Exterior & Porch Features:
- Covered Porch
- Collections:
- 1 Story House Plans
- Styles:
- Contemporary House Plans
- Styles:
- Modern House Plans
- Collections:
- Narrow Lot House Plans
- Collections:
- Small House Plans
- Product Rank:
- 6247
- Collections:
- House Plans with Videos
- Max Price:
- 1860.00
- Min Price:
- 840.00
