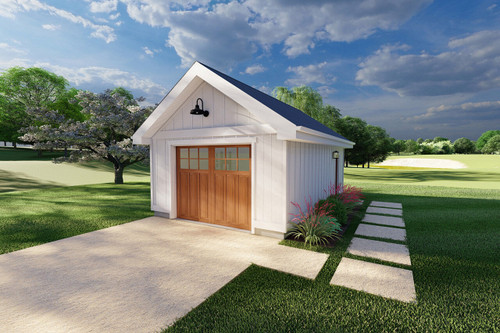

This single car garage plan provides enough room to comfortably park a truck, ensuring that larger vehicles can fit with ease. In addition, the design allows for ample storage space, making it practical for homeowners who need additional room for tools, equipment, or seasonal items. The garage boasts nine foot high ceilings, creating a sense of openness and allowing for easier movement and storage of taller items. The garage door measures ten feet wide by eight feet high, making it convenient for vehicles of various sizes to enter and exit without difficulty. With a classic farmhouse aesthetic, this garage plan is both economical and attractive. The timeless design ensures that the garage complements a variety of home styles while remaining cost-effective for construction and maintenance.
Plan 49744
Photographs may show modifications made to plans. Copyright owned by designer.
- At a glance
-
416
Square Feet
-
1
Floors
-
1
Car Garage
- More about the plan
- Pricing
- Basic Details
- Building Details
- Interior Details
- Garage Details
- See All Details
Contact HPC Experts
Have questions? Help from our plan experts
is just a click away.
To help us answer your questions promptly, please copy and paste the following information in the fields below.
Let’s be social
Connect with us for the latest from HPC
Plan details
Basic Details
Building Details
Interior Details
Garage
What's Included in a Plan Set?
Each plan set is drawn at 1/4"=1' scale and includes the following drawings:
• Artist's Rendering: An artist's drawing of the home, usually viewed from the front, and general construction notes.
• Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
• Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing
fixtures, beams, ceiling heights, etc.
• Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and
details.
• Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is
a basement, a basement plan is included which shows all basement details.
• Floor Framing Plan (if any): Shows location and spacing of floor joists and supporting walls or beams.
• Roof Framing Plan: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc.
• Section & Details: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation,
and foundation. Specific details such as fireplaces, stairways, decks, etc. are drawn at 1/2" = 1' scale, and appear as needed
throughout the prints.
• Electrical Plan: A schematic layout of all lighting, switches and electrical outlets.
New to Plan Buying?
49744
Wesplan Building Design
$495.00
- SKU:
- 265 - 580416
- Plan Number:
- 49744
- Date Added:
- 02/23/2026
- Date Modified:
- 03/26/2026
- Designer:
- amm@westhomeplanners.com
- Designer Plan Title:
- 580416
- Plan SKU:
- 580416
- Max Price:
- 995.00
- Min Price:
- 495.00
- Pricing Set Title:
- Prefix 19/20 - EE [Garage 1 Car]
- Structure Type:
- Garage
- Square Footage: Total Living:
- 416
- Square Footage: Garage:
- 416
- Floors:
- 1
- FLOORS_filter:
- 1
- Ridge Height:
- 15'6"
- Overall Exterior Depth:
- 26
- Overall Exterior Width:
- 16
- Main Floor Ceiling Height:
- 9'4"
- Available Foundations:
- Concrete Slab
- Default Foundation:
- Concrete Slab
- Available Walls:
- 2x4 Wood Frame
- Available Walls:
- 2x6 Wood Frame
- Default Wall:
- 2x6 Wood Frame
- Ext Wall Material:
- Siding
- Lot Slope:
- Level Lot
- Roof Framing:
- Truss
- Snow Roof Load:
- 55.00
- Roof Pitch:
- 8/12
- Primary Style:
- Farmhouse
- Secondary Styles:
- Craftsman
- Garage Overall Depth:
- 26'
- Garage Overall Width:
- 16'
- Garage Ridge Height:
- 15'6"
- Garage Type:
- Detached
- Garage Orientation:
- Front Entry
- Garage Bays Min:
- 1
- Garage Bays Max:
- 1
- GARAGE BAYS_filter:
- 1
- Collections:
- 1 Story House Plans
- Styles:
- Craftsman House Plans
- Collections:
- House Plans with Detached Garage
- Collections:
- Garage, Garage w/Living, Carports
- Collections:
- Small House Plans
- Styles:
- Farmhouse Plans
- Regions:
- Canadian House Plans/British Columbia Home Plans
- Product Rank:
- 134
