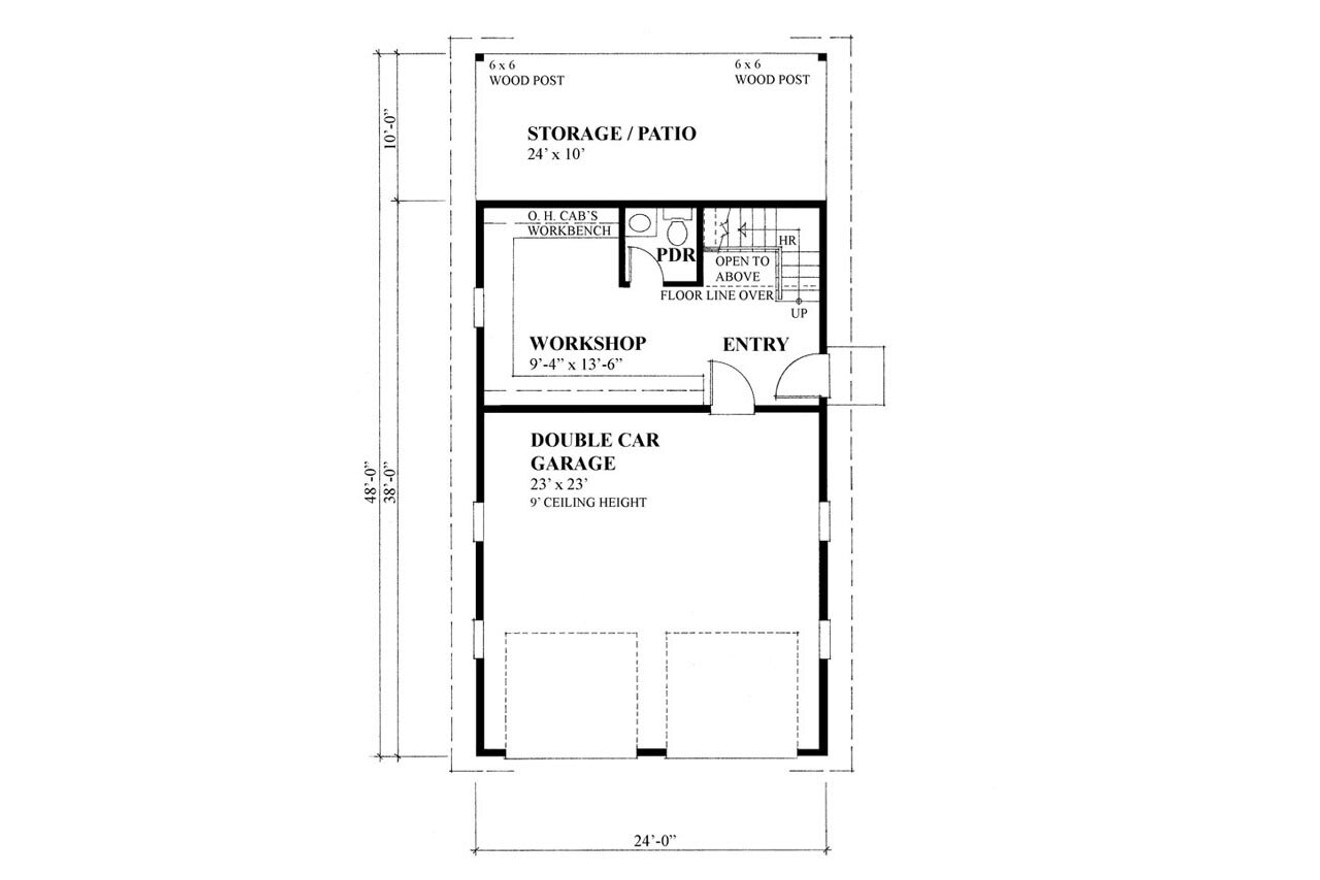

The first level garage and workshop have a nine-foot ceiling height while the second level side walls start at 4'-6" and the ceiling slopes up to eight feet. Access to the double car garage is through two nine feet wide by eight feet high overhead garage doors. At the rear, behind the workshop, is a large covered exterior storage space. The unfinished, second level loft with vaulted ceilings is undeveloped, ready for your personalization of this area. The loft boasts eight skylights to make this a very bright and usable multipurpose space.
Plan 10198
Photographs may show modifications made to plans. Copyright owned by designer.
- At a glance
-
1035 Square Feet
-
1 Floors
-
2 Car Garage
- More about the plan
- Pricing
- Basic Details
- Building Details
- Interior Details
- Garage Details
- See All Details
Plan details
Basic Details
Building Details
Interior Details
Garage
What's Included in a Plan Set?
Cover sheet with rendering and art floor plans.
General notes and specifications.
Site plan at 1/8″=1′-0″ or 1/4″= 1′-0″.
Foundation plan at 1/4″=1′-0″. (Some plans have foundation options, client to specify at time of order.)
Main floor plan at 1/4″=1′-0″.
Second floor plan at 1/4″=1′-0″, if applicable.
Structural floor / roof information indicated either on the floor plans or separate framing plans for complicated designs.
Electrical floor plans.
Minimum of two cross sections at 1/4″=1′-0″.
Details as required.
All four elevations at 1/4″=1′-0″.
Generic detail sheet.
Plans are engineered by a structural engineer, but not stamped or sealed.
Ground snow load 40 psf. (or composite roof live load 32 psf, dead load 10 psf for total roof design load 42 psf)Floor live load 40 psf.
Balcony live load 60 psf and dead load 10 psf for total design load of 70 psf.
Assumed soil bearing capacity 1560 psf.
Electrical fixtures / switches / smoke alarms by location only on floor plans.
Plumbing fixtures by location only on floor plans.
Windows are called out as generic nominal sizes on floor plans, opening directions indicated on elevations.
Items not included with plans:
Interior cabinet elevations.
Window schedules.
Situations beyond the scope of these drawings and issues which can be handled locally:
Unusual site conditions, High wind speeds. Seismic, shear walls, holddowns, nailing patterns and Local Energy Code compliance.
New to Plan Buying?
10198
Regan Swallow
$545.00
- SKU:
- 126 - Plan 912
- Plan Number:
- 10198
- Pricing Set Title:
- Plan 912
- Designer Plan Title:
- Plan 912
- Date Added:
- 05/30/2019
- Date Modified:
- 01/31/2024
- Designer:
- homes@reganswallowdesign.com
- Family Plan:
- Plan 865
- Structure Type:
- Garage
- Best Seller (Rank #):
- 10000
- Square Footage: Total Living:
- 1035
- Square Footage: Garage:
- 576
- Square Footage: 1st Floor:
- 336
- Square Footage: 2nd Floor:
- 699
- Square Footage: Storage:
- 240
- Floors:
- 1
- FLOORS_filter:
- 1
- Baths Half:
- 1
- HALF BATHROOMS_filter:
- 1
- Ridge Height:
- 23'2"
- Overall Exterior Depth:
- 48
- Overall Exterior Width:
- 24
- Main Floor Ceiling Height:
- 9'
- Second Floor Ceiling Height:
- 8'
- Available Foundations:
- Concrete Slab
- Default Foundation:
- Concrete Slab
- Available Walls:
- 2x6 Wood Frame
- Default Wall:
- 2x6 Wood Frame
- Ext Wall Material:
- Paneling
- Lot Slope:
- Level Lot
- Roof Framing:
- Truss
- Snow Roof Load:
- 47.00
- Roof Pitch:
- 12/12
- Primary Style:
- Craftsman
- Garage Bays Min:
- 2
- Garage Bays Max:
- 2
- GARAGE BAYS_filter:
- 2
- Garage Features:
- Recreation Room
- Garage Features:
- Storage
- Garage Features:
- Workshop or Workbench
- Exterior & Porch Features:
- Covered Patio
- Collections:
- 1 Story House Plans
- Styles:
- Craftsman House Plans
- Collections:
- Garage, Garage w/Living, Carports
- Collections:
- Small House Plans
- Product Rank:
- 3129
- Plan SKU:
- Plan 912
- Max Price:
- 545.00
- Min Price:
- 545.00
- Regions:
- Canadian House Plans/British Columbia Home Plans
